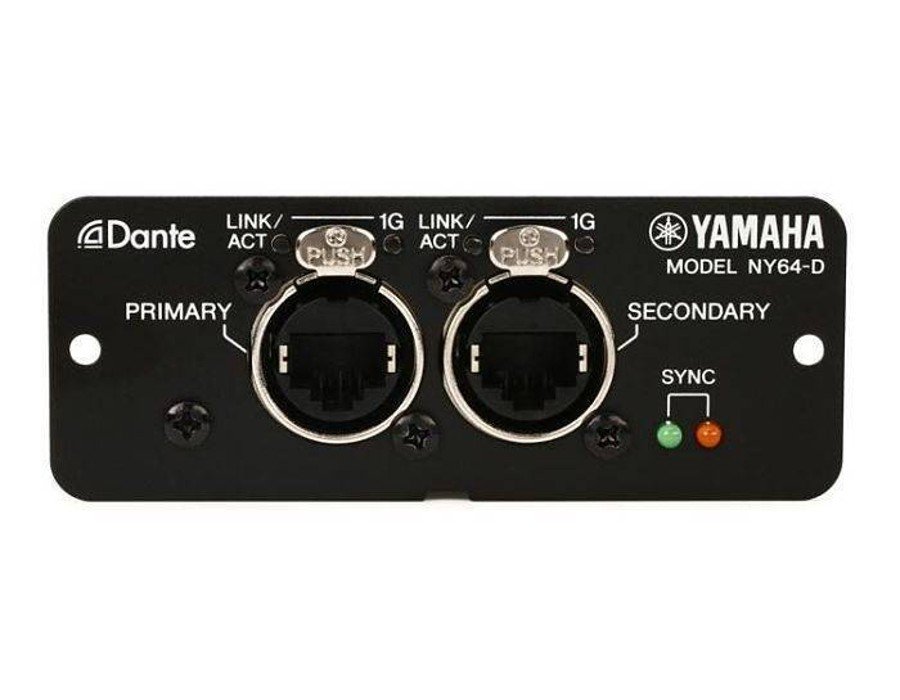

Yamaha NY64D
Yamaha NY64D Dante expansion card for mixers
Dante expansion card for TF mixers I / O expansion card for TF series consoles. Enables transmission and reception of up to 128 channels (64 in / 64 out) of uncompressed 48-bit 24 kHz digital audio data over a Dante audio network.
Used in conjunction with the Tio1608-DI / O, it is possible to create a versatile stage box system with up to 48 inputs and 24 outputs.
The NY64-D is an I/O expansion card for TF series consoles that allows transmission and reception of up to 128 channels (64 in/64 out) of uncompressed 48 kHz 24 bit digital audio data via a Dante™ audio network.
The NY64-D is an I/O expansion card for TF series consoles that allows transmission and reception of up to 128 channels (64 in/64 out) of uncompressed 48 kHz 24 bit digital audio data via a Dante™ audio network. Used in conjunction with the Tio1608-D I/O it becomes possible to create a versatile stage box system with up to 48 inputs and 24 outputs.
- Sampling frequency rate: External 44.1 kHz or 48 kHz: + 4.1667%, + 0.1%, -0.1%, -4.0% (± 200 ppm)
- Dimensions
- W: 100mm (3-7 / 8 «)
- H: 39 mm (1-4 / 8 «)
- D: 133 mm (5-2 / 8 «)
- Net Weight: 0.2kg (0.4kg)
- Accessories: Owner’s Manual
- Others: Temperature range: 0 – 40 ℃, Storage temperature: -20 – 60 ℃
- Digital Input and Output Characteristics
- Terminal: Primary Secondary
- Format: Dante
- Data length: 24 bits or 32 bits
- Level: 1000Base-T
- Audio:
- 64 channels (NY64-D to other devices)
- 64 channels (Other legacies to NY64-D)
- Connector: Cat5e Ethercon
