Yamaha DZR315

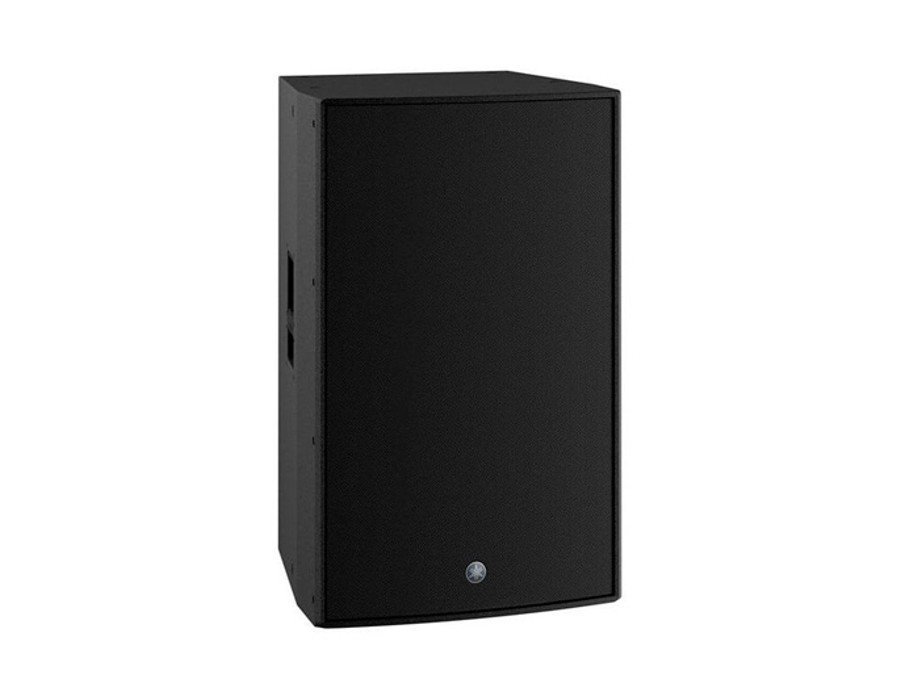

Yamaha DZR315 Powered Loudspeaker
The DZR315 is a 3-way bi-amped powered loudspeaker and is the most powerful model in the DZR series producing a maximum SPL of 143dB with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction – the DZR315 delivers truly professional sound on all fronts with a power level that contrasts with its compact and lightweight design. Ideal for use in a main PA in the front of the house, it also includes integrated M10 mounting points for suspended applications.
- 3-way loudspeaker with a 2 «HF, an 8» MF and a 15 «LF
- 143dB SPL and 31Hz-20kHz maximum frequency range is ideal for FOH main PA
- High Power 2000W Class D Amplifier Module
- 96 kHz DSP and FIR filter for true high resolution sound with super low latency
- Features advanced FIR-X tuning, the combination of the FIR filter and the correct EQ to reduce phase distortion
- Access a variety of DSP functions and load presets, make fine adjustments to PEQ, delay and routing, and more. via intuitive LCD display
- D-Contour and highly reliable protection circuits.
- Lightweight yet highly durable plywood cabinet with premium grade polyurea coating
- Optional speaker cover (SPCVR-DZR315)
sophisticated DSP processing and unmatched low-frequency sound reproduction. The DZR315 works on all fronts creating truly professional sound, reproduced with a level of power that belies its compact and lightweight design. Ideal for use in a main PA in the room (FOH), it also includes integrated M10 mounting points for suspended applications.
Active 3-way loudspeaker with 2 ”HF (treble), at 8” MF (mid) and at 15 ”” LF (bass) drivers
The maximum frequency range of 143dB SPL and 31Hz-20kHz is ideal for main room PA (FOH – Front of house)
2000W High Power Class D Amplifier Module
96kHz DSP and FIR filter for true high-resolution sound with very low latency
Features advanced FIR-X tuning technology, the combination of FIR filtering and the correct EQ to minimize phase distortion
Access a variety of DSP functions and load presets, or make fine adjustments to PEQ, delay and routing, etc. via the intuitive LCD screen
D-Contour and highly reliable protection circuits.
Lightweight yet very strong plywood with premium grade polyurea coating
Optional speaker cover (SPCVR-DZR315)
Rugged black or white finish
96kHz DSP processors help drive the DZR’s considerable power output into high-resolution sound with super-low latency. The advanced FIR-X technology, recently developed by Yamaha, significantly enhances our proprietary FIR-X tuning technology that uses linear phase FIR filters for the correct crossover network and equalization. With FIR filters, we can produce a very smooth frequency response with amazing clarity and a sound image without phase distortion. EQ filtering is also provided, for fine tuning that achieves ideal clarity and best-in-class SPL without signal degradation.
A built-in LCD screen allows users to easily navigate the variety of DSP functions, load presets (presets), and make fine adjustments to PEQ, delay, and routing. Store up to 8 user presets to save your own parameter settings, or use dedicated factory presets optimized to use the DZR and DXS XLF series in combination. Users can easily transfer saved settings to USB flash drive. D-CONTOUR is a smart multi-band compressor, ensuring that the sound from your DZR is consistent and clear no matter how high the volume is. By constantly monitoring the output of multiple frequency bands and applying the optimal EQ settings for each.
