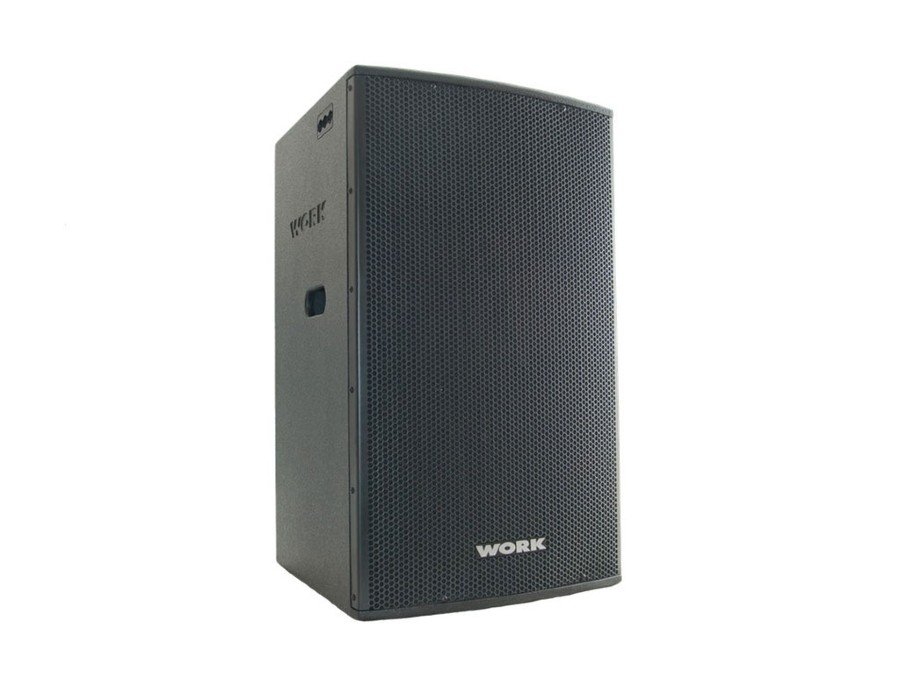

Work Pro MINO 12 A PRO
Configuration: 650W + 150W @ 8ohm (EIAJ).
Amplifier class: Class D (Bass), Class AB (Treble).

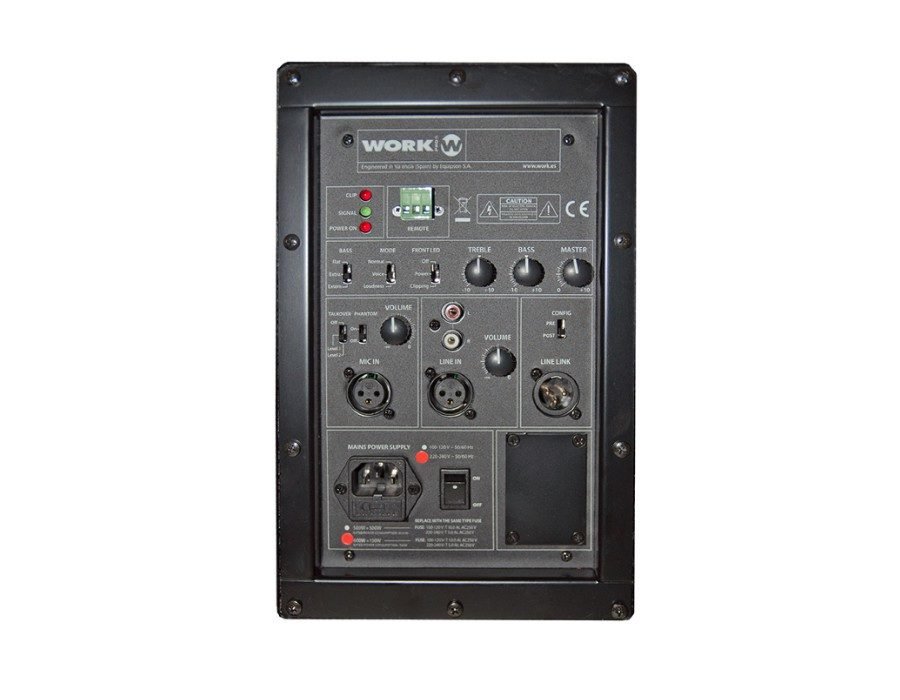

Input connectors: XLR3 (MIC) / XLR3-RCA (LINE).
Input impedance: 10kohm.
Gain (class D ampl. / class AB): 32-36 dB.
S / N ratio (class D ampl. / class AB): >95 dB/A.
Slew rate (8ohm): 1,5 V/uS.
Frequency response (class D ampl. / class AB): 15 Hz – 20 kHz /10 Hz – 50 kHz.
Damping factor (class D ampl. / class AB): 100Hz>400 – 1kHz>180.
Power supply: 100-120/220-240V AC 50/60Hz.
Dimensions: 395 x 610 x 377 mm.
Weight: 31.3 kg.
