Turbosound TCX122

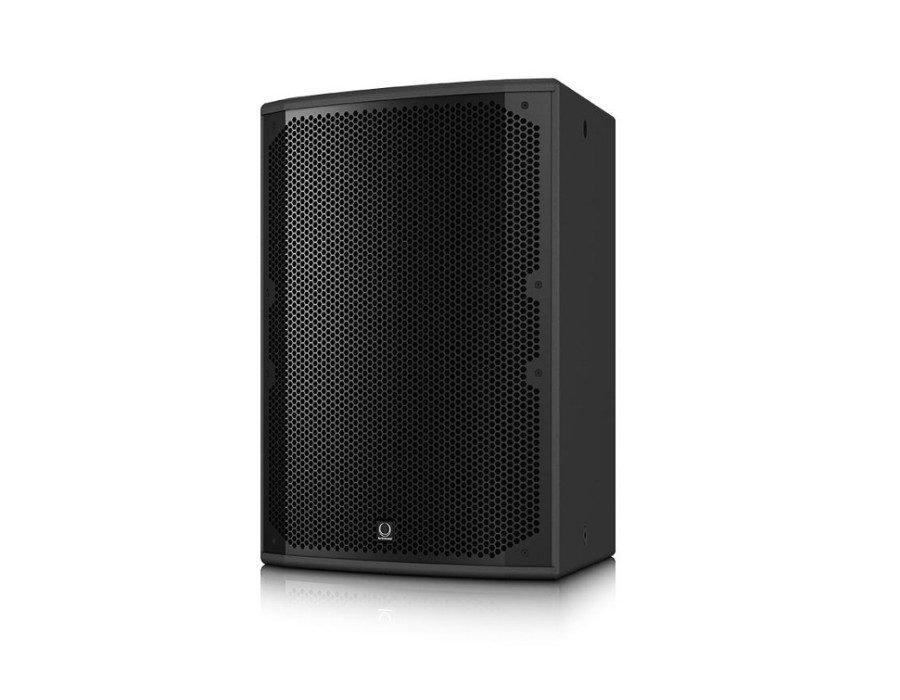

Turbosound TCX122 Loudspeaker
DUBLIN TCX122 2 Way 12″ Loudspeaker for Portable PA and Installation Applications
The DUBLIN TCX122 is a 1200 Watt compact 12″ passive two way loudspeaker that is ideally suited for a wide range of portable or installed speech and music sound reinforcement applications.
The DUBLIN TCX122 is a 1,200 Watt compact 12″ passive two way loudspeaker that is ideally suited for a wide range of portable or installed speech and music sound reinforcement applications. TCX122 consists of a trapezoidal enclosure housing a high excursion 12″ reflex-loaded low frequency driver with low mass voice coil for improved transient response, and a 1″ high temperature dome compression driver mounted on a rotatable converging elliptical waveguide, which provides a 90° horizontal by 60° vertical dispersion pattern.
TURBOSOUND is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers.
The TCX122s compression driver is mated to a converging elliptical waveguide that is rotatable through 90°, allowing a swap of the horizontal and vertical dispersion patterns for a smooth wavefront, while providing exceptional pattern control.
Constructed from 15 mm (5?8″) birch plywood, the cabinet is finished in hard wearing semi matt black textured paint and includes internal M10, M8 and M6 threaded rigging points for use with TURBOSOUND and industry standard wall and ceiling brackets.

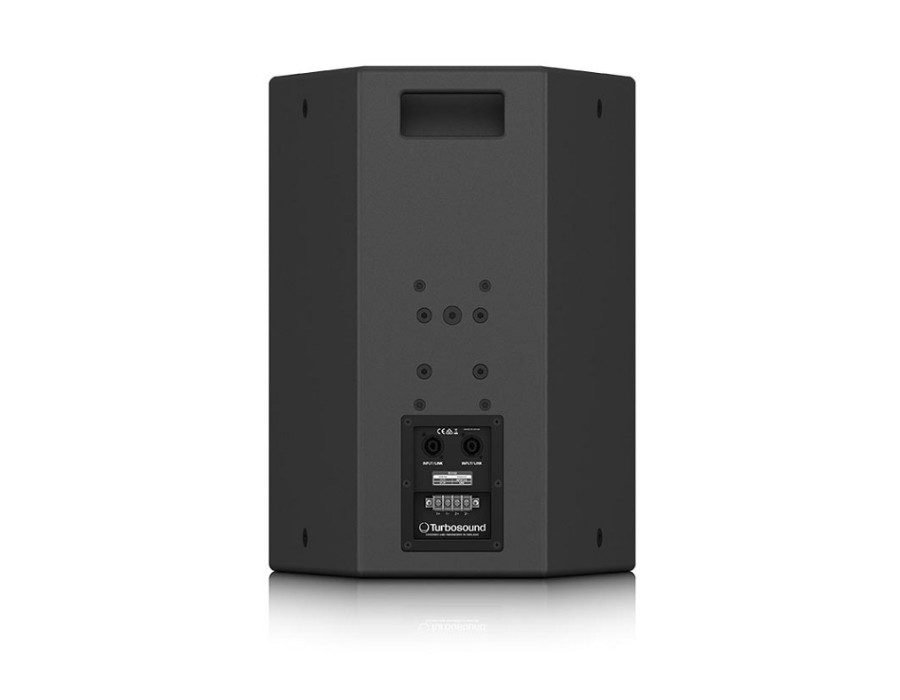

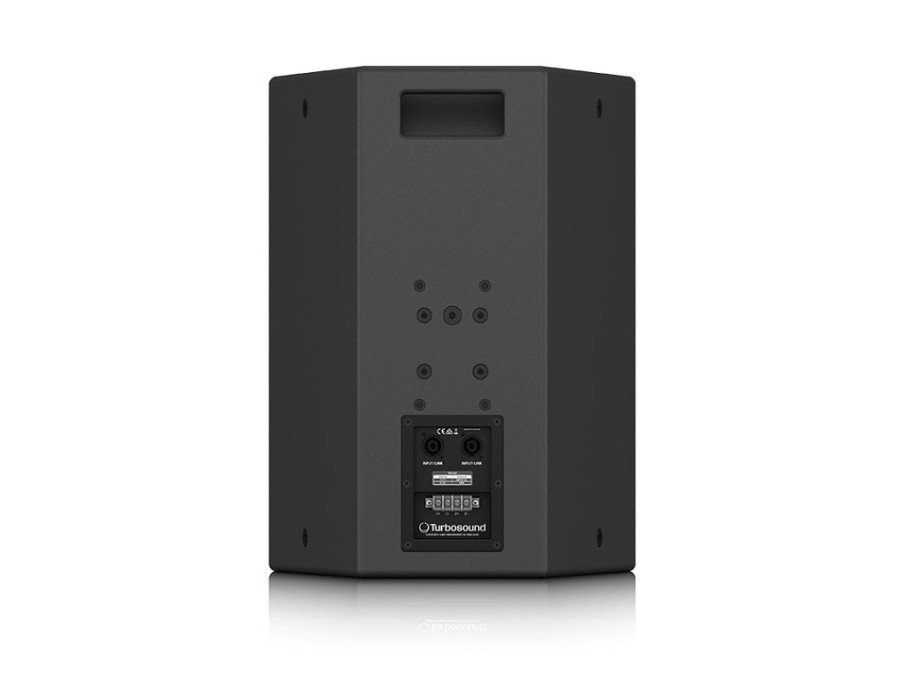

When permanently installed, the TCX122 presents a discreet appearance with no visible side handles for visually unobtrusive loudspeaker arrays, while in portable applications the pole mount blanking plug can be removed for use with speaker stands or poles.
