TOA M-41S
TOA M-41S

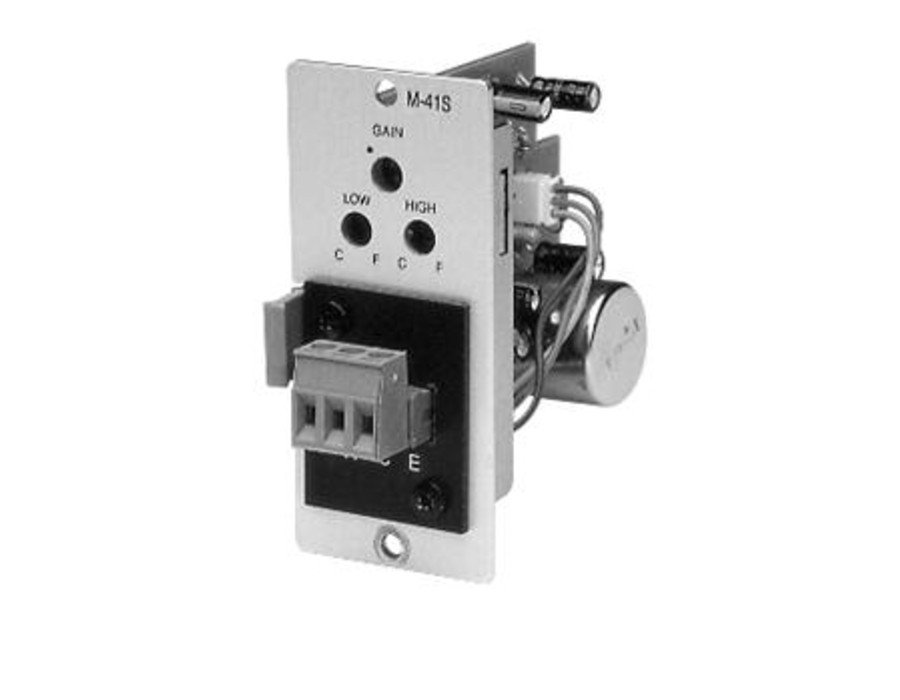

The M-41S is a microphone module to be used in conjunction with the 900 series or AX-1000 amplifier.The M-41S has a phantom power supply and a 600 Ω balanced input. The module also has a voice-activated muting control output.
Controls/Functions:
Gain Control
High and Low Cut Filters
Mute Send Sensitivity
Phantom Power
Performance Input: 600 tb
Input Sensitivity: -70 ~ -50 dBu
Gain (Adjustable): 32 ~ 52 dB
Maximum Input: -14 dB
Signal to Noise (S/N): -126 dBu (EIN 200 Ohm)
Physical Connector:Removable Terminal Block
