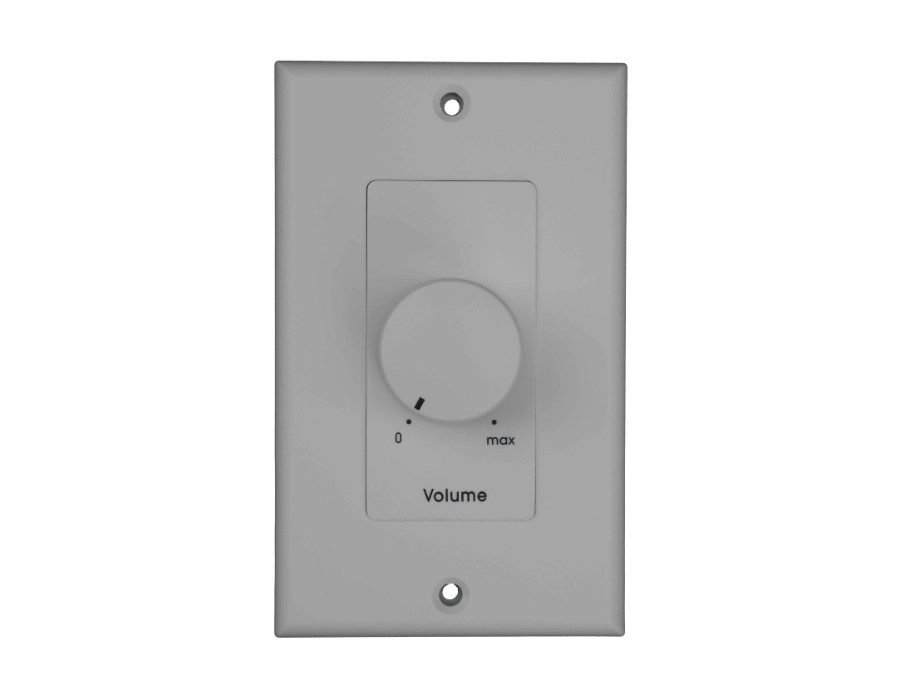

TOA AT-100EMG
TOA AT-100EMG
AT-100EMG volume control attenuator provides precise level adjustment of single or multiple speaker lines. Available in 100W with a Decora-style wall plate. AT-100EMG is equipped 3 with a 24 VDC @ 15mA relay for applications that require emergency and paging signals to bypass/override the attenuator.
- Input Capacity: 100W
- Attenuation: 13 steps (0dB, -3dB, -6dB, -9dB, -12dB, -15dB, -18dB, -21dB, -24dB, -27dB, -30dB, -33dB, OFF)
- Wire Capacity: 14 guage
- Priority Relay: 24VDC@15mA
- Finish: White plate & sub-plate / Decora-style
- Dimensions: Plate Width 2.75″; Plate Height 4.5
