Tascam RC-W100

Tascam RC-W100

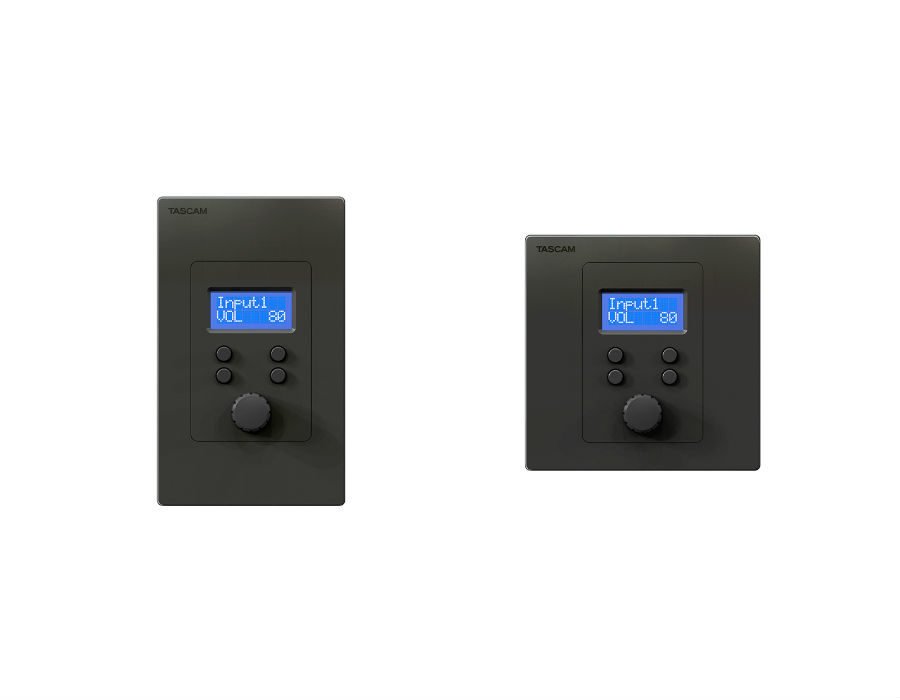

The RC-W100-R120 / RC-W100-R86 Wall Mount Controllers for the MX-8A 8 Input /8 Output Matrix Mixer with DSP. Designed for quick and easy operation in meeting rooms, lecture halls, stores, restaurants, and multipurpose spaces, the RC-W100-R120 / RC-W100-R86 Wall Mount Controllers incorporate an easy-to-read LCD display, one rotary encoder with a push switch, and four push button switches.

The two models address a variety of world markets, with the RC-W100-R120 designed for the U.S. and Japan, while the RC-W100-R86 is compatible with switch boxes in Europe.

* RC-W100-R120 and RC-W100-R86 are sold separately.

• Wall-mounted programmable controller for MX-8A
• Equipped with 1 encoder (with push switch) and 4 switches
• Enables switching sources and adjusting volume (including muting)
• Functions can be assigned to the encoder and the switches using TASCAM MX CONNECT
  Prevents end-users from making mistakes by assigning only necessary functions to the controller

• Easy-to-read display
  Name of the selected source and current volume can be checked
  Automatic backlight off function
• Daisy chaining of up to 8 units is possible using cables rated category 5e or higher (maximum length 200 m)
• • Power supply can be provided to the unit via MX-8A (RS-485)
    Reduces power construction and installation costs
  • Two different panel sizes are available
    RC-W100-R120 and RC-W100-R86 are sold separately
    • «RC-W100-R120» is compatible with switch boxes commonly used mainly in the US and Japan.
    • «RC-W100-R86» is compatible with switch boxes commonly used mainly in Europe.

  * The following updates are required to use «RC-W100».

  • «MX-8A» firmware update to V1.10 or higher
  • «TASCAM MX CONNECT» software update to V1.2.0 or higher
