Tascam MZ-223
Tascam MZ-223
Professional mixer that can assign BGM and announcements to 3 zones

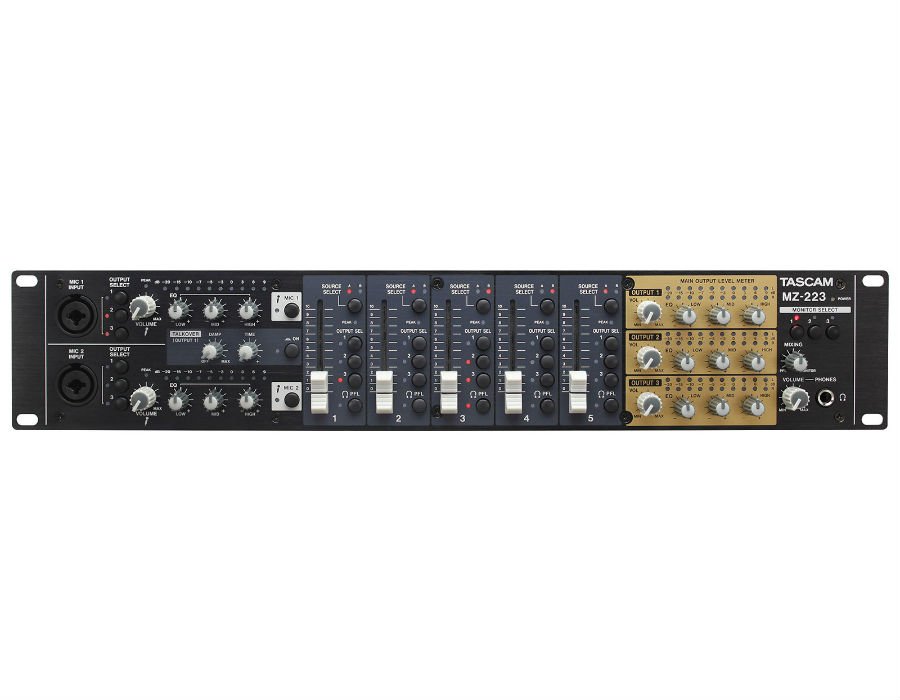

A powerful multi-channel, multi-zone mixer housed in a compact 2U desgn, The TASCAM MZ-223 offers versatile multi-zone audio routing, mixing, and segregation of several audio sources simultaneously. Source content can include music, spoken word (microphone), phonograph, and more and are easily controlled via familiar sliders and assignment controls on the front panel. Designed for easy integration in virtually any system, the TASCAM MZ-223 is ideal for small format install applications such as moderate sized hotels, restaurants, meeting rooms, schools, or any situation that demands independently routed audio.

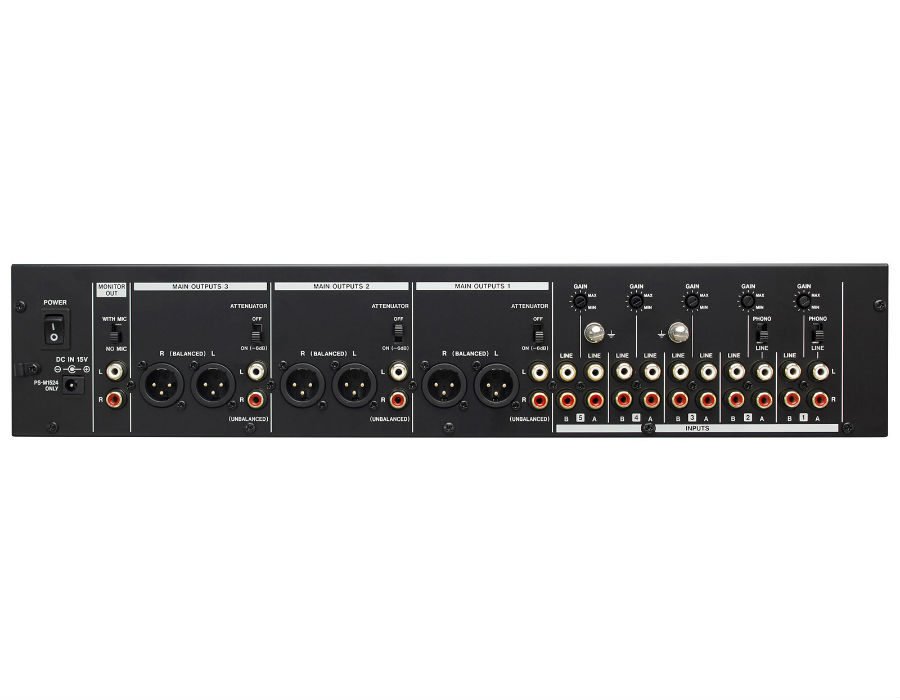

MIC 1–2 INPUT (Balanced)
Connectors XLR 3-31 / 1/4″ (6.3mm) TRS combo jack × 2
(1: GND, 2: HOT, 3: COLD) / (Tip: HOT, Ring: COLD, Sleeve: GND)
VOLUME knob at MAX –65dBu
VOLUME knob at MIN –30dBu
Input impedance 33kΩ
LINE INPUTS (Umbalanced)
Connectors RCA Pin jack × 10 pairs
Nominal input level –10dBV
Maximum input level 10dBV
Input impedance 22kΩ
MAIN OUTPUTS (Unbalanced)
Connectors RCA Pin jack × 3 pairs
Rated output level –10dBV
Maximum output level 6dBV
Output impedance 200Ω
MAIN OUTPUTS (Balanced)
Connectors XLR 3-31 × 3 pairs (1: GND, 2: HOT, 3: COLD)
Rated output level 4dBu
Maximum output level 24dBu
Output impedance 200Ω
Power
Input voltage AC 100 – 240V, 50/60Hz
Output voltage DC 15V
Output current 2.4A
