Tascam MX-8A
Tascam MX-8A

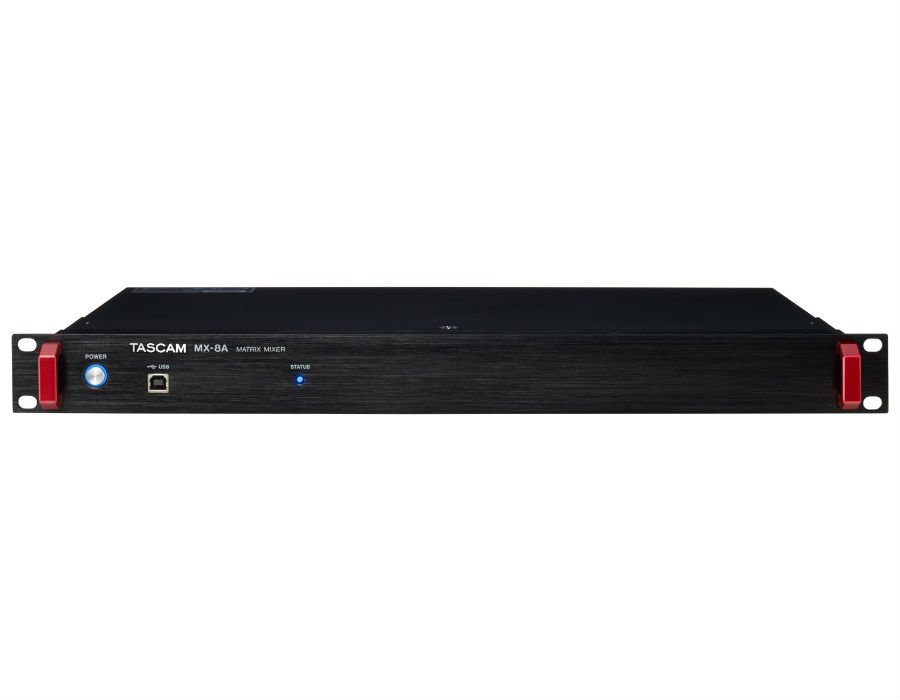

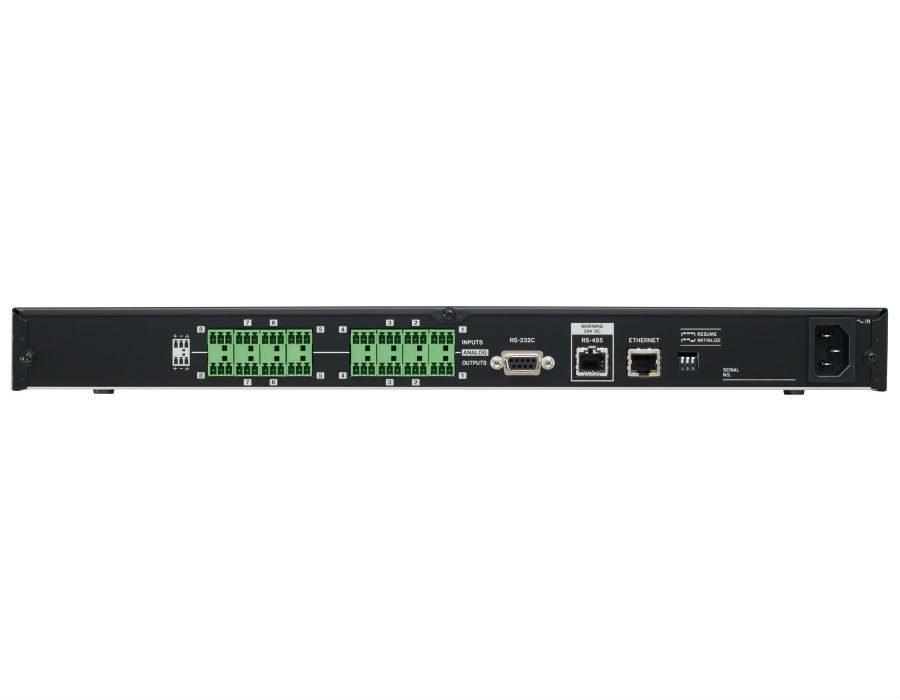

The TASCAM MX-8A is a Matrix Mixer equipped with 8 mic / line inputs and 8 line outputs as well as integrated DSP for audio optimization in various environments and configurations Custom control apps are also available to allow easy setup and adjustment by both system integrators and end users.
Source selection, volume adjustment, and mute functions can be remotely changed with the external wall-mount programmable controllers RC-W100-R120 and RC-W100-R86. Both controllers are equipped with one LCD display, an encoder and 4 switches. Up to 8 units of RC-W100-R120 or RC-W100-R86 can be installed with one TASCAM MX-8A.
* RC-W100-R120 and RC-W100-R86 are optional accessories, sold separately.
* The following updates are required to use «RC-W100».
- «MX-8A» firmware update to V1.10 or higher
- «TASCAM MX CONNECT» software update to V1.2.0 or higher
Matrix Mixer with built-in DSP for small and mid-scale audio installations. Allows mic / line inputs levels to be configured and modified by the onboard DSP.
Input module functions:
- Mic/line input switching
- Phantom power (+48V) ON/OFF (mic input)
- PAD (mic input)
- Mic gain (mic input)
- Compressor
- 4 band EQ
