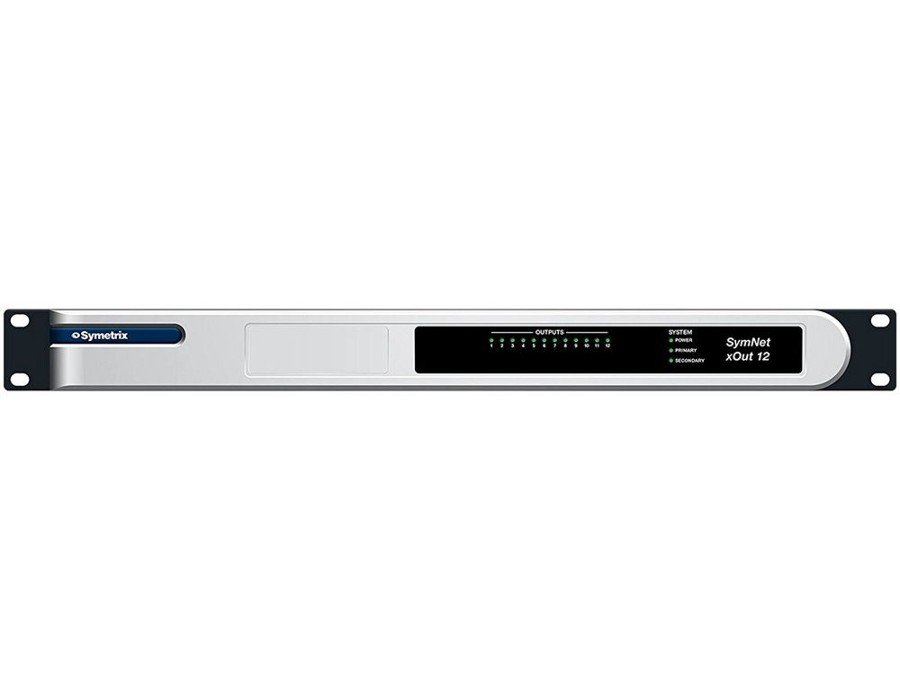

Symetrix xOut
Symetrix xOut
Expand Analog I/O Using Dante. For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications
- Built-in network switches. Direct connections to Radius, Prism and Edge DSP’s.
- Internal power supplies.
- xIn 12 – 12 analog mic/line inputs.
- xOut 12 – 12 analog mic/line outputs.
- Designed for Use with Symetrix Dante-enabled DSPs
- Software Setup Using Composer
- Low Cost Way to Increase System Analog I/O Capacity
- Ultra Low Latency – No Audible Delays
- Top of the Line Specifications
General Specifications
Sampling rate 48 kHz, ± 100 ppm.
Frequency response (D/A) 20 Hz – 20 kHz, ± 0.5 dB.
Channel separation (D/A) > 111 dB @ 1 kHz, +24 dBu.
Dante cable Standard CAT6, maximum device to device length = 100 meters.
Connectors 3.81 mm terminal blocks.
Number of outputs Twelve (12) balanced line level.
Nominal output level +4 dBu with 20 dB of headroom.
Maximum output level +24 dBu (+22.8 dBu into a 2k Ohm minimum load).
Output Impedance 300 Ohms balanced, 150 Ohms unbalanced.
Dynamic Range > 118 dB, A-weighted.
THD+Noise < -105 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain.
Latency 0.60 mS.
