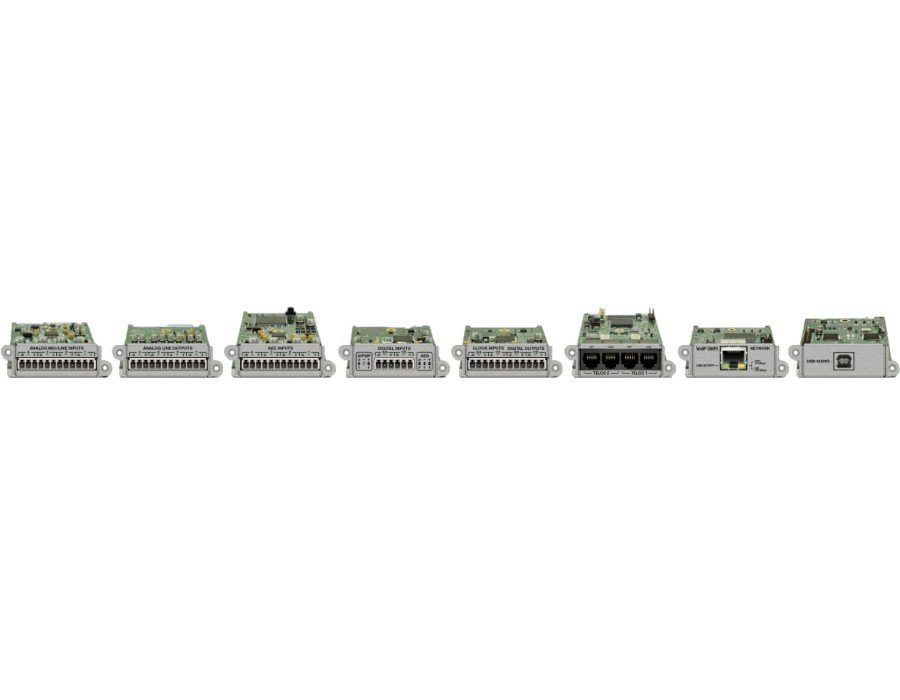

Symetrix Radius and Edge Expansion Cards
Symetrix Radius and Edge Expansion Cards
- Expand I/O Capacity and Add Functionality
- Analog Audio : 4 Channel Input | 4 Channel Output
- Digital Audio : 4 Channel Input | 4 Channel Output
- AEC : 4 Channel Input
- Telephone : 2 Line Analog | 2 Line VoIP
- USB : 1×1, 2×2, and 8×8 Modes
4 Channel Analog Input Card
- Mic and/or line level inputs.
- 4 channels per card.
- +48v phantom power @10mA.
4 Channel Analog Output Card
- Analog line outputs.
- 4 channels per card.
- High output levels for long cable runs. Up to +24 dBu.
- Digital trim. +12dB down to full off.
4 Channel Digital Input Card
- 4 channels (2 stereo pairs).
- Pro or consumer – AES/EBU or S/PDIF.
- Connect to any source – sample rate converts 12 to 192 kHz input signal to 48k internal clock.
4 Channel Digital Output Card
- 4 channels (2 stereo pairs).
- Pro or consumer – AES/EBU or S/PDIF.
- Flexible output sample rates – defaults to 48kHz or can be externally clocked from 12 to 192kHz.
- Output trim – +12dB to full off.
4 Channel AEC Input Card
- Wideband dedicated processing.
- Zero-latency direct outputs and discrete reference inputs per AEC channel.
- AEC processing available to the card’s direct inputs or internally routed sources.
- 11 mS AEC latency, up to 300 mS tail length, and greater than 100 dB/S convergence time.
- Field swappable by certified technicians.
2 Line Analog Telephone Interface Card
- 2 PSTN (POTS) lines – telco connections via RJ11.
- Multiple applications – teleconferencing, paging, remote monitoring, broadcast.
- Deskset functionality – answer, dial, redial, speed-dial, ignore (DND), decode (DTMF), ID callers, detect progress, monitor line status and faults, + more.
2 Line VoIP Interface Card
- Natively integrates with Cisco, AVAYA, and Asterisk SIP-based call platforms. Supports both narrow and wide-band audio codecs and is capable of a broad range of telephony functions including dial, hold, resume, transfer, do not disturb, and conference.
- A diversity of applications – well suited for conferencing, paging, remote monitoring, and broadcast.
USB Audio Card
- Adds up to 16 channels of USB audio I/O to a Radius DSP, or up to 64 channels to an Edge DSP, bridging computer-based soft codecs or recording and playback software to the expansive Dante™ network audio ecosystem.
- Multiple distinct modes of operation including two speakerphone modes for conferencing, along with a 2×2 and 8×8 line I/O mode for multitrack recording and playback.
