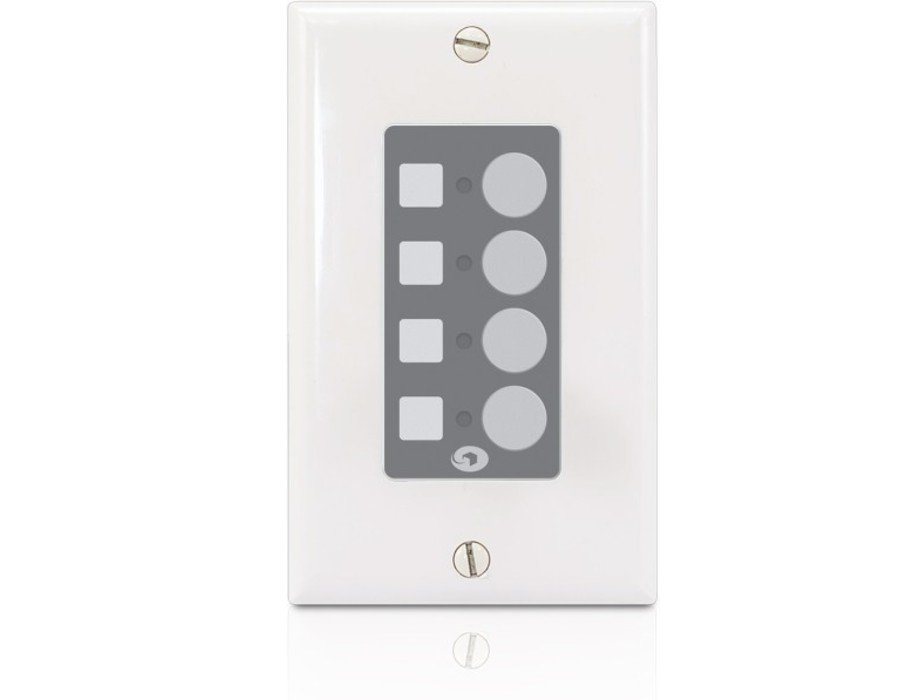

Symetrix ARC-SW4e
Symetrix ARC-SW4e
The ARC-SW4e features four switches that are programmable as momentary, latched or radio buttons. ARC-SW4e provides simple control over mutes, source selection and preset triggering. Corresponding tri-color LEDs provide user feedback. LEDs may be linked to buttons, or, LEDs and buttons may be programmed independently. ARC-SW4e has an idle mode option for dimming in light sensitive environments. Hardware lockout pins support an installer supplied key switch. Furnished with a white single gang Decora® faceplate the ARC-SW4e fits in single gang US wall boxes for in-wall or surface mount applications.
Architect and Engineer Specifications: Symetrix Wall Panels.
The series of wall panels shall be designated in two groups – Adaptive Remote Controls (ARC) and standard Remote Controls (RCs).
ARCs may be divided by functionality into the Menu and Modular ARCs. The Menu ARC-3 shall include one 256×64 pixel resolution white on black OLED backlit display and three capacitive touch areas for menu selection and value increment/decrement. The Menu ARC-3 shall mount into a single gang electrical box (US/UK/EU) or surface mount with the included enclosure. Power and control shall be connected via two RJ45 connectors. The Menu ARC-2e shall include one 8-character backlit alpha-numeric display, one momentary button for menu selection, and two momentary buttons for value increment/decrement. The Menu ARC-2e shall mount in a standard U.S. single-gang box. Power and control shall be connected via two RJ45 connectors.
- User Control of Symetrix DSP Systems
- Flexible and Extensible
- Easy to Install Using CAT5/6 Cabling
- Easy to Program Using Composer
- Four switches programmable as latched, momentary, radio buttons.
- Control of mute, source selection, presets.
- Buttons may be linked to tri-color LEDs, or LEDs may be programmed independently.
- Idle mode for LED dimming in light sensitive environments.
- Hardware lockout pins for installer provided key switch.
- Available in gray, white, and black.
- Single-gang Decora faceplate, mounts in North American electrical box.
