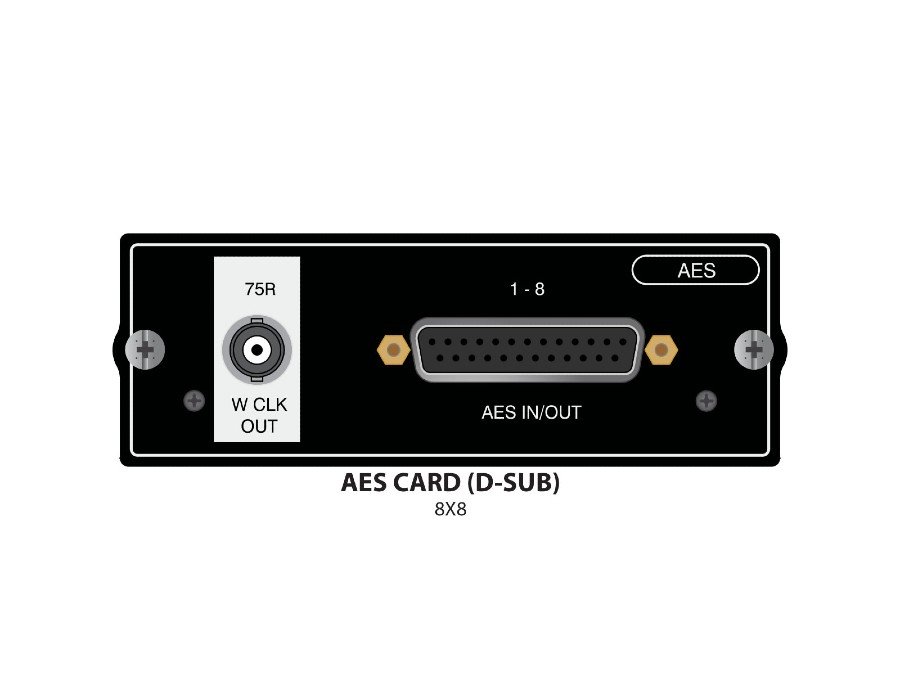

Soundcraft Vi Option Cards
Soundcraft Vi Option Cards
A series of optional interface cards, designed to fit the Local Rack, Compact Stagebox, Vi1, Vi3000 and in some cases also the Vi Stagebox, enabling Vi Series™ consoles to interface directly with a wide range of other systems and audio networks using industry standard protocols.
Variants
Line IN CARD
Eight-channel line input card with 24 bit, 48kHz A/D Converter, delta-sigma conversion. Transformer- balanced inputs. 7…26 dBu input sensitivity. “Signal present” LED indicator. Inputs on standard 25-pin D-type connector (female).
Part Numbers:
RS2425SP
Compatibility:
Vi5000/7000 or Vi6 Local Rack / Compact Stagebox / Vi1 / Vi1000/2000/3000
Line OUT CARD
Eight-channel, 24 bit line output card with 24 bit D/A converters with 48 kHz operation. Electronically balanced outputs. 7…26 dBu max. output level. Outputs on standard 25-pin D-type connector (female).
Part Numbers:
RS2424SP
Compatibility:
Vi5000/7000 or Vi6 Local Rack / Compact Stagebox / Vi1 / Vi1000/2000/3000
MIC IN CARD
Four analogue microphone/line inputs, electronically balanced, with 24 bit, 48 kHz delta- sigma A/D converters (mic/line sensitivity, gain setting in 1 dB steps, low-cut filter, and 48 V phantom power on/off controlled by console software). Green “signal present” and yellow “phantom power” indicators per channel. Inputs on standard 25-pin D-type connector (female).
