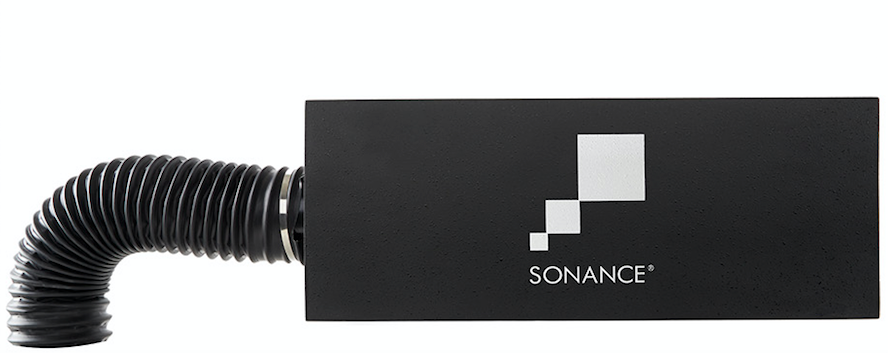

SONANCE BPS8

Finish solutions to match Visual Performance, Architectural Series, and TRUFIG style installations
Pair with Sonance DSP Amplifiers for custom-tuned performance
Designed for in-wall and in-ceiling applications, adding low end balance and removing visual intrusion

Woofer 8″ (203mm) dual voice coil, carbon fiber/ Rohacell laminated cone with a rubber surround

Frequency Response 30Hz – 90Hz – ±3dB

Impedance 6 ohms nominal; 4 ohms minimum

Power Handling 150 watts maximum

Sensitivity 90dB SPL (2.83V/1 meter)

Internal Crossover Frequency 90Hz @12dB per Octave

Cutout Dimensions —

Dimensions 24″ x 12 5/16″ x 9 1/4″ (610mm x 313mm x 235mm)

Shipping Weight 45 lbs (20.41 kg) each

Requirements *VPBPC4R or VPBPC6R (Bandpass Connectors with Grilles); sold separately

Grille 6 7/8″ or 9 3/4″ (175mm or 248mm) diameter round, paintable perforated steel
