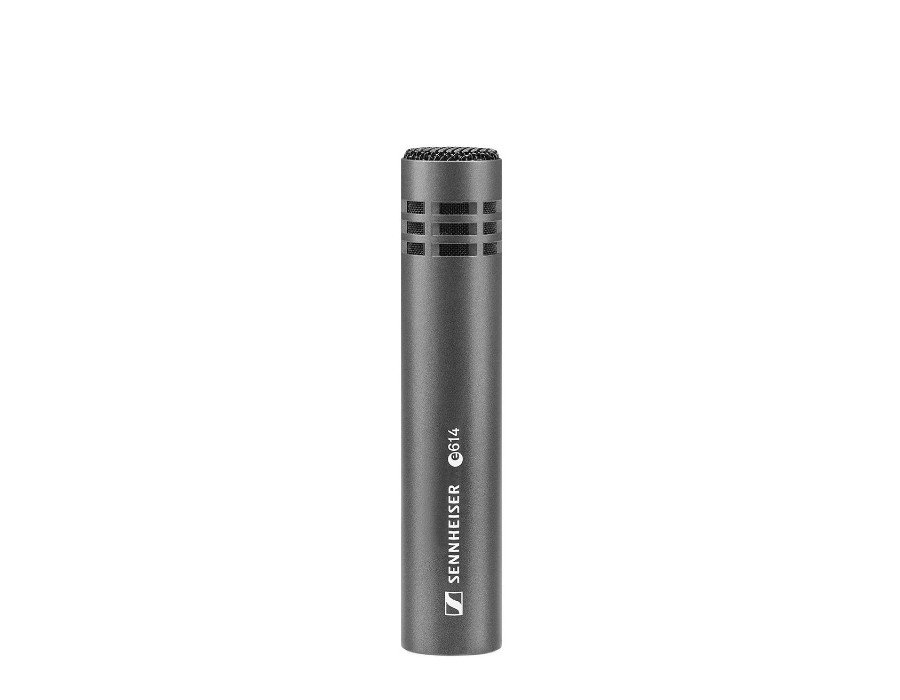

Sennheiser e 614
Sennheiser e 614
The e 614 is a super-cardioid condenser microphone, designed for demanding instrument recordings and performances that require extended frequency response, high SPL handling, fast transient response and compact size. While drumset overhead miking was the first design priority, the e614 also works exceptionally well on percussion setups as well, fitting comfortably into tight setups. The e 614 can handle high SPLs and features medium sensitivity, which ensures reduced bleed from other instruments on stage. Because of its excellent acoustic properties, this mic is also ideal for home recording.
ARCHITECT‘S SPECIFICATION
The rugged microphone shall be a super-cardioid pre-polarized condenser designed for demanding instrument miking applications. The frequency response shall be 40 Hz – 20,000 Hz and the sensitivity (free field, no load) shall be 3 mV/P at 1 kHz. Maximum SPL shall be 139 dB at 1 kHz. Nominal impedance shall be 50 Ω, with a min. terminating impedance of 1 kΩ. The microphone shall operate on 12 – 52 V phantom power and shall provide a 3-pin XLR connector. Dimensions shall be 20 x 100 mm (0.79″ x 3,94″). Weight shall be 93 grams (3.28 oz). The microphone shall be the Sennheiser e 614
- 40-20,000 Hz
- Designed for demanding applications where extended frequency range, high SPL handling, fast transient response and small size are required
- Captures the shimmer and the contact of sticks, mallets and hands
Nearly flat response from 40 Hz to 20 kHz and a supercardioid pattern
