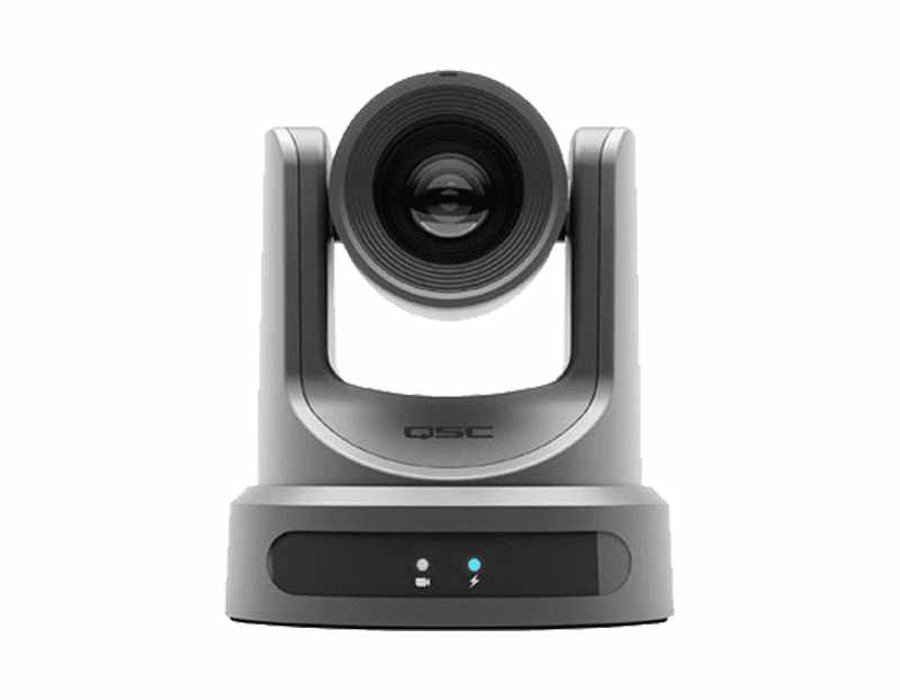

QSC NC-12X80
QSC NC-12X80 CAMERA 12X OPTICAL ZOOM APERTURE 80
As part of the Q-SYS platform, PTZ 12×72 / PTZ 20×60 conference cameras integrate with Q-SYS bridging peripherals, such as the Q-SYS USB-I/O Bridge or the direct-to-core 110f processor from Q-SYS. Q-SYS, to deliver professional-quality video conferencing coupled with industry-leading audio processing for small and medium-sized rooms using softcodec conferencing or computer capture.
Characteristic
- Video conferencing for Q-SYS AV-USB bridging solution
- Distribute video over the Q-LAN™ network wherever it is needed
- Resolutions up to 1080p/60
- Image rotation controls to allow upside down mounting
- Motorized Pan, Tilt and Zoom (PTZ) for full room coverage and privacy
- Auto Exposure, Auto Focus and Auto White Balance modes
- Native custom camera interfaces via Q-SYS Designer Software
- Includes wall bracket for easy installation
| Detail | PTZ 12x72 | PTZ 20×60 |
| Image Sensor | 1/2.7″, Low Noise CMOS Image Sensor | |
| Lens characteristics (wide to tele) | 12x optical zoom, f=3.5mm to 42.3mm, F1.8 to F2.8; Horizontal Field of View: 72.5° to 6.9°, Vertical Field of View: 44.8° to 3.9° | 20x optical zoom, f=4.42mm to 88.5mm, F1.8 to F2.8; Horizontal Field of View: 60.7° to 3.36°, Vertical Field of View: 34.1° to 1.89° |
| Minimal Illumination | 0.05 lux at F1.8 (AGC On) | |
| Noise Reduction | 2D and 3D | |
| S/N Ratio | ≥ 55dB | |
| Pan / Tilt Angle and Speed | Pan: ±170° rotation, speed: 1.7° to 100°/sec, Tilt: -30° to +90° rotation, speed: 1.7° to 69.9°/s | |
| Ceiling Mountable | Image rotation for ceiling mounting, ceiling mount bracket accessory available | |
| HD Video Outputs | HDMI and 3G-SDI | |
| Ethernet | 100BaseTX / 1000BaseT | |
| Video Resolutions | ||
| HDMI / SDI: | 1080p, 60/50/30/25, 1080i, 60/50, 720p, 60/50/30/25 | |
| Network (30fps, 16:9): | 1080p, 720p, 576p 360p, 270p, 180p | |
| Input Voltage | DC 12V or PoE (802.3af) | |
| Current Consumption | 12v DC @ 1.0A (max) | |
| Operating Temperature | -10°C – 40°C (14°F – 104°F), Indoor use only | |
| Storage Temperature | -40°C – 60°C (-40°F – 140°F) | |
| Power Consumption | 12W (max) | |
| Dimensions | 6.7 in x 5.6 in x 165 in (169mm x 142mm x 164mm) | |
| Weight | 3.0 lbs (1.35 kg) | |
