QSC CX-Q 4K8
QSC CX-Q 4K8 Q-SYS Eight-channel Network Amplifier
CX-Q Series network amplifiers combine a legacy of robust power amplifiers, advancements in high-efficiency output devices and native network transport, control and monitoring capabilities of the Q-SYS Ecosystem. CX-Qn 4K8 features eight channels, capable of delivering customized power output loading and a total maximum power of up to 4000 W. Low-Z, 70 V or 100 V direct drive are available on all channels.
Q-SYS Ecosystem Integration – Simple drag-and-drop integration into your Q-SYS design, enabling network routing, advanced processing and control.
Legacy of power redefined – These network amplifiers are built with a 5th generation high-efficiency, Class-D hybrid powertrain design built upon the dependable PL380 PowerLight™ amplifier platform.
Flexible & efficient channel power distribution – CX-Q Series network amplifiers feature FlexAmp™ and FAST (Flexible Amplifier Summing Technology™), which combine to provide extreme flexibility in output deployment.
Network inputs only – “Qn” models are network input only (no local inputs) to reduce cost in scenarios where no local inputs are necessary.
General Specifications
| CX-Q 4K8 | CX-Q 8K8 | |
| Typical distortion | ||
| 8Ω | 0.02 – 0.05% | |
| 4Ω | 0.04 – 0.1% | |
| Maximum distortion 4Ω – 8Ω | 1.0% | |
| Frequency response | 20 Hz – 20 kHz +/- 0.3 dB | |
| Noise | ||
| Unweighted output muted | > 101 dB | |
| Weighted output muted | > 104 dB | |
| Gain (1.2V setting) | 35 dB | 38 dB |
| Damping factor | > 100 | |
| Input impedance | > 8k balanced and > 4k unbalanced | |
| Amplifier and load protection | Short circuit, open circuit, over current, over voltage, thermal, RF, DC fault shutdown, active inrush limiting, on/off muting | |
| AC power input | Universal power supply 100 – 240 VAC, 50 – 60 Hz | |
| Agency approvals | UL, CE, RoHS/WEEE compliant, FCC Class B (conducted and radiated emissions) | |
| Carton contents | IEC cable, quick start guide, Euro (green) connectors | |
Power Specifications
| CX-Q 4K8 | CX-Q 8K8 | ||
| Max Power | Max Power | ||
| 8 Independent Channels A, B, C, D, E, F, G, H | 70V | 1000 W | 1250 W |
| 100V | 1000 W | 1250 W | |
| 8Ω | 1000 W | 1250 W | |
| 4Ω | 1000 W | 1500 W | |
| 2Ω | 1000 W | 1200 W | |
| 2 Channels BTL Bridged A+B or C+D or E+F or G+H Doubles Voltage | 140V | 1500 W | 2000 W |
| 200V | 1500 W | 2000 W | |
| 8Ω | 1500 W | 3000 W | |
| 4Ω | 1400 W | 1700 W | |
| 2Ω | NR* | NR* | |
| 2 Channels Parallel AB or CD or EF or GH Doubles Current | 70V | 1500 W | 2000 W |
| 100V | 1500 W | 2000 W | |
| 8Ω | 1000 W | 1250 W | |
| 4Ω | 1250 W | 2400 W | |
| 2Ω | 1500 W | 2500 W | |
| 3 Channels Combined in Parallel ABC or EFG Triples Current | 8Ω | 1000 W | 1250 W |
| 4Ω | 1500 W | 2000 W | |
| 2Ω | 1500 W | 2500 W | |
|
4 Channel Bridged/Parallel AB+CD, EF+GH Doubles Current and Voltage | 8Ω | 2500 W | 4000 W |
| 4Ω | 3000 W | 5000 W | |
| 2Ω | NR* | NR* | |
| 4 Channels Combined in Parallel ABCD or EFGH Quadruples Current | 8Ω | 1000 W | 1200 W |
| 4Ω | 2000 W | 2400 W | |
| 2Ω | 2500 W | 4000 W | |
| 1Ω | 3000 W | 4000 W | |
Controls, Indicators and Connections
| CX-Q 4K8 | CX-Q 8K8 | |||

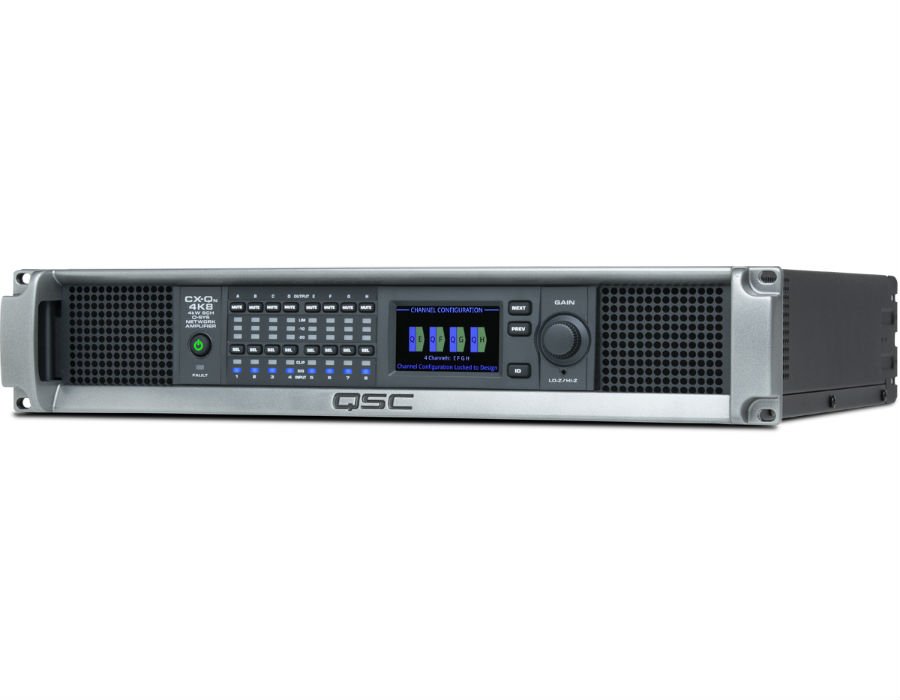

| Controls and indicators (front) | Power • Channel MUTE buttons • Channel SELECT buttons • Channel Input Signal and CLIP LED Indicators Channel Output and LIMIT LED meters • NEXT, PREV, ID buttons • Control knob | |||

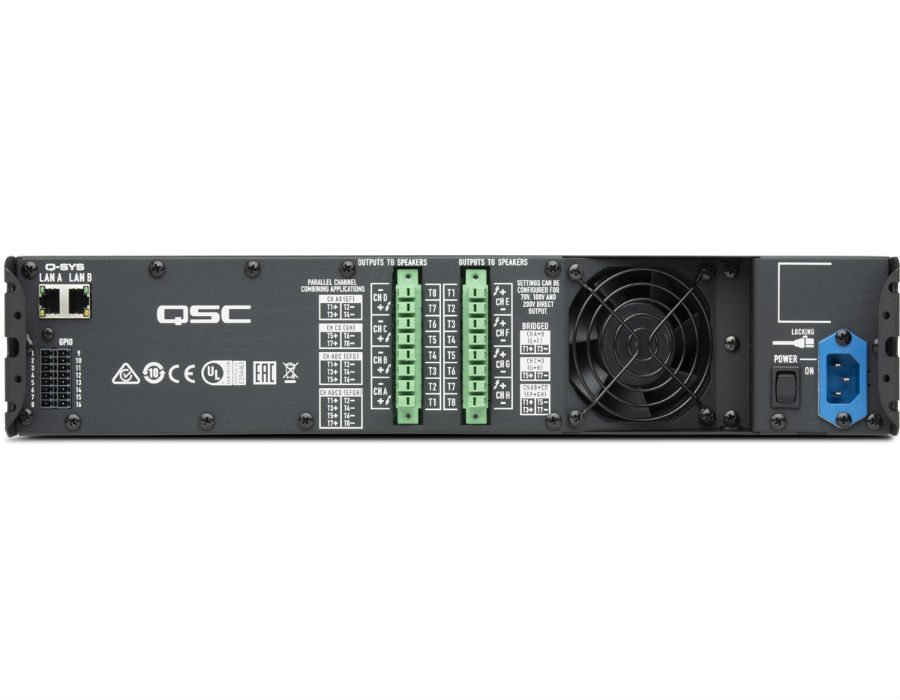

| Controls and indicators (rear) | AC Power Disconnect (IEC C-14) | |||
| Input connectors | «Q» models – 3-pin Euro (green) and Q-LAN Network connectivity «Qn» models – Q-LAN Network connectivity only | |||
| Output connectors | 8-pin Euro (green) | |||
Weights and Dimensions
| CX-Q 4K8 | CX-Q 8K8 | |
| Dimensions (H×W×D) mm | 89 × 482 × 406 | 89 × 482 × 406 |
| Dimensions (H×W×D) in | 3.5 × 19 × 16 | 3.5 × 19 × 16 |
| Weight net | 11.3 kg / 25 lb | 11.8 kg / 26 lb |
| Weight shipping | 13.2 kg / 29 lb | 13.6 kg / 30 lb |
Additional Features
- PowerLight universal switchmode power supply with PFC for highest efficiency, improved audio performance and low weight
- Touch-proof Euroblock loudspeaker connections
- Eight bi-directional GPIO connections for further control and integration of third-party peripherals within Q-SYS
- Automatic energy saving modes ensure that the amplifier will draw the minimum amount of AC power while still providing outstanding audio quality
