QSC CTEL4

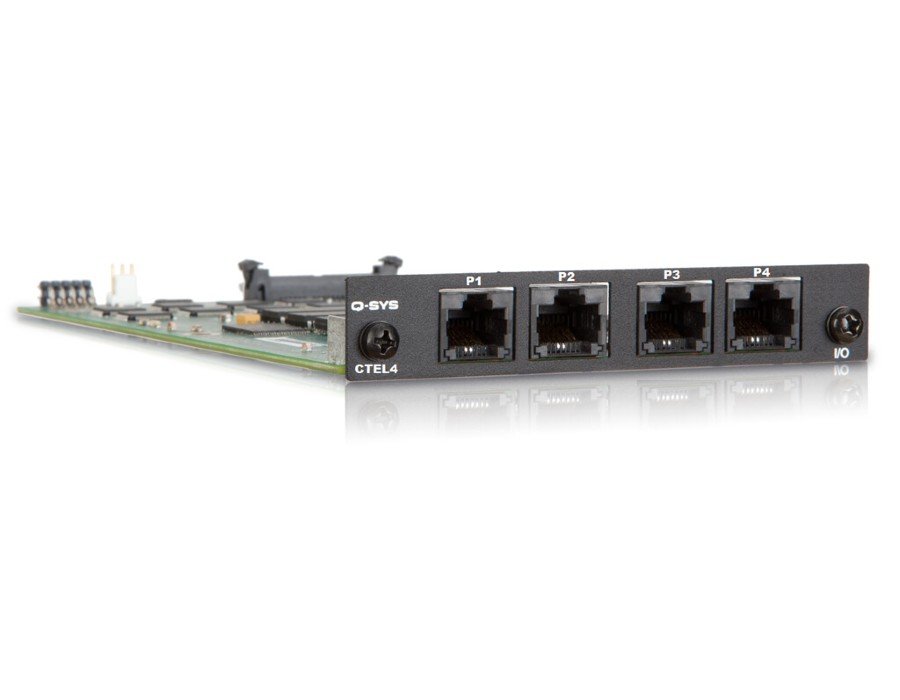

QSC CTEL4 Analog Telephony Card
The CTEL4 card provides four RJ-11 interfaces to connect the Q-SYS Core or I/O Frame to analog telephony (POTS) environments.
For configuration information, see POTS Controller, POTS In, and POTS Out.
The CTEL4 POTS I / O card is a four-line analog interface that allows seamless integration of analog telephony environments into the Q-SYS platform without the need for third-party analog gateways.
Applications: Designed for applications requiring analog telephony or paging, the CTEL4 I / O card offers four RJ-11 interfaces for connection to Q-SYS Integrated Cores and I / O Frames.
The CTEL4 POTS I/O Card is a four-line analog interface enabling seamless integration of analog telephony environments into the Q-SYS Platform without the need for thirdparty analog gateways.
Applications: Designed for applications requiring analog telephony or paging, the CTEL4 I/O card offers four RJ-11 interfaces for connection to Q-SYS Integrated Cores and I/O Frames.
Features
• Four-line analog telephony interface for Q-SYS Integrated Cores and I/O Frames
• Simple integration of any analog telephone syste
Model Total I/O card
slots
Max CTEL4 cards
supported
Core 510i 8 3
I/O Frame 4 3
Core 1100, 3100 1 1
Core 500i 8 1
Core 250i 8 1
I/O Frame 8s 8 1
*Core 1000, 3000, 4000 not supported
