QSC Core 8 Flex

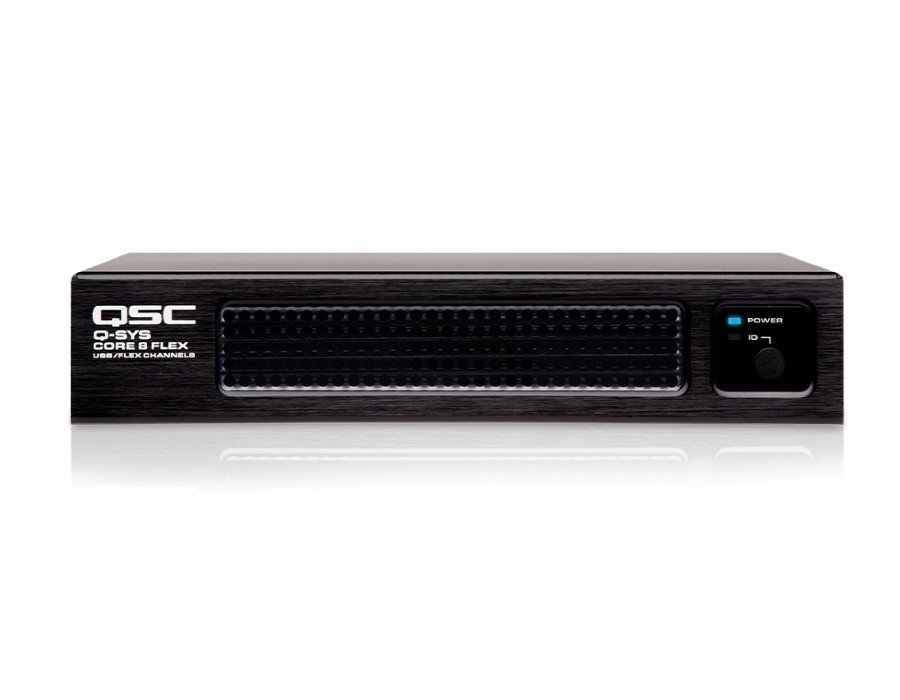

QSC Core 8 Flex Q-SYS network + analog I/O processor
The Q-SYS Core 8 Flex audio, video and control processor expands the Q-SYS Ecosystem applications to a greater number of small-scale installations in business, university and healthcare settings, among others. The Core 8 Flex is based on the same technology used by all other Q-SYS processors, including the Q-SYS Core 110f processor, and is intended for use in applications that require fewer analog or network channels and / or for very high needs. specific processing.
Features & Benefits
- 64 x 64 networked audio channels (Q-LAN / AES67)
- 8x on-board Flex channels and GPIO
- 8x AEC processors
- up to 32 x 32 Dante audio channels (8 x 8 included)
- USB AV bridging (8 x 8 audio + Q-SYS camera support)
- Full-featured Q-SYS Control engine (with optional feature license)
- External USB audio device host
- Up to 2x VoIP instances
- 1U half-width, includes mounting hardware
Network plus on-board I/O
In addition to its 64 x 64 network I/O capacity, the Core 8 Flex offers eight on-board Flex channels and eight GPIO on-ramps to integrate analog audio and control devices into the Q-SYS Ecosystem. Ideal for in-room processing with both analog & networked endpoints.
Core 8 Flex joins a growing Ecosystem of AV&C processors with a flexible software foundation. Like all Core processors, the Core 8 Flex allows integrators to leverage the same Q-SYS software to design and configure their systems. Additionally, the end user will benefit from all Q-SYS native peripherals and system scalability without having to change or replace their configuration.
- 64 × 64 channel network audio (Q-LAN / AES67)
- 8 Flex Channels and GPIO integrated
- 8 AEC processors
- Up to 32×32 channels of Dante audio (8×8 included)
- AV Bridging USB (8 × 8 channel audio + Q-SYS camera support)
