QSC AP-5152

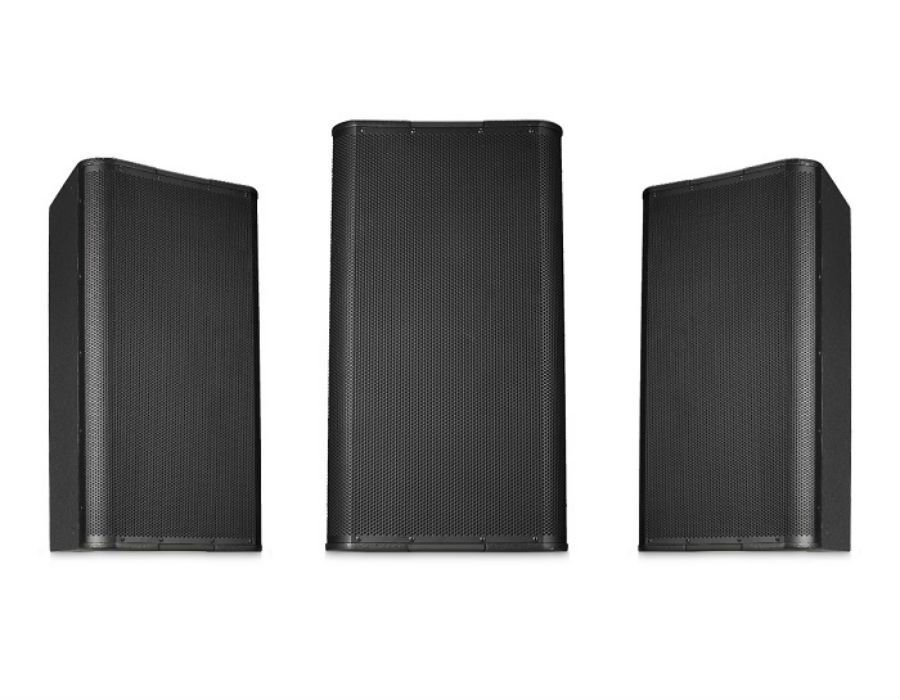

QSC AP-5152 High-Power, 15-inch 2-way, 75˚ conical DMT™
Features
- Directivity Matched Transition® (DMT) ensures smooth, coherent power response across the listening plane
- 3” diaphragm compression delivers a clean and powerful high frequency response
- M10 fittings offer flexible deployment options for a variety of applications
- Clean industrial design with unadorned grilles complement most decors and settings
- NL4 Speakon connector and covered barrier strip terminals
- Bi-amp / passive switchable
- Constructed from 15-ply Baltic birch plywood
- 16-gauge powder coated steel grilles
- Available in black (RAL 9011) and white (RAL 9010)
- Complete EASE, CAD & BIM information available online
- Can also be used as a high-power cinema surround
| SPECIFICATIONS | AP-5152 |
| Frequency response (-10 dB) | 44 Hz – 18 kHz |
| Rated noise power / voltage1 | 625 watts / 65 volts rms |
| Broadband sensitivity2 | 96 dB SPL |
| Coverage angle | 75˚ conical DMT™ |
| Directivity factor (Q) | 8.3 |
| Directivity index (DI) | 9.2 |
| Recommended crossover | 950 Hz, 48 dB/octave |
| Maximum SPL at 1 m (passive) | 123 dB continuous3 129 dB peak4 |
| Rated impedance | 8Ω |
| HF transducer | 76 mm (3-inch) voice coil, compression driver; 72 W / 24 V (2 hours) |
| LF transducer | 381 mm (15-inch) driver with 102 mm (4-inch) voice coil; 525 W / 65 V (2 hours) |
| Optional accessories | M10 Kit-W |
| Enclosure details | |

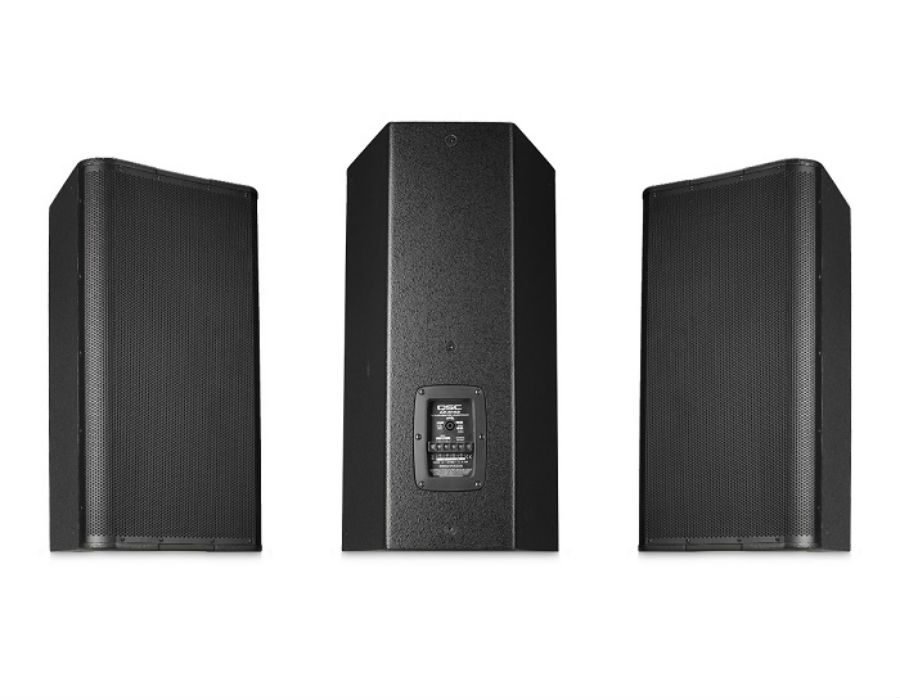

| Input connector | Covered barrier strip, NL4 connector |
| Enclosure material | 15-ply Baltic birch plywood |
| Attachment points | Fifteen M10 threaded inserts |
| Color | Black (RAL 9011), White (RAL 9010) |
| Grille | 16-gauge powder coated steel |
| Dimensions (HWD) inches | 32 × 17.5 × 15.2 |
| Dimensions (HWD) mm | 813 x 445 x 386 |
| Net weight | 36.2 kg (80 lb) |
