Descripción
QSC AP-212sw

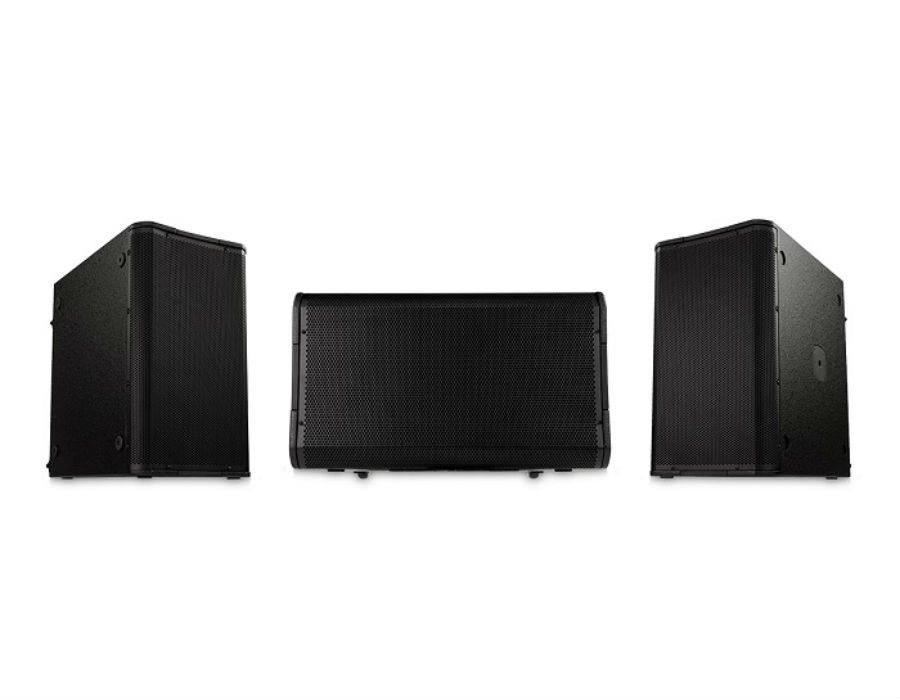

QSC AP-212sw Dual 12-inch subwoofer
Features
- Directivity Matched Transition® (DMT) in 2-way models ensures smooth, coherent power response across the listening plane
- Premium-grade, long excursion, dual 12-inch transducers
- Two threaded pole cups for both vertical and horizontal applications
- Two M20 pole attachment points
- Clean industrial design with unadorned grilles complement most decors and settings
- NL4 Speakon connector
- Constructed from 15 mm Baltic birch plywood
- 16-gauge powder coated steel grilles
- Available in black (RAL 9011)
- Four integrated handles and optional caster kit for ease of transport
- Complete EASE, CAD & BIM information available online
| SPECIFICATIONS | AP-212sw |
Frequency response | 35 Hz – 250 Hz |
Rated noise power / voltage1 | 600 watts / 49 volts rms |
Broadband sensitivity2 | 93 dB SPL |
Coverage angle | N/A |
Directivity factor (Q) | N/A |
Directivity index (DI) | N/A |
Recommended crossover | N/A |
Maximum SPL at 1 m (passive) | 122 dB continuous3 128 dB peak4 |
Rated impedance | 4Ω |
HF transducer | N/A |
LF transducer | Two 305 mm (12-inch) weather resistant cone woofers with 64 mm (2.5 in) voice coil |
Optional accessories | Subwoofer Caster Kit Speaker Pole M2035-36 (Horizontal) Speaker Pole M2035-26 (Vertical) |
Enclosure details | |
Input connector | Two NL4 crossed: A: Sub 1+/-, Thru 2+/- B: Thru 1+/-, Sub 2+/- |
Enclosure material | 15 mm Baltic birch plywood |
Attachment points | Two M20 pole attachment points |
Color | Black (RAL 9011) |
Grille | 16-gauge powder coated steel |
Dimensions (H×W×D) | 26″ × 15″ × 24″ / 660 × 381 × 610 mm |
Net weight | 65.4 lb / 30.4 kg |
