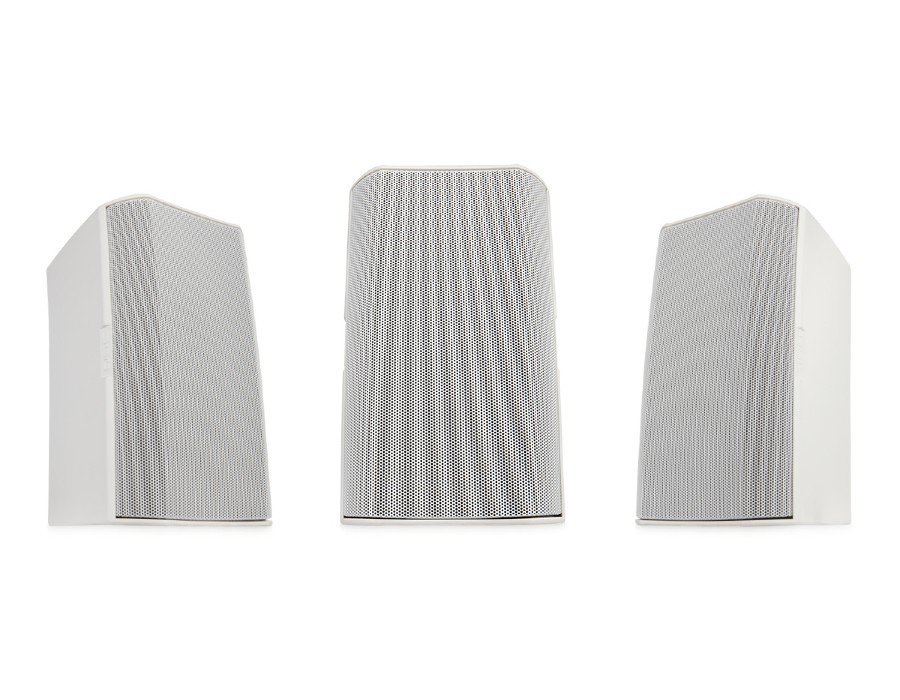

QSC AD-S5T
QSC AD-S5T 5.25-inch 2-way, 115° conical DMT™
Features
- 5.25 inch weather treated woofer; 1 inch silk dome tweeter
- 115° conical coverage
- 60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
- Maximum peak SPL 116 dB (8 ohm bypass)
- Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area
- X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
- Advanced Intrinsic Correction™ voicings available via Q-SYS™
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
| System Details | AD-S5T |
| Effective frequency range1 | 60 Hz – 20 kHz |
| Rated noise power / voltage2 | 100 W |
| Broadband sensitivity3 | 86 dB SPL |
| Coverage angle | 115° conical DMT® |
| Directivity factor (Q) | 6.9 |
| Directivity Index | 7 dB |
| Maximum continuous SPL4 | 106 dB |
| Maximum peak SPL4 | 112 dB |
| Rated impedance | 8 ohms |
| Transformer taps | 70 V: 7.5, 15, 30, 60, bypass 100 V: n/a, 15, 30, 60, bypass |
| HF transducer | 1-inch damped fabric dome tweeter, 1-inch voice coil |
| LF transducer | 5.25-inch paper cone woofer, 1-inch voice coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| X-Mount material | Powder coated aluminum |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Product dimensions (HWD) | 11.3 x 6.9 x 6.8 in (286 x 175 x 174 mm) |
| Shipping weight | 20.2 lbs / 9.2 kg (pair packed) |
| Shipping dimensions (HWD) inches | 15.9 x 10.3 x 18.3 in (405 x 262 x 465 mm) |
| Included accessories | X-Mount mounting system, Euroblock connector, input panel cover |
1 Free-field, -10 dB from on-axis sensitivity | |
