Descripción

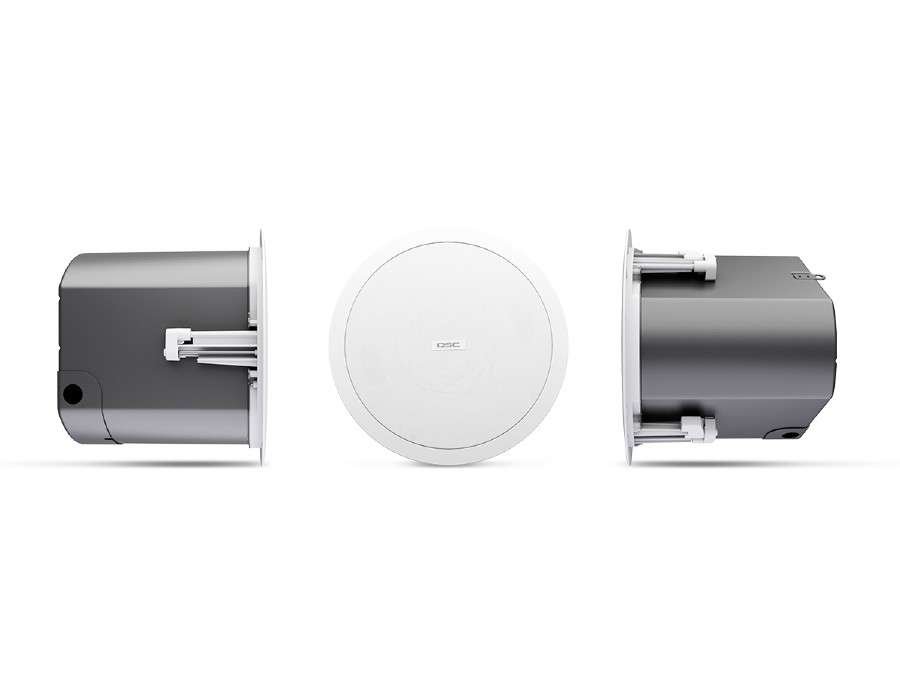

QSC AD-C6T-HP
QSC AD-C6T-HP 6.5-inch, 2-way ceiling-mount loudspeaker, 120° coverage
Features
- Higher power handling at standard ceiling heights to enable high-energy venues
- Consistent tonal characteristics across the entire AcousticDesign Series let you mix and match form factors across your venue
- Snap-fit magnetic grille
- 3x double stepped, long travel dog-ear blind mount system
- Advanced Intrinsic Correction™ voicings available via Q-SYS™
- 16 Ω bypass with multiple transformer taps for 70/100 Vrms systems
- 120° coverage pattern
- Available in white (RAL 9010)
| SPECIFICATIONS | AD-C6T-HP |
| Description | 6.5 in, two-way ceiling-mount loudspeaker with transformer |
| Transducers | 6.5 in (165 mm) paper cone woofer, 1.75 in (44.5 mm) voice coil, ferrite magnet 1.4 in (35.6 mm) kapton dome compression tweeter |
| Sensitivity | 89 dB @ 1 W, 1 m |
| Freq. range (-10 dB) | 58 Hz – 20 kHz |
| Rated noise power (@16 Ω bypass) | 120 W |
| Coverage (-6 dB) | 120° |
| Directivity factor | 3.6 |
| Directivity index | 5.6 dB |
| Max SPL (continuous/peak) | 109 dB / 115 dB @ 1 m |
| Taps (70 V/100 V) | 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W |
| Bypass impedance | 16 Ω |
| Min impedance | 15.4 Ω @ 281 Hz |
| Crossover frequency | 2.6 kHz |
| Input | 4-pin Euroblock connector with parallel output |
| Net weight | 13.39 lbs (6.07 kg) |
| Product dimensions (HxWxD) | 9.3 x 11 x 11 in (235 x 280.5 x 280.5 mm) |
| Optional accessories | AD-MR6 (pre-install mud ring) |
