Descripción

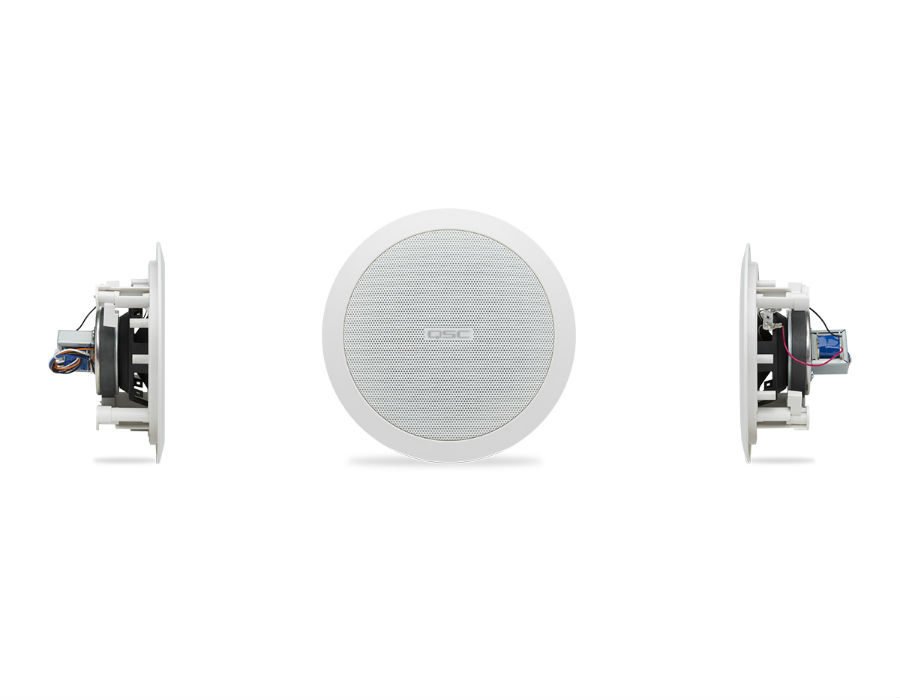

QSC AC-C4T-nb
QSC AC-C4T-nb 4″, full range, 140° conical coverage
- High quality 4.5-inch full-range transducer provides exceptional clarity through the critical voice range.
- Low-saturation 70V/100V transformers with 8-ohm bypass.
- 4-pole Euroblock connector for easy system wiring.
- White (RAL 9010) with UV inhibitors to match complementing QSC product families.
Characteristic
- The high-quality 4» full-range transducer offers exceptional clarity throughout the critical voice range.
- 70V/100V low saturation transformers with 8 ohm bypass.
- 4-post Euroblock connector for easy system wiring.
- White (RAL 9010) with UV inhibitors to complement the QSC product series.
| Specifications | AC-C4T-nb |
| Transducer | 100 mm [4 in.] weather resistant paper cone |
| Rated noise power [rms] (1) | 6 W. |
| Nominal Impedance | 8 o’clock |
| Transformer taps: | |
| 70 V | 6, 3, 1.5, 0.75 W. |
| 100V | 6, 3, 1.5 W |
| Effective frequency range (2) | 62 Hz – 18 kHz |
| Rated Coverage(3) | 140° conical |
| Directivity Factor | 4 |
| Directivity Index [dB] | 6 |
| Sensitivity (4) | 93 dB |
| Maximum continuous SPL (5) | 101 dB |
| Maximum peak SPL (5) | 107 dB |
| Baffle material | ABS |
| Grille material | Powder coated steel |
| Cutout Dimensions | Ø 178 mm [Ø 7 in] |
| Net weight | 1.2 kg [2.6 lb] |
| Product dimensions (Diameter x Height) | Ø 206 x 95 mm [Ø 8.11 x 3.75 in.] |
| Shipping weight | 5.9 kg [13.1 lb] (packs of 4) |
| Shipping dimensions (H x W x D) | 254 × 324 × 476 mm [10 × 12.75 × 18.75 in] (packs of 4) |
