Pure Resonance Audio SD5
Pure Resonance Audio SD5

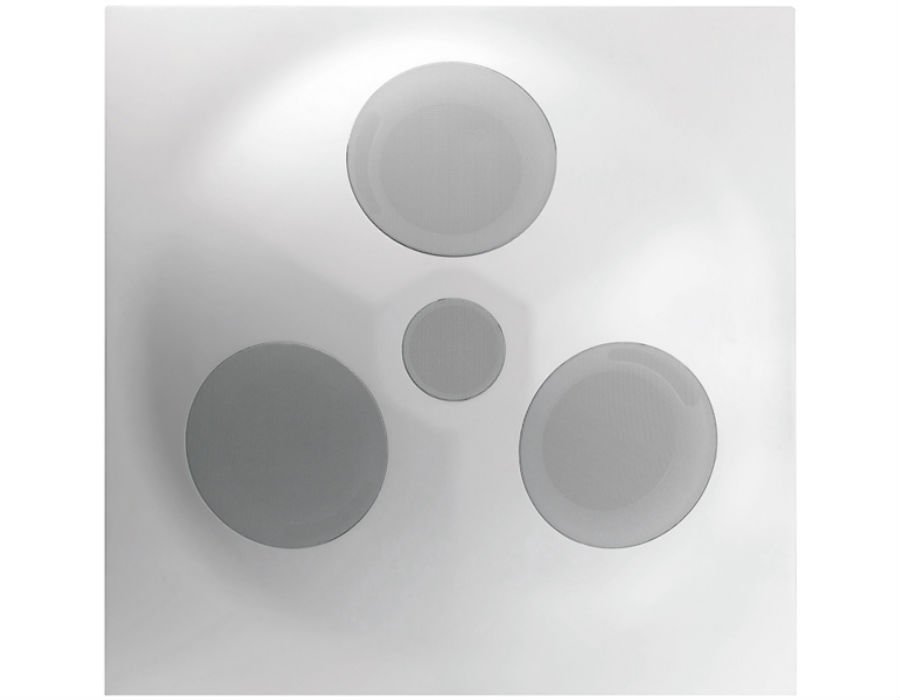

Providing unrivaled speech reproduction and voice intelligibility, the Pure Resonance Audio SD5 SuperDispersion® Omnidirectional Drop Tile Ceiling Speaker Array offers a smooth even 180-degree coverage pattern with crisp vocal articulation and low distortion. Its cutting edge technology and clear sound make it ideal for classrooms, conference rooms, lecture halls, auditoriums, control rooms, churches, and office sound systems.
Providing unrivaled speech reproduction and voice intelligibility, the Pure Resonance Audio SD5 Super Dispersion® omnidirectional 70V drop tile ceiling speaker array is perfect for classrooms, conference rooms, lecture halls, auditoriums, control rooms, churches, offices, and other commercial sound systems.
The new SD5 is built with a proprietary high-frequency tweeter that creates better audio coverage and response than most loudspeaker systems. The powerful tweeter design works in perfect harmony with an array of custom-engineered drivers to reduce frequency cancellation and provide crystal clear sound. This cutting edge design offers 180 degrees of smooth, crisp audio coverage. The Pure Resonance Audio SD5 SuperDispersion omnidirectional ceiling speaker array is impressively sleek, thin and lightweight, making it quick and easy to install securely with the included 3-point mounting eye bolts and braided steel wire.
SPECIFICATIONS
Power Handling: 120W RMS
Frequency Response: 46Hz – 20kHz
Sensitivity: 90dB @ 2.83V/1M
Impedance: 8 Ohms
70 Volt Transformer Taps: 7.5W, 15W, 30W, 60W @ 70V; 8 Ohm Bypass
Dispersion: 360° by 180°
Drivers: (3) 5.25″ drivers & (1) 3″ tweeter
Dimensions (H x W x D): 23.75″ (603.25 mm) x 23.75″ (603.25 mm) x 5″ (128.5 mm)
Shipping Dimensions: 27.79” (706 mm) x 27.79” (706 mm) x 8.82” (224 mm)
