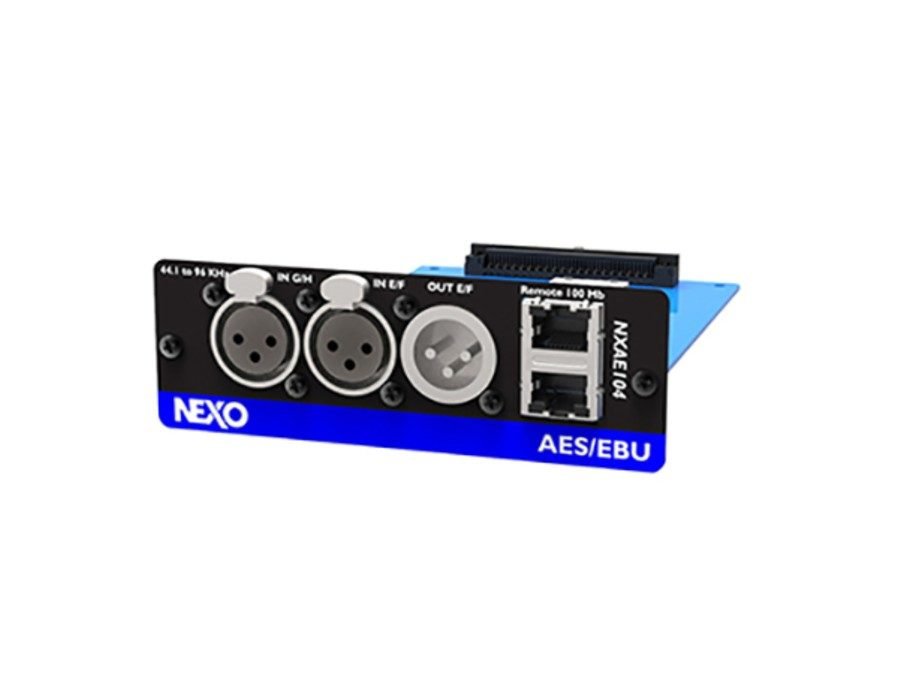

Nexo NXAE104

Receives 4 audio channels (24 bits / 44.1 – 96 kHz) in AES/EBU format
2 x AES/EBU stereo input on XLR, one with AES/EBU buffered output on XLR with fail safe relay
2 x switched RJ45 for remote control and daisy chain of the devices.

SPECIFICATIONS

DIGITAL AUDIO FORMAT

Digital audio type AES/EBU

Media type 110 Ohms 3 wires twisted pair with XLR connector

Number of channels 4

Resolution / Sample Rate 24 bits / 44.1 – 96 KHz

Latency 1.4 ms to 2.4 ms

REMOTE CONTROL FORMAT

Network format Standard TCP/IP

Device addressing Automatic, based on IP address with Zeroconf

FRONT PANEL FEATURES

Digital audio connectors 2 x XLR-F and 1 x XLR-M.

Additional port 2 x RJ45 for remote control

LEDs on digital audio ports None

LEDs on remote port Link and Activity

GENERAL SPECIFICATIONS

Power supply +3.3 Volts, 2 W from NEXO slot

Dimensions (W x D x H) 120 x 160 x 40 mm (NXAMP slot)

Weight 200 g

EMC certification CE, FCC

Green Status ROHS and REACH
