Descripción
Muxlab MUX-500831

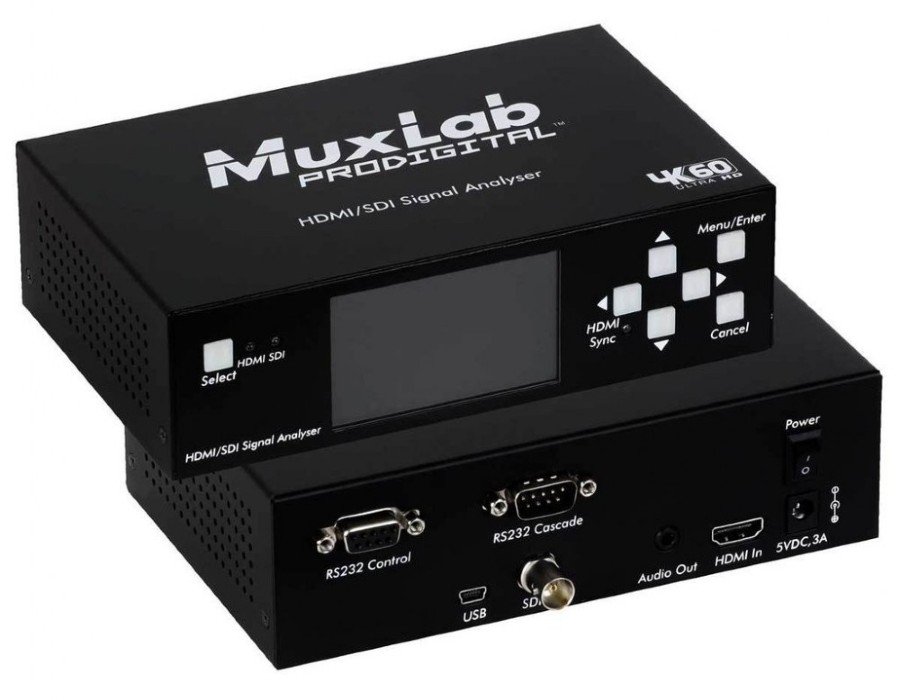

Portable signal analyzer , capable of analyzing SD / HD / 3G-SDI and HDMI 2.0 test patterns , in a full range of resolutions up to 4K @ 60Hz (4: 4: 4). The equipment is of great help to users in validating the capabilities and proper operation of their source devices. When used with the 500830 Signal Generator, it achieves a useful suite of cable quality / connectivity tests and device compatibility tests to help identify problems. The device is an exceptional tool, at an attractive price, for any engineer, integrator and installer.
The Signal Analyzer is a portable device that can be used anytime you need it, anywhere, making it an indispensable tool. It has an internal rechargeable lithium-ion battery, which allows it to operate autonomously for up to 5 hours, per charge.
Muxlab 500831 HDMI and SDI Signal Analyzer Features
- Portable signal analyzer for autonomous operation anytime, anywhere
- Supports up to 5 hours of operation, on a single charge, via an internal rechargeable lithium-ion battery
- Supports HDMI up to 4K / 60 and 3D, and 3G-SDI
- Supports RGB4: 4: 4, YUV4: 2: 2, YUV4: 2: 0 and Deep Color
- Supports an HDMI cable test function
- Shows the characteristics of the AV signal
- 3 «LCD panel for pattern preview and setup menu
- Supports 7 audio sample rates
- VU meter on LCD
- Supports HDCP 2.2 and 1.4
- Supports EDID management
- Managed locally or remotely via RS232 or USB
- Supports RS232 cascading, for management
- Free Windows Management Software
