Descripción

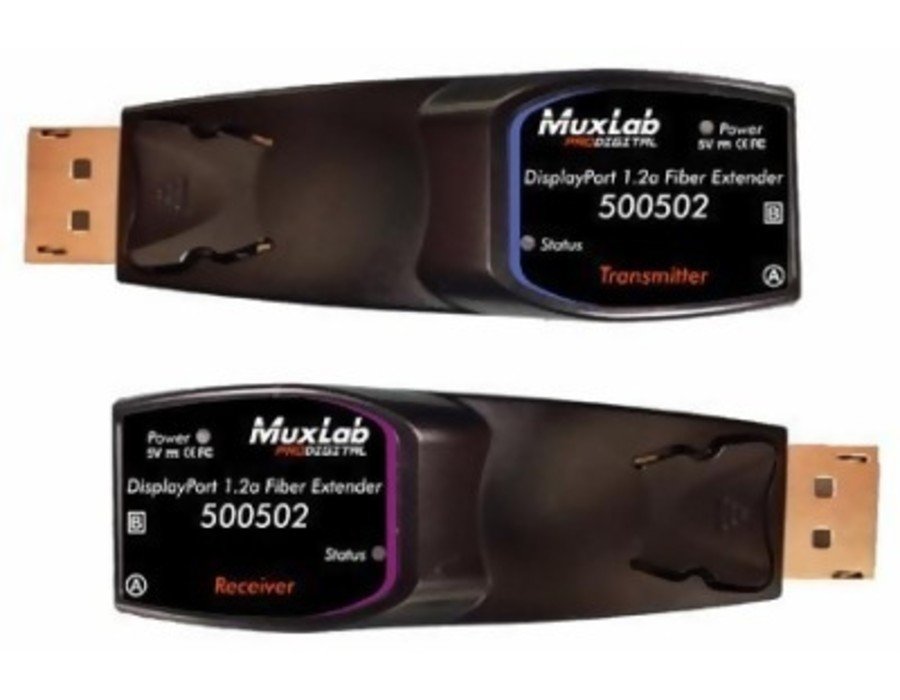

Muxlab MUX-500502
The displayport 1.2A fiber extender kit, 500502 enables the user to transmit wquxga (3840×2400) video at 60hz signal up to 330ft (100m), with any form of scaling or data compression being applied to the signal.
Features
- Extend displayport connectivity via multi-mode fiber
- Supports the displayport 1.2a standard
- Supports wquxga (3840×2400) resolution 60hz
- Bandwidth of 21.6gbps
- Supports dual-mode dp (dp plus plus )
- Supports auxiliary/i2c channel over fiber
- Compact metal enclosure for a robust and easy installation
Specifications
- Operating Temperature: 0 deg to 50 deg C
- Humidity: Up to 85% Non-Condensing
- Enclosure: Metal
- Video Resolution: Up to 3840 x 2400
- Video Bandwidth: 21.6 GBPS
- Transmission: Transparent to the User
- Amperage: 1.2A
- Weight: 3 lbs
