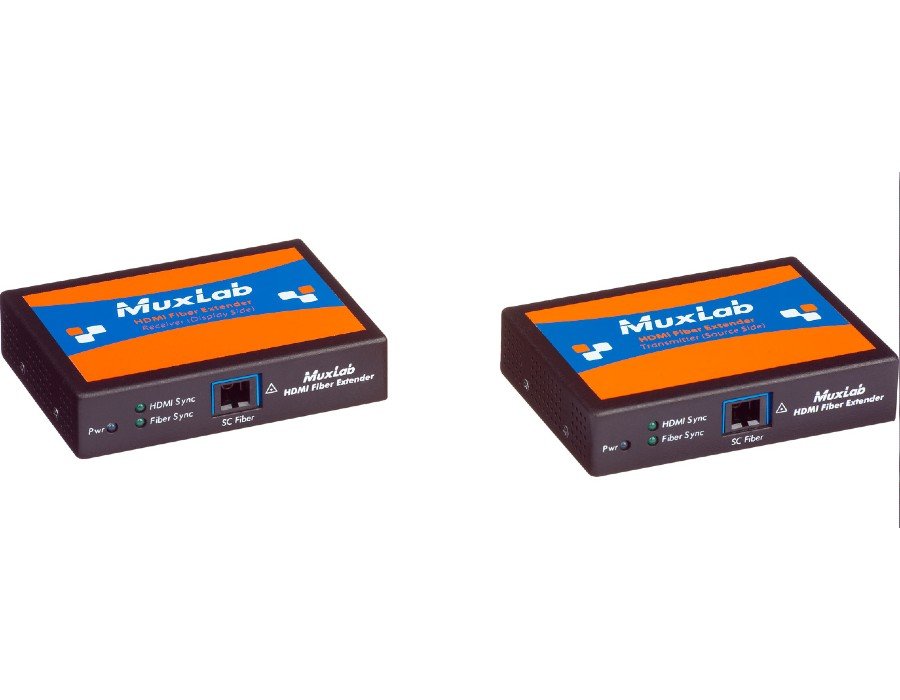

Muxlab MUX-500460
The Muxlab HDMI Fiber Extender Kit from MuxLab is designed to transport DVI signals over extended distances using multimode fiber cables. The Extender Kit includes a transmitter and receiver as well as an IR sensor and emitter for remote control applications.
Features
- Extends HD signals up to 1000′ (305 m)
- Uses Multimode (SC) Fiber Cable
- HDMI 1.3a Compliant
- Includes Transmitter & Receiver
- IR Sensor & Emitter for Remote Control
- Supports RS-232
- For AV & Digital Signage ApplicationsSpecs
- Manufacturer Muxlab, Inc.
- Condition New
- Environment HDMI 1.3a
- Devices DVD, plasma displays, projectors, monitors, TV, PC, laptops, servers supporting HDMI
- Transmission Transparent to the user
- Bandwidth 340 MHz
- Signals HDMI 1.3a protocol
- Cable One multimode fiber 50/125 µm or 62.5/125 µm cable required
- Power Supply 110 to 240 V / 5 VDC
- Power Consumption Transmitter: 2.7 W Receiver: 2.3 W
- Temperature Operating: 32 to 104 ºF (0 to 40 °C) Storage: -4 to 185 ºF (-20 to 85 °C)
- Humidity: Up to 95% non-condensing
- Enclosure Steel
- Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
- Dimensions 4 x 3 x 0.9″ (102 x 76 x 22 mm)
