Muxlab MUX-500425

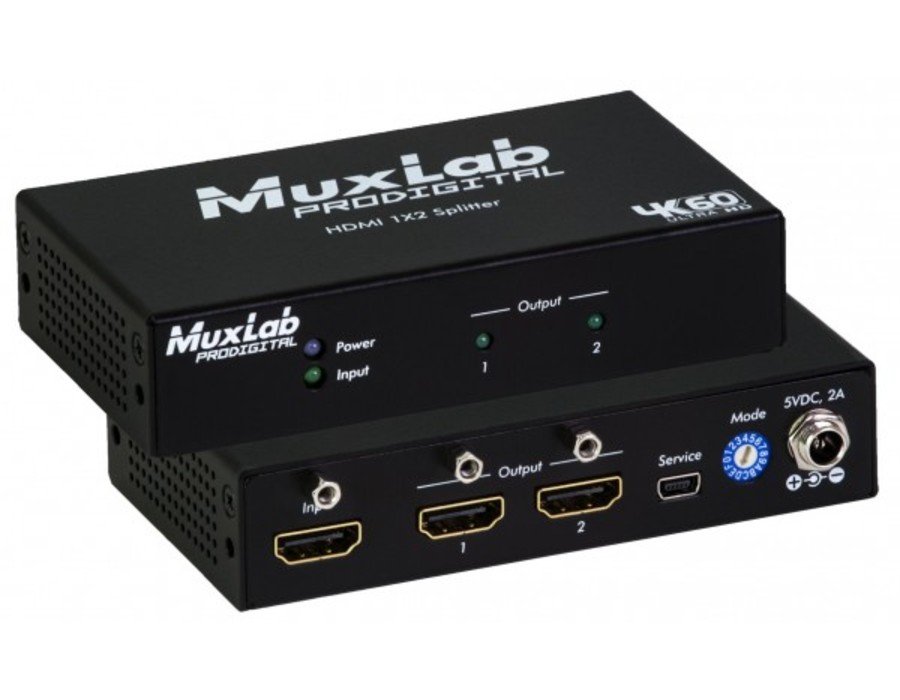

The HDMI 1×2 Splitter, 4K60 (500425) allows one (1) HDMI 2.0 source to be distributed to up to two (2) HDMI displays. The HDMI audio video splitter supports up to 4K (3840 X 2160) video @ 60Hz, HDR, Deep Color and HD audio. The HDMI audio video splitter is HDCP 1.4 & 2.2 compliant, independent down-scaler from 4K to 1080p at each output, and features LED diagnostics. Additionally, all connectors are on the rear panel for neater cabling.
Typical Applications:
- Commercial and residential AV systems
- Classroom training systems
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical video systems
FEATURES
- Distribute one HDMI 2.0 source to two displays
- Supports up to 4K @ 60Hz (4:4:4)
- HDCP 1.4 and 2.2 compliant
- Supports HDR and Deep Color
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- 16 position rotary switch for EDID management
- Independent down-scaler from 4K to 1080p at each output
- LED diagnostic
- Connectors on rear for neater cabling
