JBL VRX932LA-1

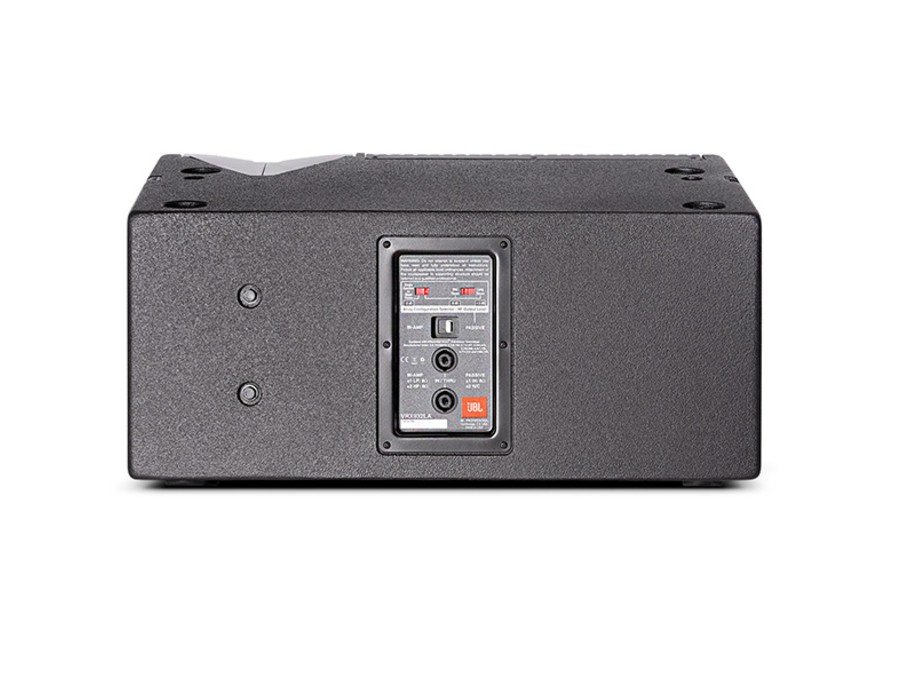

JBL VRX932LA-1 12 in. Two-Way Line Array Loudspeaker System
The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12″ two-way line array speaker system designed for use in arrays of up to six units.
- JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
- VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or
tripod stand. - Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
- Array Configuration Selector permits “array shading” in passive mode.
Specifications
Power Rating 800 W / 1600 W / 3200 W
Frequency Range (-10dB) 57 Hz – 20 kHz
Dimensions (H x W x D) 343mm x 597mm x 376mm (13.5in x 23.5in x 14.8in)
Frequency Response (±3 dB) 75 Hz – 20 Hz
Coverage Pattern 100 x 15 nominal
Crossover Modes Bi-amp / passive, externally switchable
Crossover Frequency 132 dB SPL peak 1.2 kHz
Maximum SPL (1m) 130 dB SPL peak (passive mode)
LF: 130 dB HF: 139 dB
Sensitivity Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
LF Driver 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
HF Driver 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
Nominal Impedance Passive = 8 ohm
Bi-amp LF = 8 ohm
Bi-amp HF = 8 ohm
Active Tunings Tunings available at www.jblpro.com
Enclosure 18 mm, 11-ply birch plywood
Suspension / Mounting Optional VRX932LA-AF line array frame kit
Finish Black DuraFlex™ finish
Grille Power coated, black, 16-guage perforated steel with with acoustically transparent foam
Inputs Neutrik® Speakon® NL-4 (x2)
Net Weight (each) 21 kg (46 lb)
Optional Accessories VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole,41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
Outputs 1 x XLR
System Type Constant Curvature 12″ Two-Way Line Array System
