JBL VRX928LA

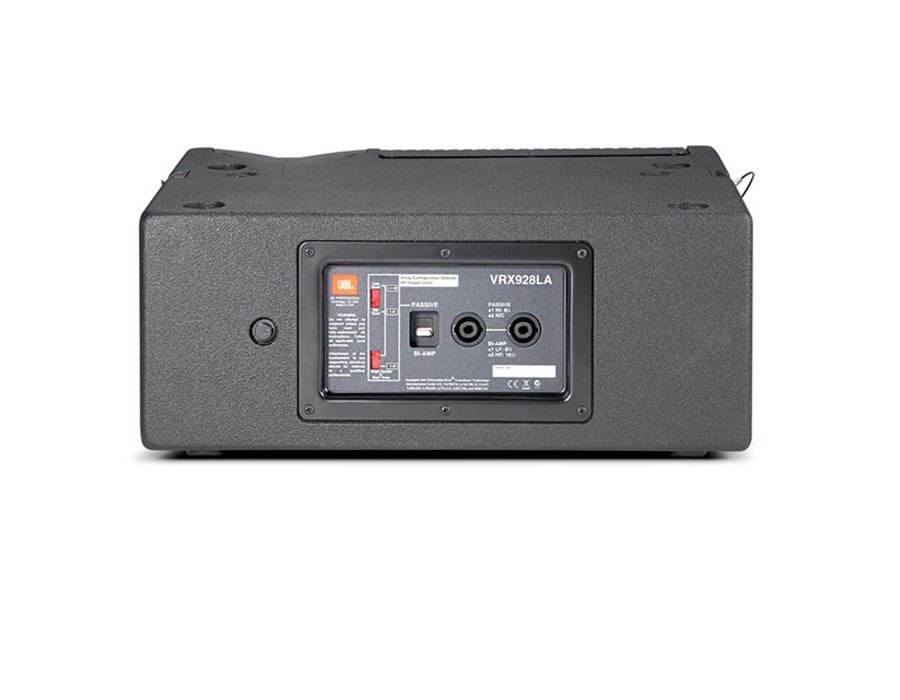

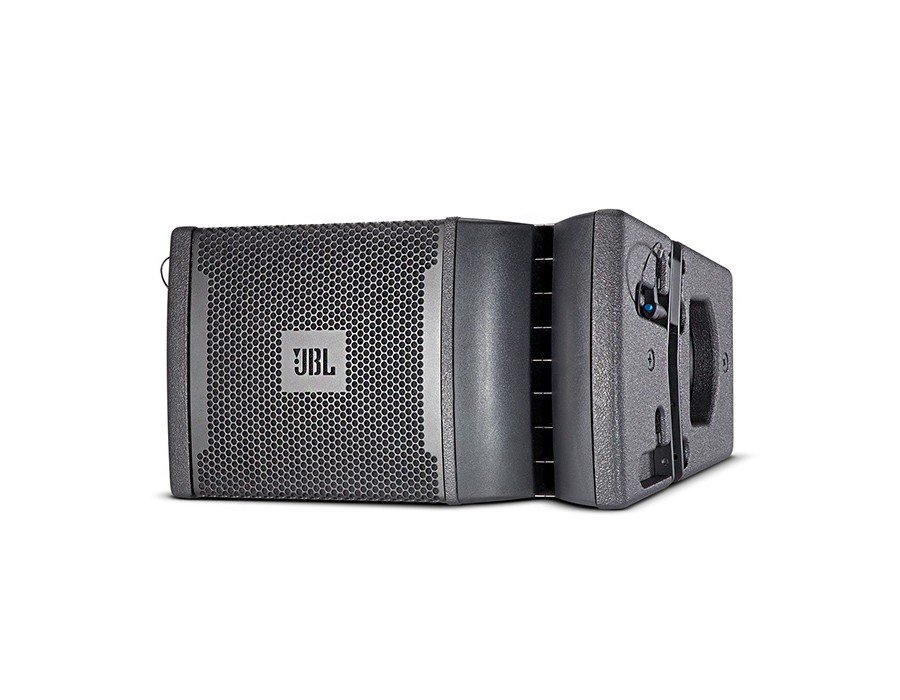

JBL VRX928LA 8 in. Two-Way Line Array Loudspeaker System
The VRX928LA is a lightweight (28 lb / 13 kg) compact 8″ two-way linearray speaker system designed for use in arrays of up to six units.
- Constant Curvature Array – The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
- Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
- Suspension and Rigging.
- Dual Angle Pole Socket – JBL’s dual angle pole sockets allow great flexibility in aiming the enclosure
(not on – WH version) - Differential Drive® Woofer.
Specifications
Power Rating 400 W / 800 W / 1600W
Frequency Range (-10dB) 70 Hz – 20 kHz
Dimensions (H x W x D) 230mm x 420mm x 270mm (9.0in x 16.5in x 10.5in)
Coverage Pattern 100 x 15 nominal
Frequency Response (±3 dB) 85 Hz – 19 Hz
Crossover Modes Bi-amp / passive,
Crossover Frequency 2.0 kHz
Net Weight (each) 12.7 kg (28 lb)
Inputs Neutrik® Speakon NL-4 (x2)
Outputs 1 x XLR
Enclosure Duraflex coated plywood
System Type Constant Curvature 8″ Two-Way Line Array System
Maximum SPL (1m) 122 dB SPL peak (passive mode) LF: 122 dB (bi-amp mode) HF: 128 dB (bi-amp mode)
Nominal Impedance Passive = 8 ohm
Bi-amp LF = 8 ohm
Bi-amp HF = 16 ohm
LF Driver 1 x 200 mm (8 in) Differential Drive® woofer
HF Driver 2 x 25 mm (1.0 in) neodymium compression driver
Suspension / Mounting Dual 36 mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.
