Descripción
JBL VRX918S

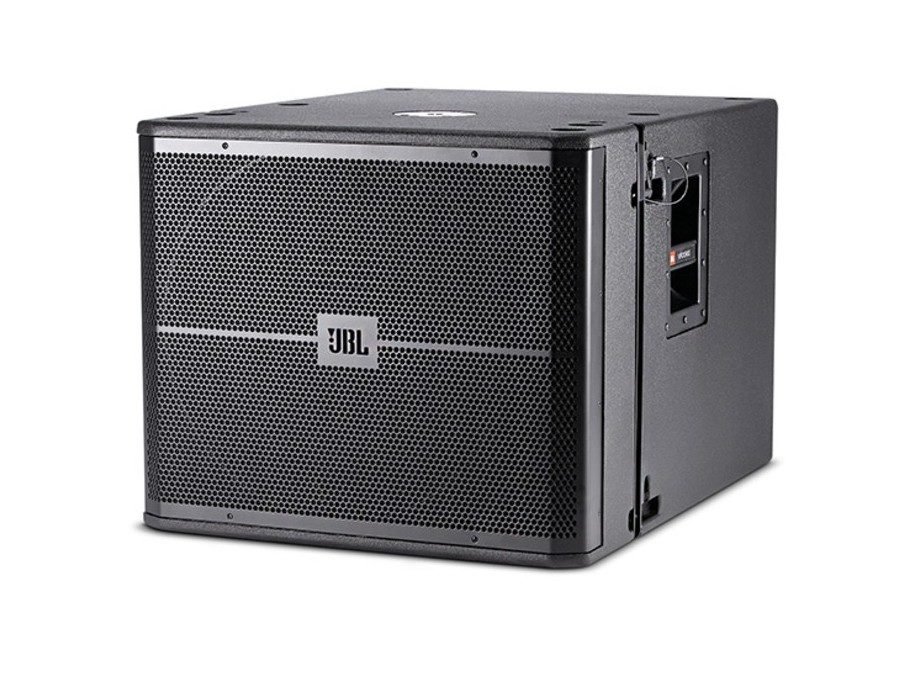

JBL VRX918S 18 in. High Power Powered Flying Subwoofer
The VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive®, 18″ woofer in a front-loaded, vented enclosure.
- Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame.
- 18 inch, 2268H Differential Drive® woofer for extended low-frequency output
- Large port area for reduced distortion
- 20 mm threaded pole socket for solid, secure satellite speaker mounting
Specifications
Power Rating 1500 Watts PeakLF: Dual-Bridged Technology™, Class D
Frequency Range 31 Hz – 220 Hz
Dimensions (H x W x D) 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
Frequency Range (-10dB) 31 Hz – 220 Hz
Maximum Peak Output 126 dB SPL at 1m
Bandpass Nominal Impedance LF: 2 x 2 ohms
LF Driver 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet
Inputs XLR with loop through
User Controls Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.
System Processing DSP based, resident in Input Module
System Management DSP based limiters for mechanical and thermal protection
AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60Hz
AC Line Voltage User selectable: 120V/240V (-15%, +10%)
AC Input Connector Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
AC Current Requirements 6A per system at 120V, 3A per system at 240V
Enclosure 18 mm birch plywood.
Suspension / Mounting Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
Finish Black DuraFlex™ finish
Grille Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Net Weight (each) 38.5 kg (85 lb)
Optional Accessories VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit
Outputs 1 x XLR
Nominal Impedance LF: 2 x 2 ohms
