Descripción
JBL SRX818SP

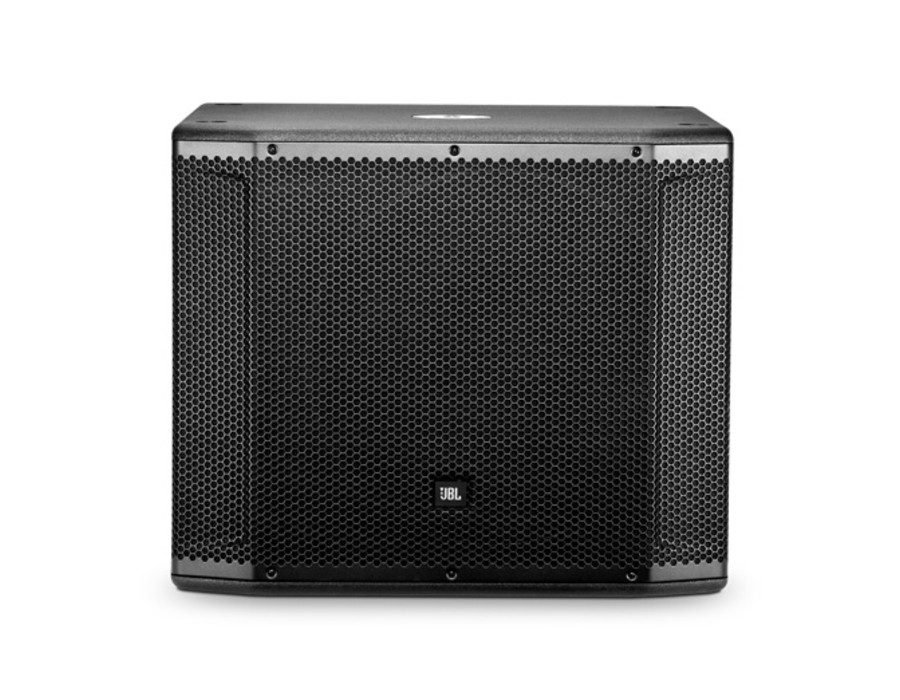

JBL SRX818SP 18″ Self-Powered Subwoofer System
Features
- Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
- JBL Premium Transducers
- Drivecore Amplification By Crown
- Full User Configurable DSP
- 18″ Subwoofer
- Network Control
- JBL Engineered Application Presets

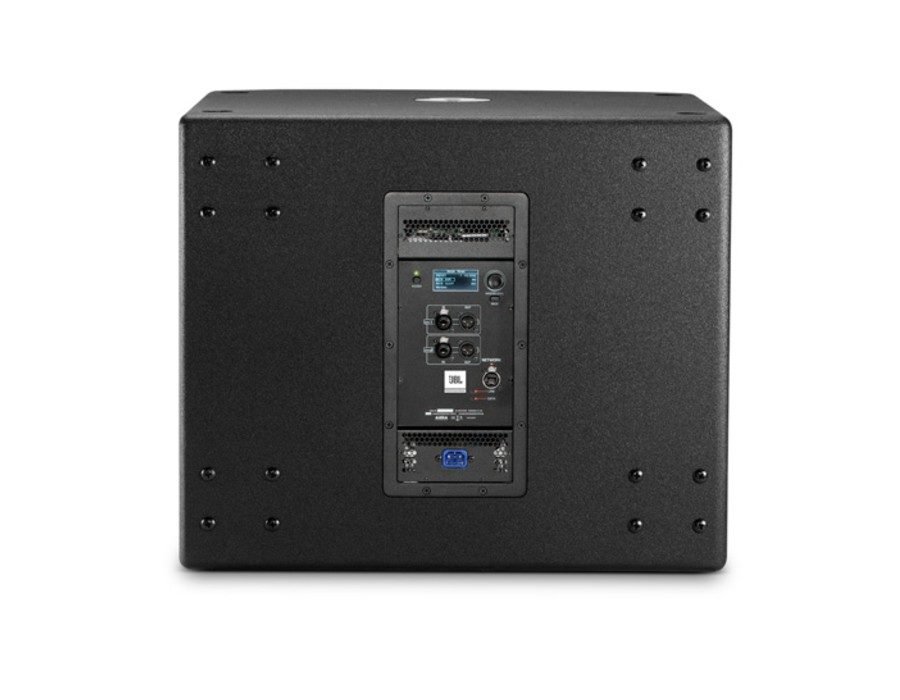

- LCD Screen and Glow in the Dark Ink on Back Panel
- Accepts JBL WK-4S Caster Kit
- M20 Threaded Pole Mount
- Lightweight poplar plywood cabinets made
structurally sound with tongue and groove joints and
protected by JBL’s tour proven DuraFlex™ finish
Applications
- The SRX818SP is a powered portable subwoofer in
the SRX800 series from JBL Professional. It has been
designed to deliver class leading performance in a variety of
applications including small and medium sized installations
and tours. When used in conjunction with the SRX800
full range systems and other SRX800 subs, SRX818SP in
an integral part of a high performance, fully configurable
loudspeaker system.
Specifications
System Type Self powered 18”, subwoofer system
Maximum SPL (1m) 135 dB
Frequency Range (-10dB) 29 Hz – 150 Hz
Frequency Response (-3 dB) 35 Hz – 120 Hz
Amplifier Design Class D
Power Rating 1000 W Peak
Dimensions (H x W x D) 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in)
Net Weight (each) 39.5 kg (87 lb)
EQ 20 parametric EQ’s, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ – XLR input; Neutrik XLR Output
Outputs 2 x XLR
Enclosure 18 mm Duraflex coated plywood
LF Driver 1 x 18 in Differential Drive®
System Processing DSP based, resident in Input Module
