JBL PRX415M-WH

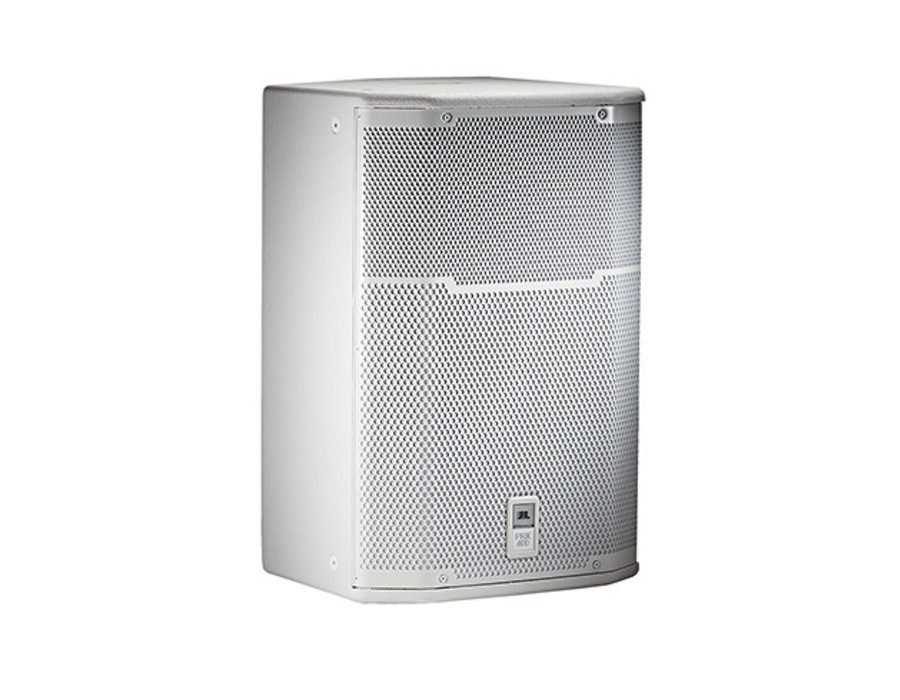

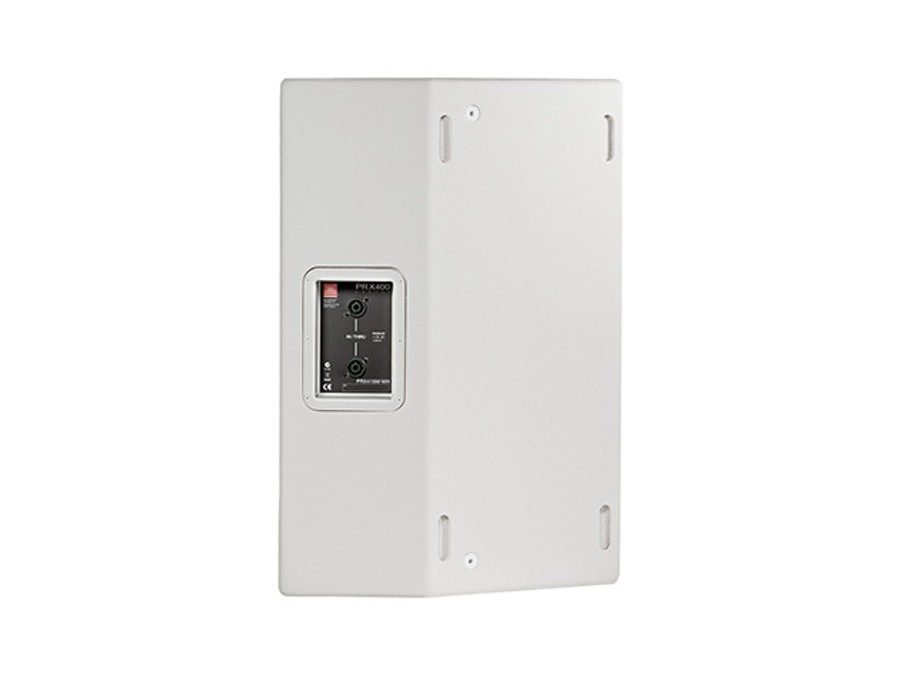

JBL PRX415M-WH 15″ Two-Way White Utility/Stage Monitor Loudspeaker System
PRX415M-WH is a portable, fifteen-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.
- 15″ high-power woofer
- 1″ polymer diaphragm compression driver
- 90° x 50° coverage
- Heavy Duty 16-gauge protective cloth-backed steel grille
- Tough DuraFlex™ enclosure finish
Applications
- The PRX415M-WH is highpower, light-weight two-way loudspeaker system offering a very high level of performance. The PRX415M-WH is comprised of a 380 mm (15 in) woofer which handles 300 watts (continuous) power. For the high frequencies, the 2414H-C 25 mm (1 in) polymer diaphragm compression driver is mounted to a 90° x 50° horn.
- This version is designed for use as a floor monitor or for overhead suspension in a permanent installation application where white enclosures are desirable.
Specifications
Frequency Range (-10dB) 55 Hz – 19 kHz
Frequency Response (±3 dB) 66 Hz – 16 kHz
Coverage Pattern 90° x 50° nominal
System Sensitivity 98 dB SPL (1w@1m)
Power Rating, Pink Noise 300 W / 600 W / 1200 W(Continuous/Program/Peak)
Maximum SPL (1m) 122 dB SPL cont. (129 dB SPL peak)
Nominal Impedance 8 ohms
Dimensions (H x W x D) 650 mm x 429 mm x 457 mm(25.6″ x 16.9″ x 18″)
Net Weight 21 kg (46 lbs.)
