Descripción
JBL PRX415M

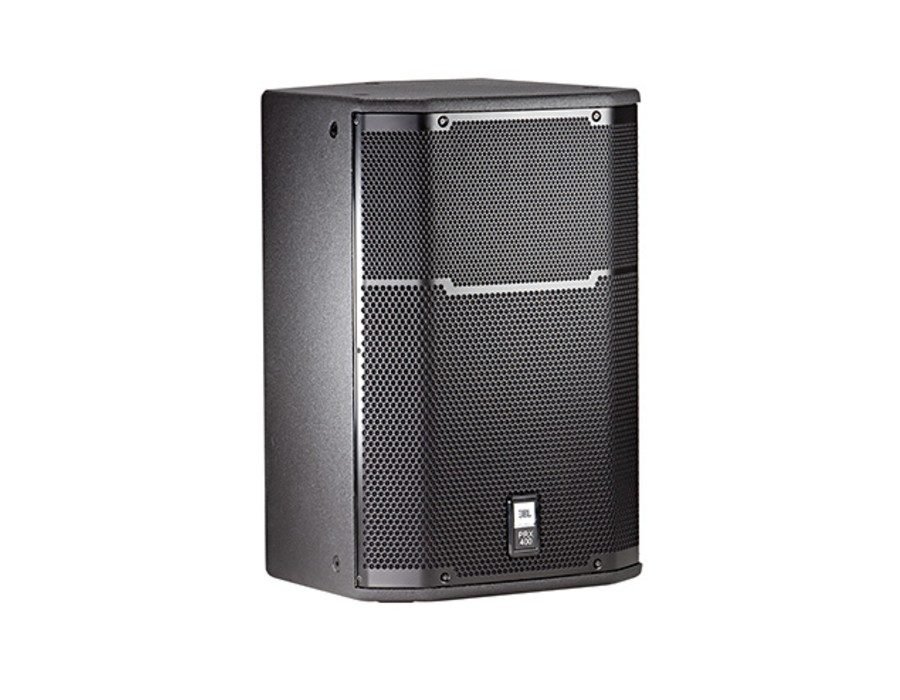

JBL PRX415M 15″ Two-Way Stage Monitor and Loudspeaker System
PRX415M is a portable, fifteen-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.
- 90° x 50° coverage
- Dual-angle pole socket for applications requiring tripod mounting
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex™ enclosure finish
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
Applications
The PRX415M is high-power, light-weight two-way loudspeaker system offering a very high level of performance from a speaker that can be placed on a pole or standard speaker tripod stand. The PRX415M is comprised of a 380 mm (15 in) woofer which handles 300 watts (continuous) power. For the high frequencies, the 2414H-C 25 mm (1 in) polymer diaphragm compression driver is mounted to a 90° x 50° horn.
Specifications
Frequency Range (-10dB) 55 Hz – 19 kHz
Frequency Response (±3 dB) 66 Hz – 16 kHz
Coverage Pattern 90° x 50° nominal
System Sensitivity 98 dB SPL (1w@1m)
Power Rating, Pink Noise 300 W / 600 W / 1200 W(Continuous/Program/Peak)
Maximum SPL (1m) 122 dB SPL cont. (129 dB SPL peak)
Nominal Impedance 8 ohms
Dimensions (H x W x D) 650 mm x 429 mm x 457 mm (25.6″ x 16.9″ x 18″)
Net Weight 21 kg (46 lbs.)

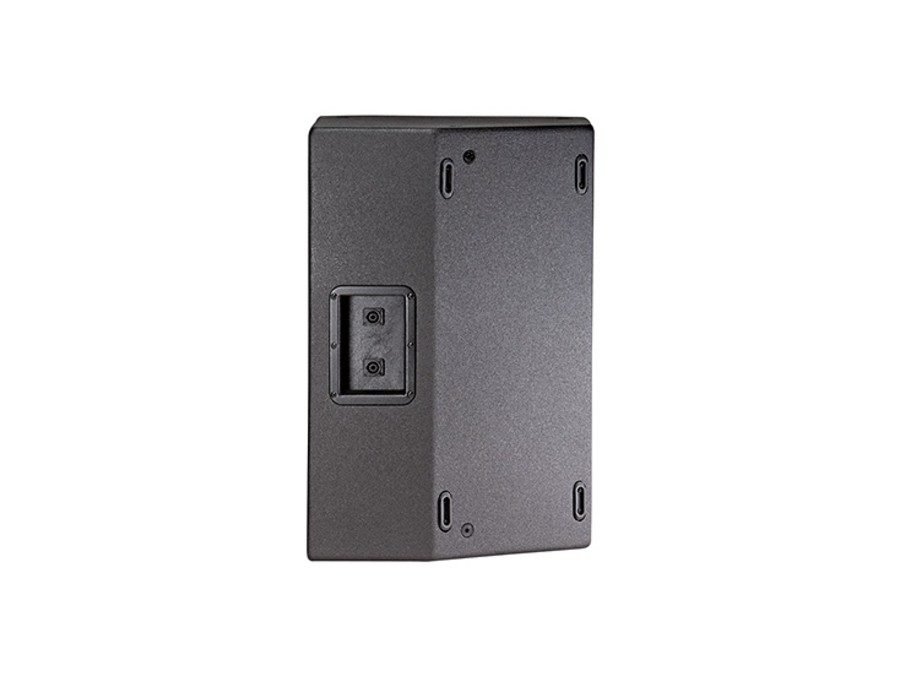

Inputs Parallel Neutrik® Speakon® NL-2 / ¼» phone combo jacks
Enclosure Duraflex coated plywood
