JBL PRX412M-WH

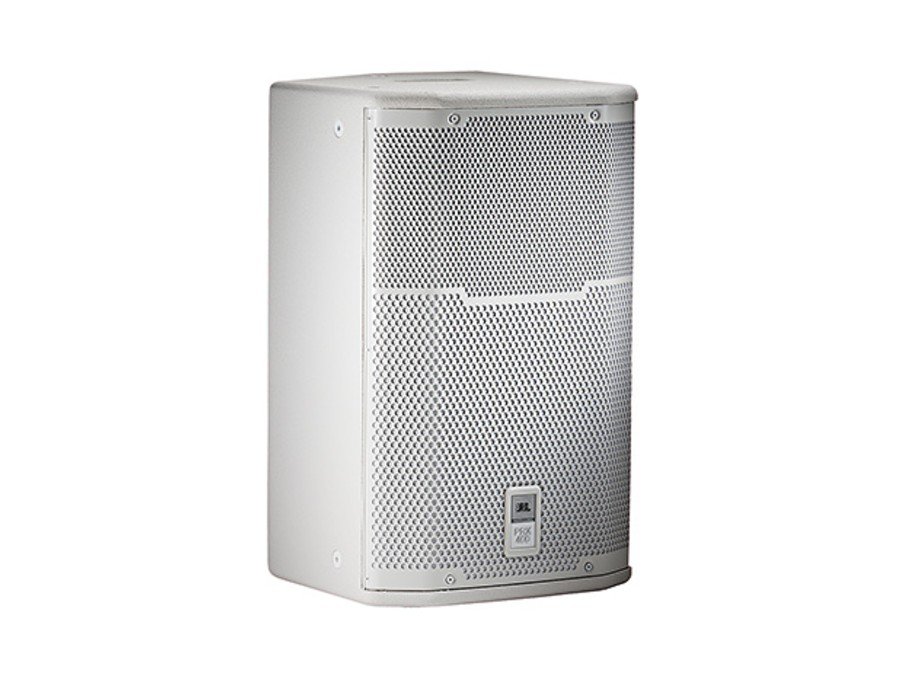

JBL PRX412M-WH 12″ Two-Way White Utilitly/Stage Monitor Loudspeaker System
PRX412M-WH is a portable, twelve-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.
- 12″ woofer
- 1″ polymer diaphragm compression driver
- Compact and low-profile for minimal obstruction of audience sight-lines
- 90° x 50° coverage for even and smooth response on and off axis
- Heavy Duty 16-gauge protective screen-backed steel grille
- Tough DuraFlex™ enclosure finish
Applications
The PRX412M-WH is a premium, utility/monitor speaker. The PRX412M-WH uses a 305 mm (12 in) woofer and a 2414H-C 25 mm (1 in) polymer diaphragm compression driver for 300 watts (continuous) power capacity. A 90° x 50° horn provides smooth, even coverage whether used in the vertical (mains) or horizontal (monitor) orientation.
Specifications
Frequency Range (-10dB) 50 Hz – 20 kHz
Frequency Response (±3 dB) 62 Hz – 19 kHz
Coverage Pattern 90° x 50° nominal
System Sensitivity 95 dB SPL (1w@1m)
Power Rating, Pink Noise 300 W / 600 W / 1200 W(Continuous/Program/Peak)
Maximum SPL (1m) 126 dB SPL peak
Nominal Impedance 8 ohms
Dimensions (H x W x D) 574 mm x 353 mm x 399 mm(22.6 in x 13.9 in x 15.7 in)
Net Weight 16 kg (35 lbs.)
