Descripción
JBL PRX412M

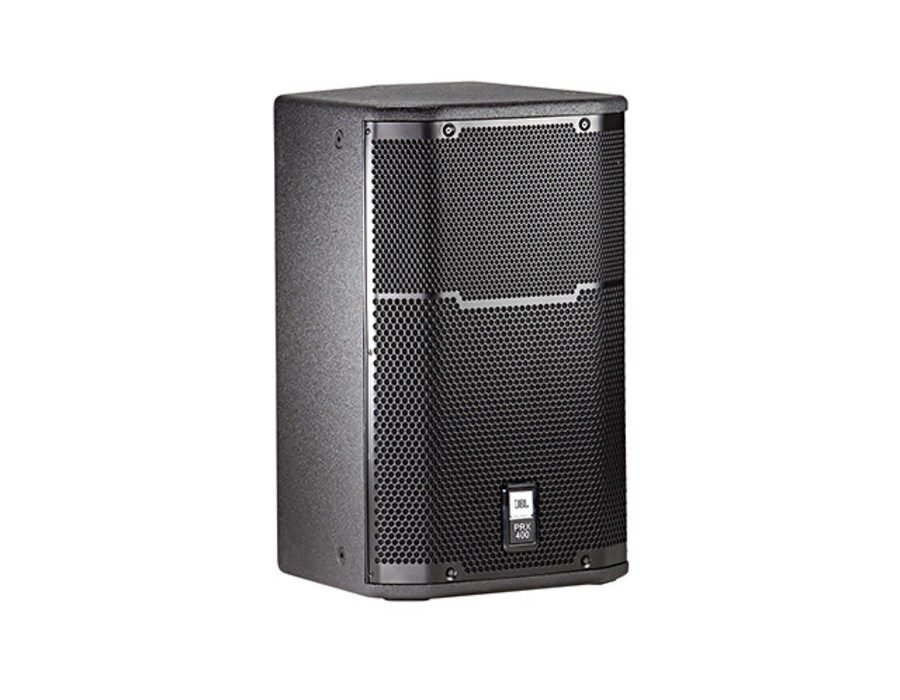

JBL PRX412M 12″ Two-Way Stage Monitor and Loudspeaker System
PRX412M is a portable, twelve-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.
- 90° x 50° coverage for even and smooth response on and off axis
- Dual-angle pole socket for applications requiring tripod mounting
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex™ enclosure finish
- Utilizes twelve M10 suspension points for safe deployment in light duty installations.
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
Applications
The PRX412M is a premium,
utility/monitor speaker. The PRX412M
uses a 305 mm (12 in) woofer and a
2414H-C 25 mm (1 in) polymer
diaphragm compression driver for
300 watts (continuous) power capacity.
A 90° x 50° horn provides smooth,
even coverage whether used in the
vertical (mains) or horizontal (monitor)
orientation.
Specifications
Frequency Range (-10dB) 50 Hz – 20 kHz
Frequency Response (±3 dB) 62 Hz – 19 kHz
Coverage Pattern 90° x 50° nominal
System Sensitivity 95 dB SPL (1w@1m)
Power Rating, Pink Noise 300 W / 600 W / 1200 W(Continuous/Program/Peak)
Maximum SPL (1m) 126 dB SPL peak
Nominal Impedance 8 ohms
Dimensions (H x W x D) 574 mm x 353 mm x 399 mm (22.6 in x 13.9 in x 15.7 in)
Net Weight 16 kg (35 lbs.)
Inputs Parallel Neutrik® Speakon® NL-2 / ¼» phone combo jacks
Enclosure Duraflex coated plywood
