JBL Control 85M

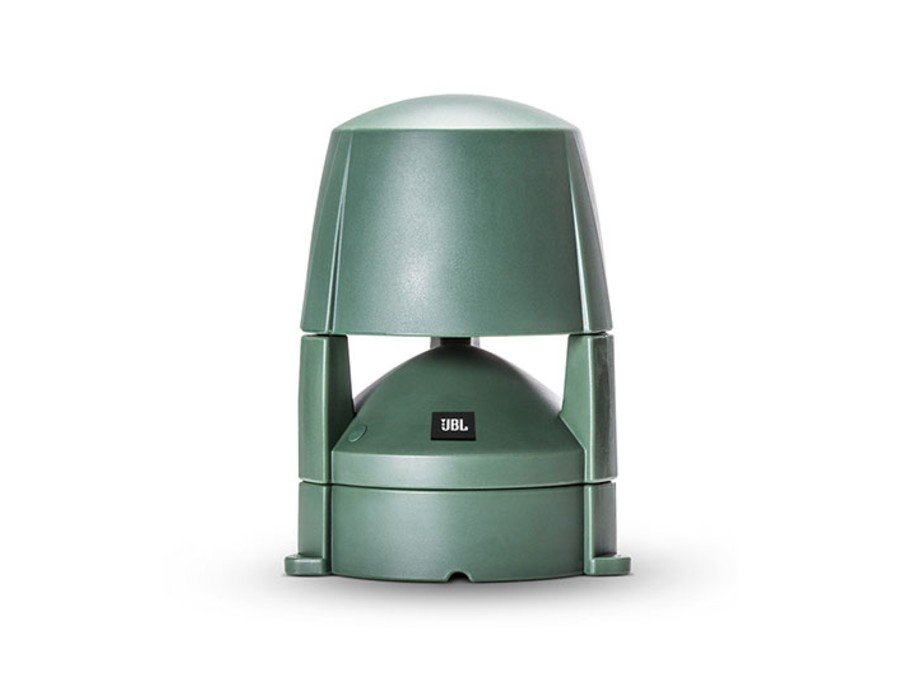

JBL Control 85M Two-Way 5.25 inch (135mm) Coaxial Mushroom Landscape Speaker
Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.
- Components:
• 5¼” highly weather-resistant driver
• ¾” soft-dome highly weather-resistant tweeter - 80W Pink Noise Power Handling (160W program) in direct 8Ώ setting, plus built-in 30W 70V/100V multi-tap transformer
- Tough polyethylene highly weather resistant enclosure
- Fully isolated center chamber for wiring protection
- High fidelity sound character with broad frequency range of 55Hz – 18kHz
Specifications
Frequency Range (-10dB) 55 Hz – 18 kHz
Power Rating 160 W Continuous Program (2 hrs) 80 W (320W peak), Continuous Pink Noise (2 hrs) 45 W (180W peak) Continuous Pink Noise (100 hrs)
Transformer Taps 70V: 30W, 15W, 7.5W & 3.8W 100V: 30W, 15W, 7.5W
Frequency Response (±3 dB) 65Hz – 16 kHz
Maximum Input Voltage 23.3 V
Sensitivity 86 dB, 1W @ 1m (ave. 80Hz – 16kHz)
Coverage Angle 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground).
Directivity Factor (Q) 2.2
Directivity Index (DI) 3.4 dB
Maximum SPL (1m) 105 dB
Impedance 8Ω (at 8Ω setting)
Insertion Loss <1.0 dB at any tap setting
Thru Setting 8Ω nominal
Crossover Type 2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass 65 Hz for 8Ω operation, 24 dB/oct 60 Hz for 30W tap, 24 dB/oct 50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct
LF Driver LF: 135 mm (5.25 in) diameter LF driver, Kapton™ former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround.
HF: 19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated
Grille Powder coated stainless steel.
Outdoor Capability IP-56 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Safety Agency UL1480, Transformer UL Recognized per UL1876, ROHS compliant.

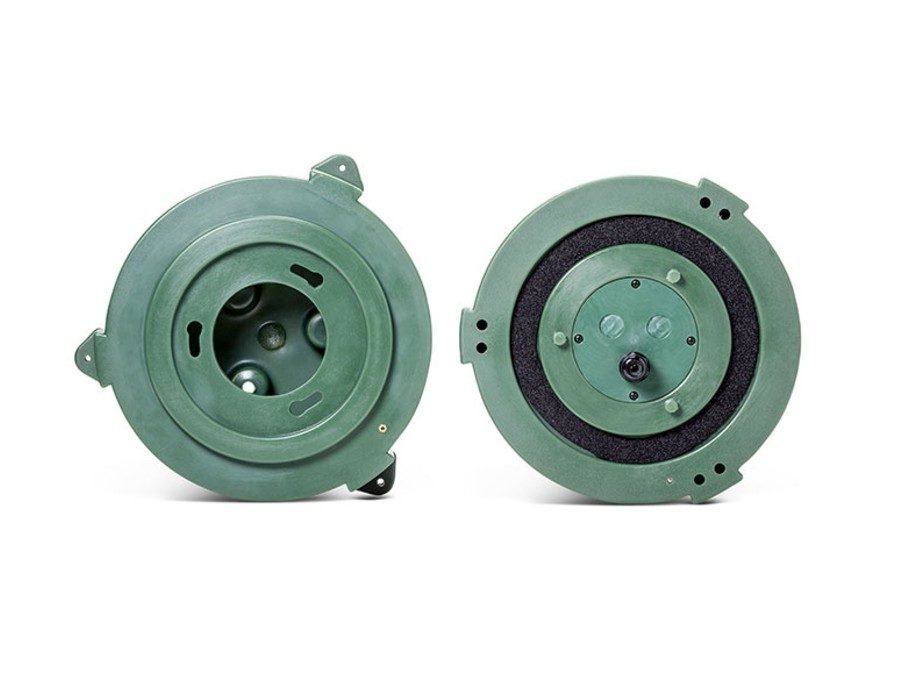

Wiring Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For installation instructions see Installation Guide (# IS C80MLS).
