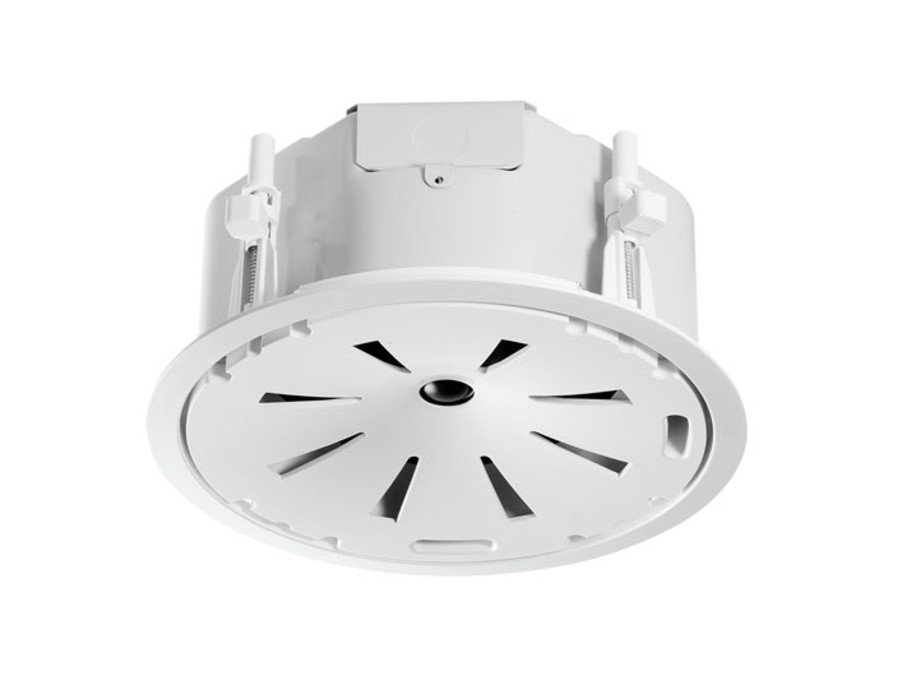

JBL Control 47LP
JBL Control 47LP Low Profile
Built on the same platform as the Control 47C/T, the Control 47LP is a low-profile model intended for locations with limited above-ceiling clearance (only 5.6 inches deep). The system features the same great sonic character and wide 120° of coverage as the Control 47C/T and is perfect for settings ranging from restaurant and retail to large casinos and beyond.
- Shallow Backcan Version of 47C/T for locations with limited clearance
- Same Sonic Signature as Control 47C/T Allows Mixing & Matching of mode
- Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
- Flat Frequency Response and Superior Performance
- Elegant design fits any décor
Specifications
Frequency Range 68 Hz – 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
150 Watts Continuous Program Power
75 Watts Continuous Pink Noise (300W peak), hrs
Sensitivity 91 dB (1kHz – 16 kHz)
Transformer Taps 60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass
Coverage Angle 120° conical, constant directivity
Impedance 8 ohms (in bypass mode)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 25 mm (1 in)
Input Connectors Two removeable locking 2-pin connectors with screwdown terminals
Included Accessories C-rings, tile rails, paint shield, cutout template, Grille
Dimensions (Diameter x Depth) 305mm Diameter x 142mm Diameter Depth (12.0 in x 5.6 in)
Maximum SPL (1m) 110 dB (low-impedance, 116 dB peak)
109 dB (top 70V/100V tap)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

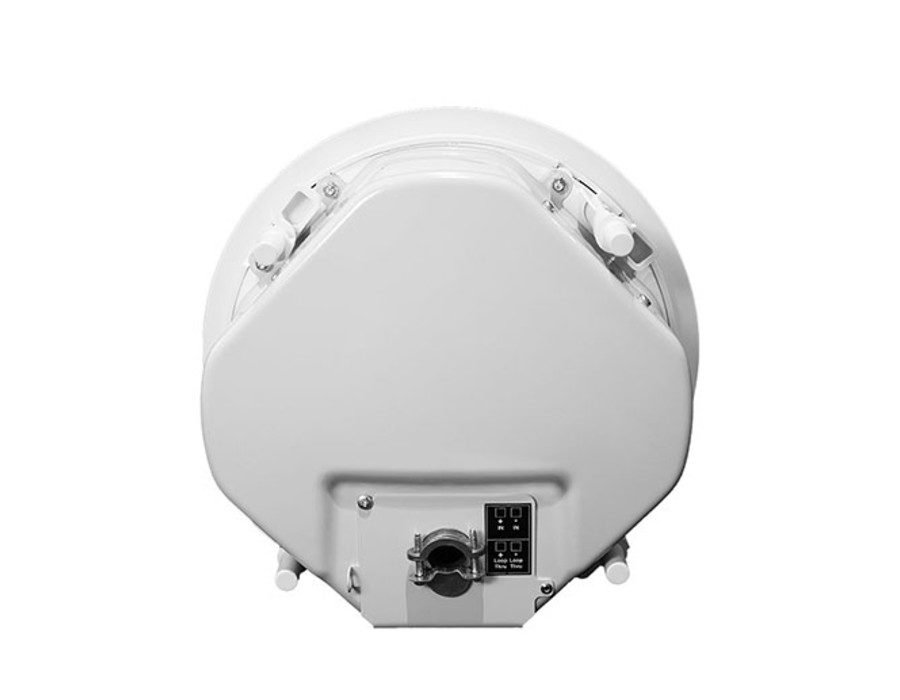

Backcan formed steel (included «blind-mount»)
Baffle/Rim ABS baffle with UL94-V0 flame class fire rating.
Ceiling Cutout Size 282 mm Diameter (11.1 in) (cardboard cutout template included)
Optional Accessories MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
