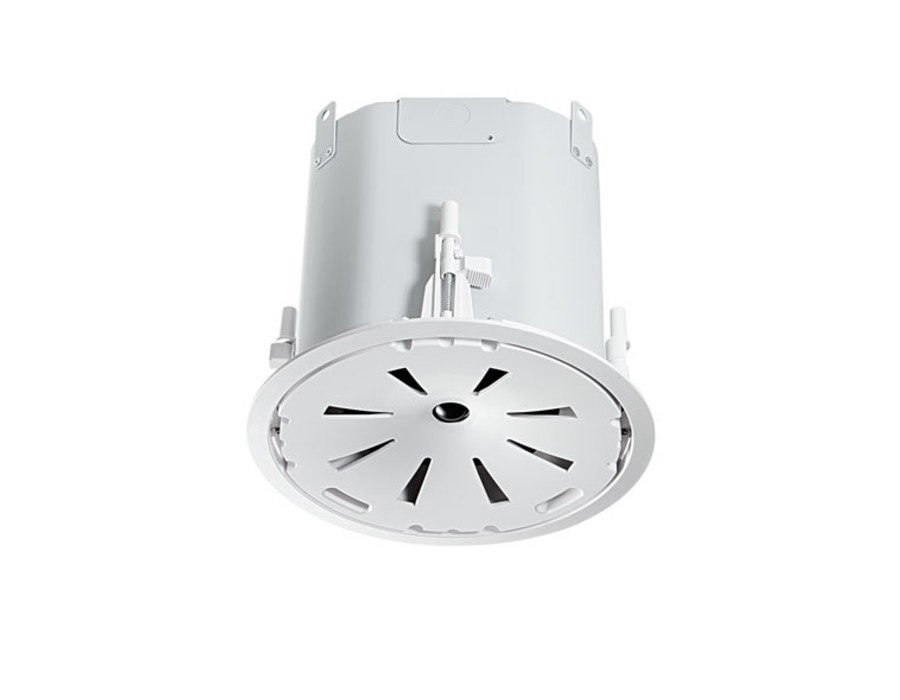

JBL Control 47C/T
JBL Control 47C/T Consistent Coverage Extended Bass
The Control 47C/T features extended bass performance with a wide 120° of coverage that allows fewer speakers to cover a large space. Ideal for a wide variety of applications, the Control 47C/T is perfect for settings ranging from restaurant and retail to large casinos and beyond.
- Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
- Flat Frequency Response and Superior Performance
- Large Backcan for Bass Response to 55 Hz
- Elegant design fits any décor
Specifications
Frequency Range 55 Hz – 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
150 Watts Continuous Program Power
75 Watts Continuous Pink Noise (300W peak), hrs
Sensitivity 91 dB (1kHz – 16 kHz)
Transformer Taps 60W, 30W, 15W (7.5W at 70V only)
Coverage Angle 120° conical, constant directivity
Impedance 8 ohms (in bypass mode)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 25 mm (1 in)
Input Connectors Two removeable locking 2-pin connectors with screwdown terminals.
Included Accessories C-rings, tile rails, paint shield, cutout template, Grille
Suspension Tabs Three, on top panel
Dimensions (Diameter x Depth) 305mm Diameter x 259mm Diameter Depth (12.0 in x 10.2 in)
Maximum SPL (1m) 110 dB (low-impedance, 116 dB peak)
109 dB (top 70V/100V tap)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included «blind-mount»)
Baffle/Rim ABS baffle with UL94-V0 flame class fire rating
Ceiling Cutout Size 282 mm Diameter (11.1 in) (cardboard cutout template included)
Optional Accessories MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
Plenum Usage Yes, backcan included
