JBL Control 26CT

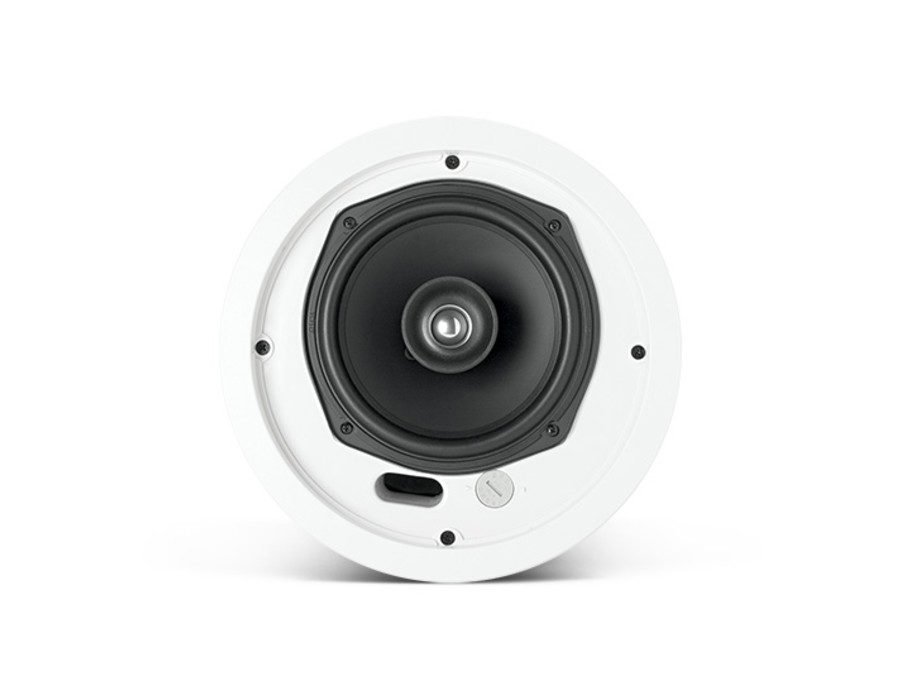

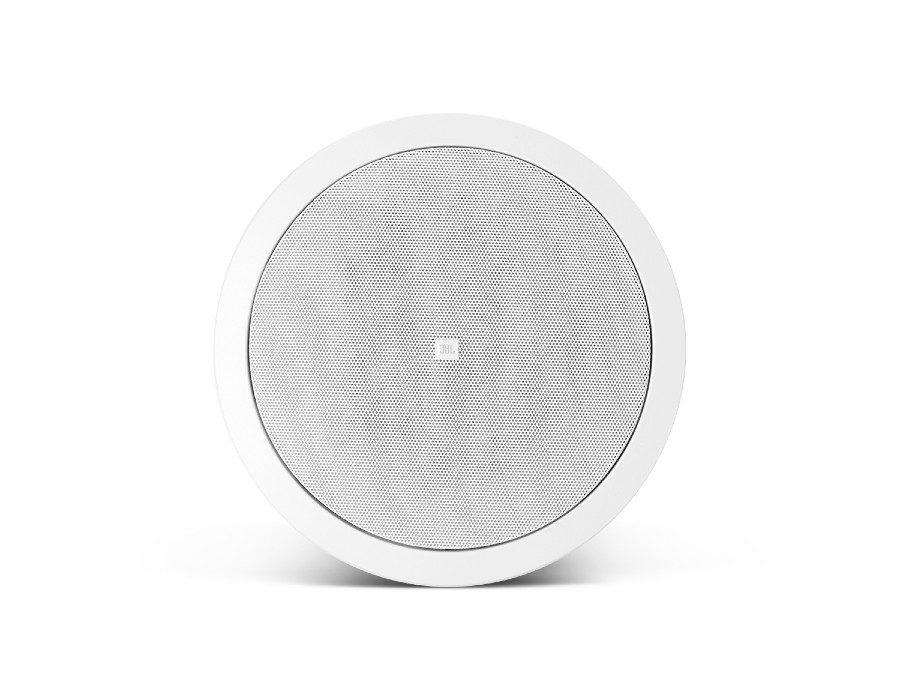

JBL Control 26CT 6.5″ Ceiling Loudspeaker Transducer Assembly
The Control 26CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5″ woofer and 3/4″ titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system.
- Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
- High power, wide frequency response and low distortion for high sound level capability.
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Specifications
Frequency Range 75 Hz – 20 kHz
Power Rating See transformer taps
Transformer Taps 60W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle 110° conical
Directivity Index (DI) 4.6 dB
Maximum SPL (1m) 107 dB (top 70V/100V tap)
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (¾ in)
Input Connectors Removable 4-pin locking connector with screw-down terminals.
Dimensions (H x Dia) 210 mm x 252 mm (8.3 in x 9.9 in)
Net Weight (each) 4.2 kg (10 lbs)
Shipping Weight (pair) 9.7 kg (21 lbs)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included «blind-mount»)
Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
Ceiling Cutout Size 220 mm (8.75 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
