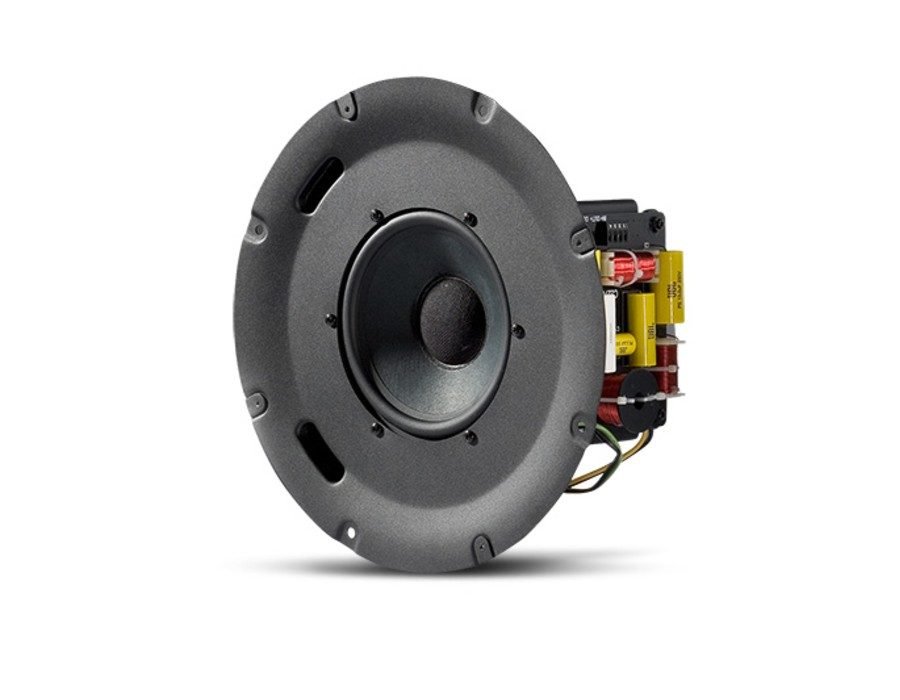

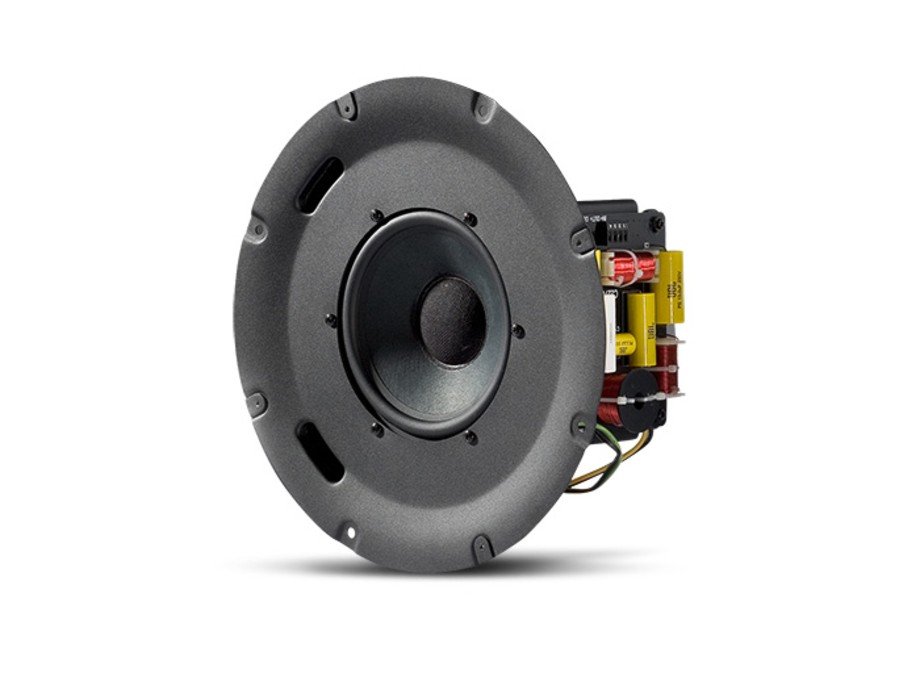

JBL Control 227C
JBL Control 227C 6.5″ Coaxial Ceiling Loudspeaker with HF Compression Driver For Use with Pre-Install Backcan
The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in ceilingmount applications.
- Consistent 120° broadband pattern control for exceptional coverage.
- Coaxial design featuring:
Kevlar-reinforced 165 mm (6.5 in) woofer.
25 mm (1 in) compression driver. - Extraordinary clarity for speech and vocals with extended frequency response for music.
- 150 Watts Power Handling.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Separate back can and contemporary grille available.
(sold separately)
Specifications
Frequency Range (-10dB) 43 Hz – 19 kHz
Power Rating IEC Long-Term System Power Rating: 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise (400 W peak), 100 hrs
Sensitivity 90 dB (1 kHz – 16 kHz)
Coverage Angle 120 degrees
Frequency Response (-3 dB) 75 Hz – 17 kHz
Impedance 8 ohms
Drivers LF Driver: 165 mm (6.5 inch)
HF Driver: compression driver, 25 mm (1 inch) coil
Color White
Dimensions (H x Dia) Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
Net Weight (each) 4.1 kg (9.0 lb)
Shipping Weight (pair) 227C: 5.4 kg (12.0 lb)
Maximum SPL (1m) 112 dB (118 dB peak)
Input Connectors Screw locking barrier strip for bare wire
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (wood-lined; accessory)
Baffle/Rim Metal, round, driver pre-mounted to baffle, ported.
Ceiling Cutout Size 310 mm (12.2 in) diameter (for MTC-200BB6 backcan)
Optional Accessories MTC-200BB6 Back Can (0.7 cu ft) MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge Also compatible with MTC-300BB8 backcan (1.0 cu ft)
Plenum Usage Yes, with accessory backcan
