JBL Control 16C/T

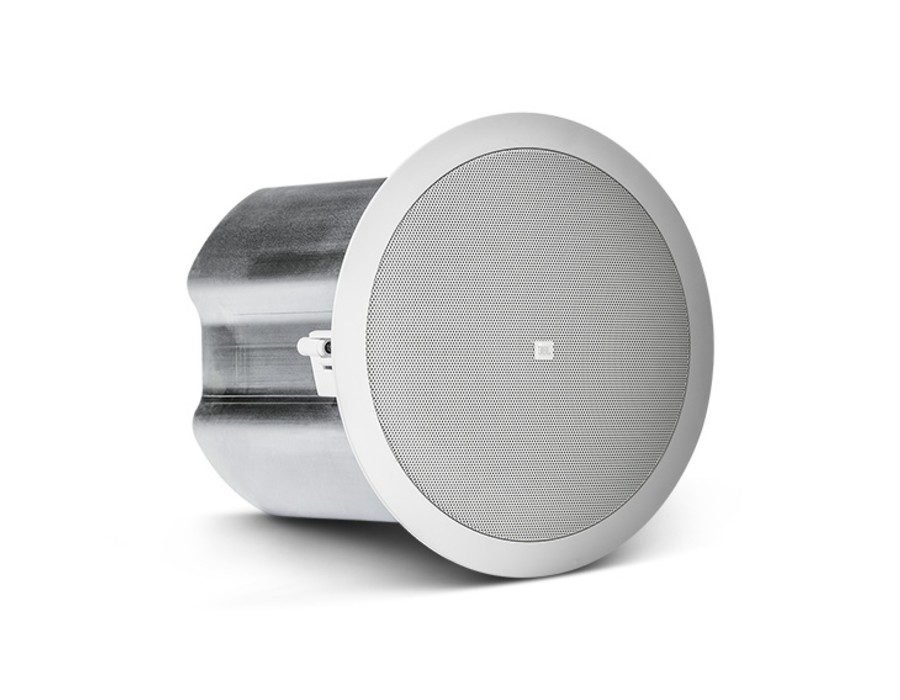

JBL Control 16C/T Two-Way 6.5″ Coaxial Ceiling Loudspeaker
Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.
- Components:
• 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter - Blind-mount backcan for quick and easy install
- Dual conduit/cable clamps
- Combined 70V/100V and low impedance direct operation
•50 Watts at 8Ω nominal setting
• 30W multi-tap at 70V/100V - 62 Hz – 20 kHz bandwidth with wide 110° coverage
- High 91 dB sensitivity for high maximum SPL

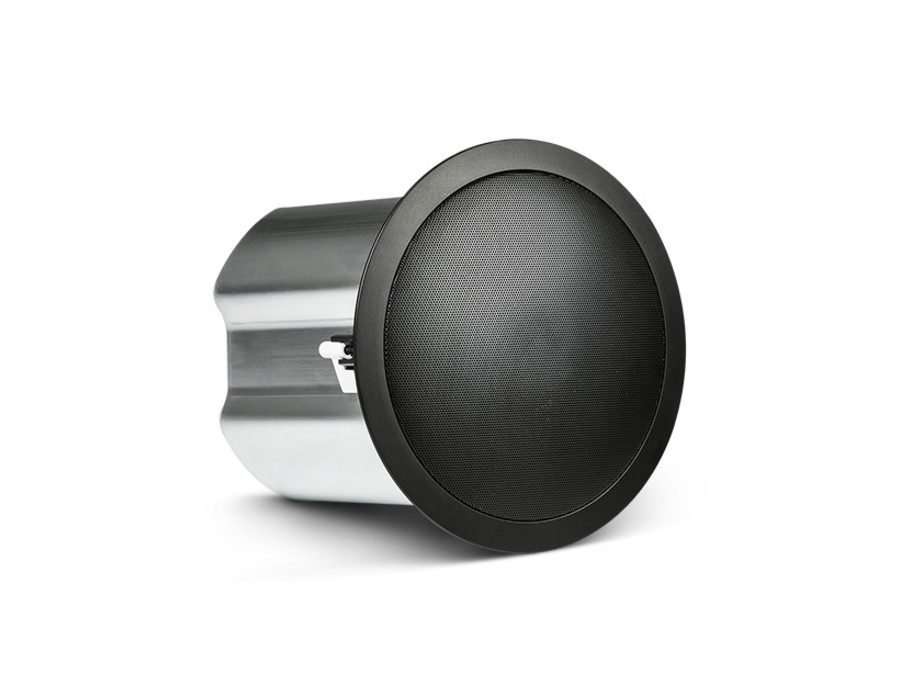

- White or black (-BK)
Specifications
Frequency Range (-10dB) 62 Hz – 20 kHz
Power Rating IEC System Long-Term Ratings (low-Z direct):
100 Watts Continuous Program Power
50 Watts Continuous Pink Noise (200W peak), 100 hr
Transformer Taps 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
Frequency Response (±3 dB) 96 Hz – 15 kHz
Sensitivity 91 dB (1kHz – 16 kHz)
Coverage Angle 110° conical
Directivity Factor (Q) 7.8
Directivity Index (DI) 8.2 dB
Maximum SPL (1m) 108 dB (low-impedance, 116 dB peak)
106 dB (top 70V/100V tap)
Impedance 8 ohms (in direct/bypass setting)
Crossover Network 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
Drivers LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (3/4 in)
Input Connectors Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
