JBL CBT 50LA-1

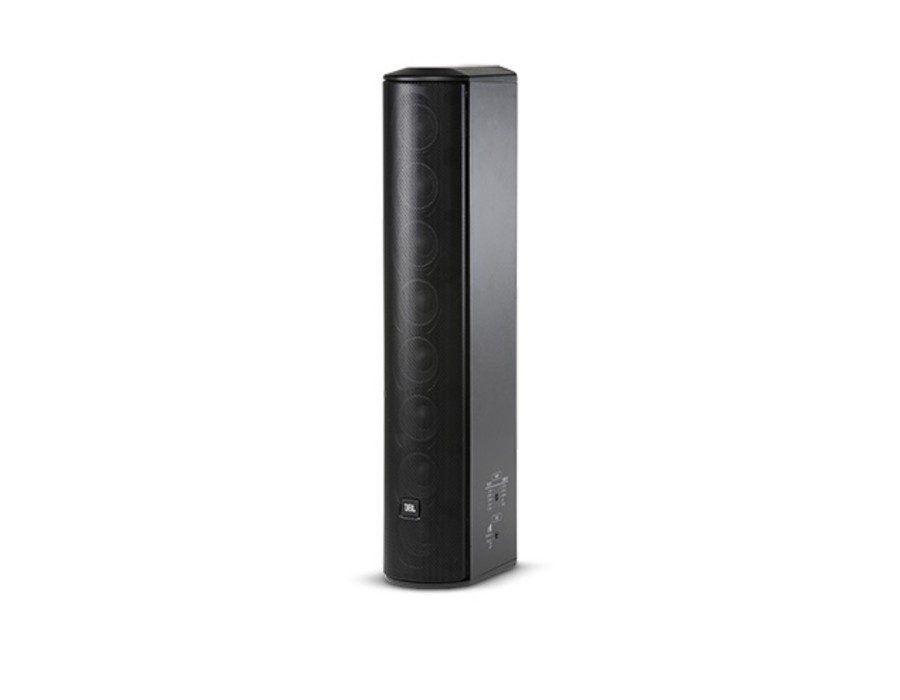

JBL CBT 50LA-1 Constant Beamwidth Technology™ Line Array Column Loudspeaker
The CBT 50LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.
- Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
- Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
- Dynamic SonicGuard™ overload protection
- Built-in 70V/100V transformer, plus 8 ohm direct capability.
- Swivel (pan) / tilt wall bracket included.
Specifications

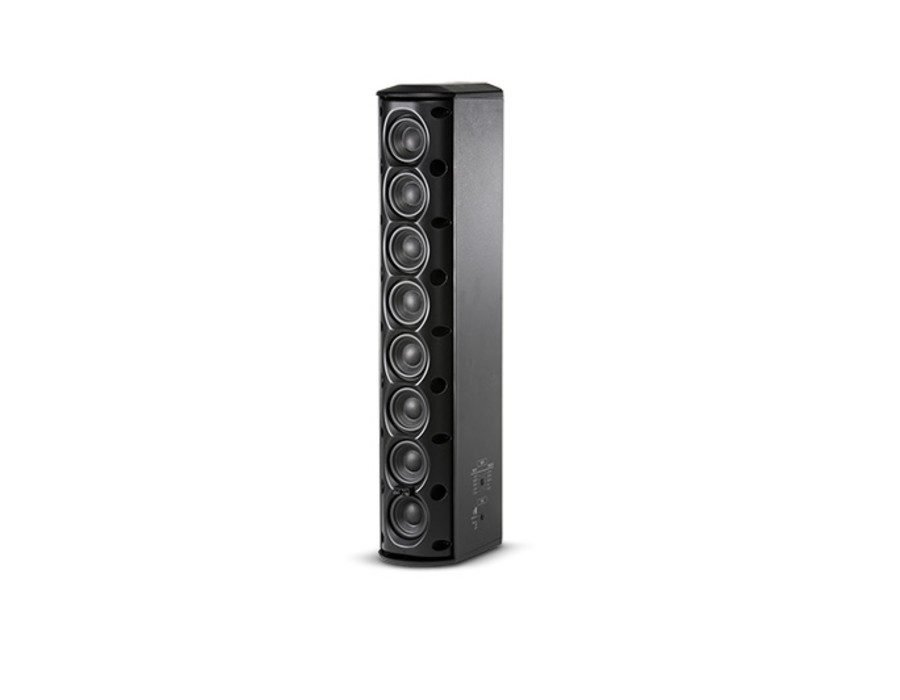

Drivers Eight 50 mm(2 in) Full-Range
Frequency Range (-10dB) 80 Hz – 20 kHz
Coverage Angle Vertical 20° (1.5 kHz – 16 kHz, ±10°)
Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity 93 dB (speech mode, 2 kHz – 14 kHz)89 dB (music mode, 300 Hz – 18 kHz)
Impedance 8 ohms
Power Rating 150W (600W peak), 2 hrs
100 W (400W peak), 100 hrs
Maximum SPL (1m) Speech mode: 115 dB cont ave (121 peak)
Music mode: 111 dB cont ave (117 peak)
Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color Black or White (-WH)
Insert Points Ten M6 insert points on back panel.
Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt — see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D) 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in)
Net Weight 4.1 kg (9.0 lb)
Included Accessories Swivel (pan) / tilt wall bracket
Optional Accessories MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
