JBL ASB6128

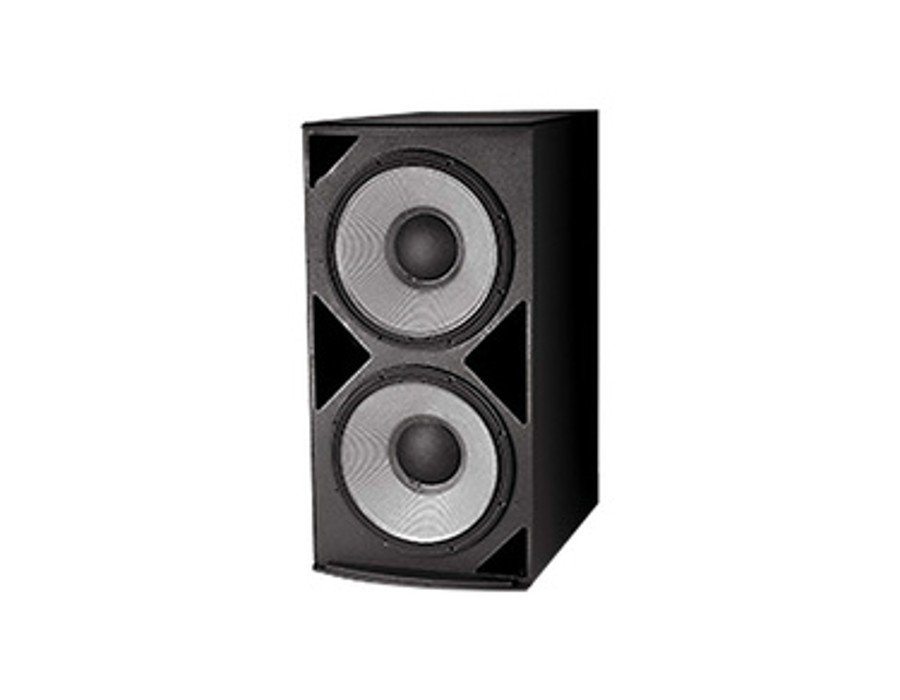

JBL ASB6128 High Power Subwoofer 2 x 18″ 2242H SVG™ Driver
ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration. ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.
Features
- Large vent area for high output.
- Parallel/Discrete Switchable.
- FIR Tuning Set Matches Phase Profile to Full-Range Models
- For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
SPECIFICATIONS
Frequency Range 28 Hz – 1 kHz (-10 dB)
Frequency Response 35 Hz – 1 kHz ( ± 3 dB)
Input Modes Drivers Parallel / Drivers Discrete
Transducer Power Rating (AES) 2400 W (9600 W peak), 2 hrs
Long-Term System
Power Rating (IEC) 1600 W (6400 W peak), 100 hrs
Maximum SPL 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak)
100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
System Sensitivity
(dB-SPL, 1W @ 1m) 30 Hz – 100 Hz: 102 dB
100 Hz – 500 Hz: 102 dB
(dB-SPL, 1W @ 1m) 30 Hz – 100 Hz: 102 dB
100 Hz – 500 Hz: 102 dB
Nominal Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
