JBL ASB6125

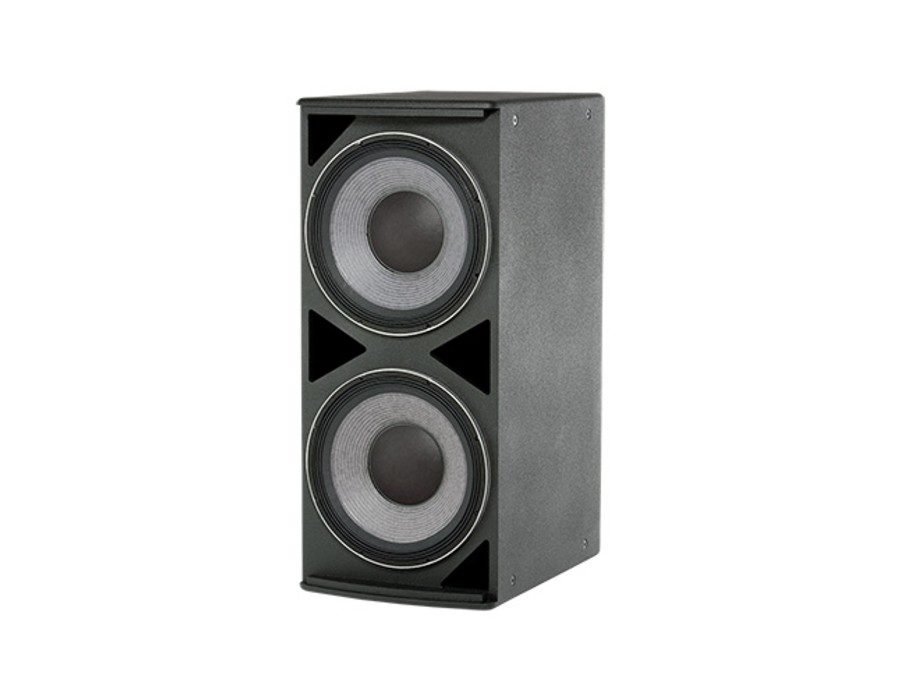

JBL ASB6125 High Power Dual 15″ Subwoofer
The ASB6125 is a high power, lightweight front-loaded vented subwoofer enclosure housing two JBL 2265H-1 Differential Drive® dual voice coil dual gap 15″ woofers. These woofers feature neodymium magnets and ultra robust cones for extra long life.
- 2 x 2265H-1 15″ Differential Drive® dual voice coil dual gap, neodymium magnet transducers
- 1600 watts continuous pink noise, 6400 watts peak power handling capacity
- Parallel/Discrete switchable input mode
- Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
Specifications
Frequency Range (-10dB) 32 Hz – 1 kHz
Frequency Response (±3 dB) 38 Hz – 1 kHz
Transducer Power Rating (AES) 1600 W (6400 W peak), 2 hrs
Input Modes Drivers Parallel / Drivers Discrete
System Power Rating 1350 W (5400 W peak), 100 hrs.
Maximum SPL (1m) 35 Hz – 400 Hz: 132 dB-SPL cont avg (138 dB peak)
System Sensitivity 35 Hz – 400 Hz: 100 dB-SPL, 1W (2.0V) @ 1m
Nominal Impedance 4 ohms in parallel-drive mode2 x 8 ohms in discrete-drive mode
LF Driver 2 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® drivers
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
