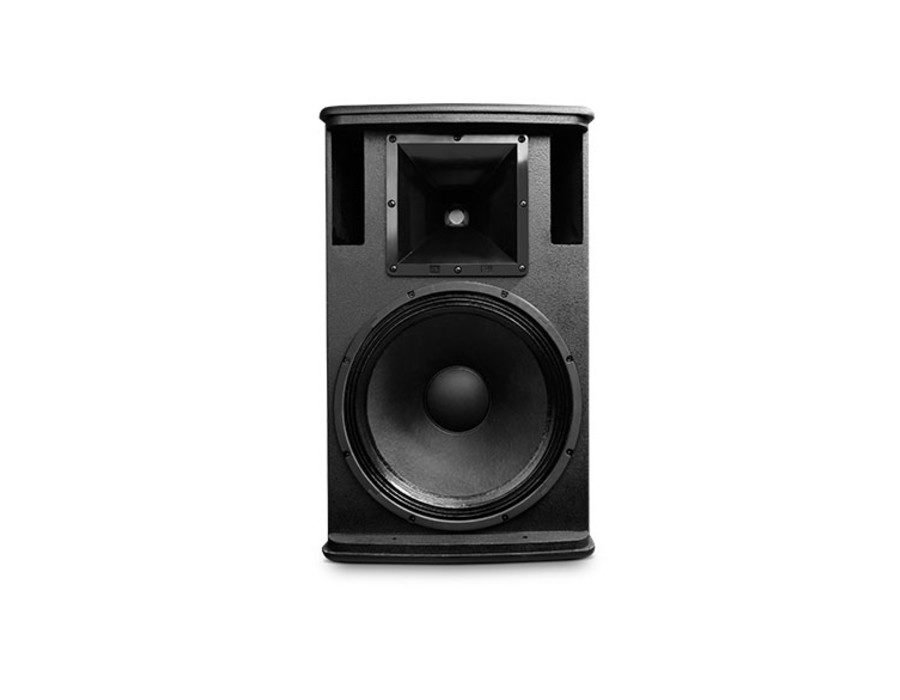

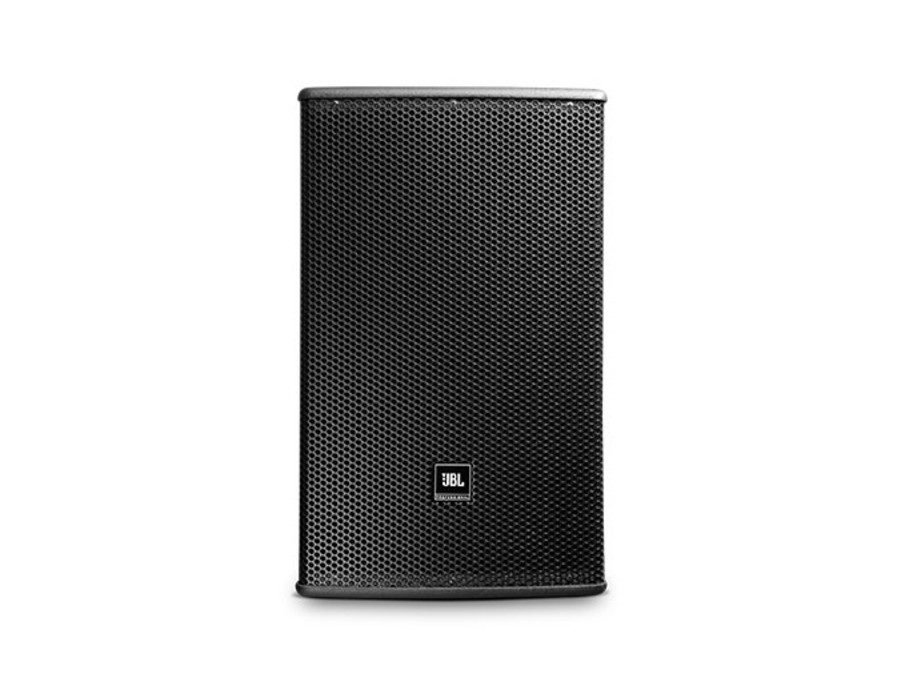

JBL AC566 Two-Way Full-Range Loudspeaker System with 1 x 15″ LF
AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC566 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
- Robust 15mm enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5″) diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Features
- Robust 15mm enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5″) diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Applications
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
SPECIFICATIONS
Frequency Range (-10 dB) 60 Hz – 20 kHz
Frequency Response (±3 dB) 75 Hz – 18 kHz
System Sensitivity (1w @ 1m) 98 dB
Nominal Impedance 8 ohms
Maximum SPL (1m) 122 dB (128 dB peak)
Power Rating
(Continuous/Program/Peak) 250 W/500 W/1000 W
(Continuous/Program/Peak) 250 W/500 W/1000 W
Coverage Pattern 60° x 60° (H x V)
Crossover 1.5 kHz
Low Frequency Driver 1 x 15″ woofer (P/N: 5053935), 384 mm (15 in) driver
with 66 mm (2.5 in) voice-coil
with 66 mm (2.5 in) voice-coil
High Frequency Driver 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 15 mm multi-ply hardwood plywood
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension / Mounting 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D) 680 mm x 420 mm x 445 mm
26.7 in x 16.5 in x 17.5 in
26.7 in x 16.5 in x 17.5 in
Net Weight 19.8 kg (43.6lbs)
