JBL AC299

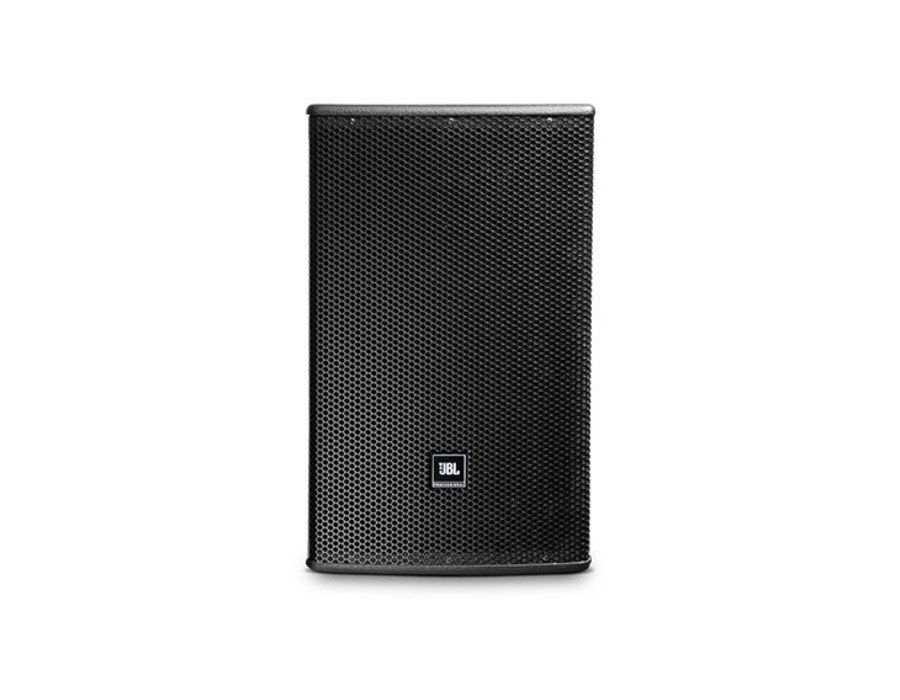

JBL AC299 Two-Way Full-Range Loudspeaker with 1 x 12″ LF

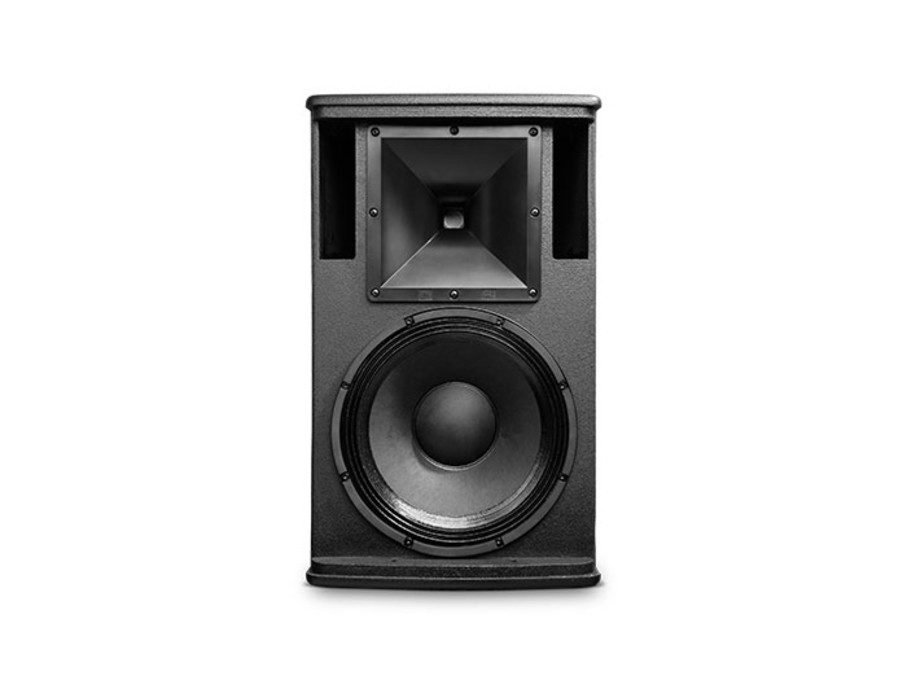

AC299 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC299 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
Specifications
Frequency Range (-10dB) 63 Hz – 20 kHz
Frequency Response (±3 dB) 80 Hz – 18 kHz
System Sensitivity (1w @ 1m) 97 dB
Nominal Impedance 8 ohms
Maximum SPL (1m) 121 dB (127 dB peak)
System Power Rating 350W (1400W peak), 2 hrs (AES rated)
250 W/500 W/1000 W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern 90° x 90° (H x V)
Crossover 1.5 kHz
LF Driver 1 x 12″ woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil
HF Driver 1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 15 mm multi-ply hardwood plywood
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D) 600 mm x 370 mm x 392 mm 23.6 in x 14.5 in x 15.4 in
Net Weight (each) 17.3 kg (38.1lbs)
Crossover Modes Passive
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms
- Robust 15mm enclosure with black textured finish
- 310 mm (12 in) LF transducer
- 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5″) voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Features
- Robust 15mm enclosure with black textured finish
- 310 mm (12 in) LF transducer
- 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5″) voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Applications
- Performing Spaces
- Clubs & Bars
- Houses of Worship
- Multi Media Spaces
- Retail & Hospitality Spaces
- Presentation Suites
- Educational Facilities
