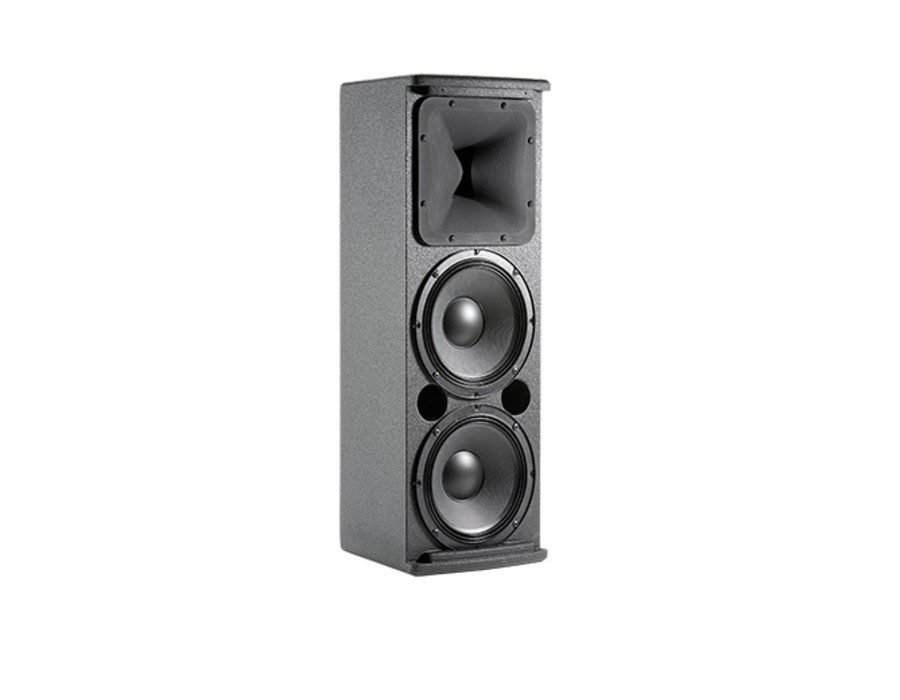

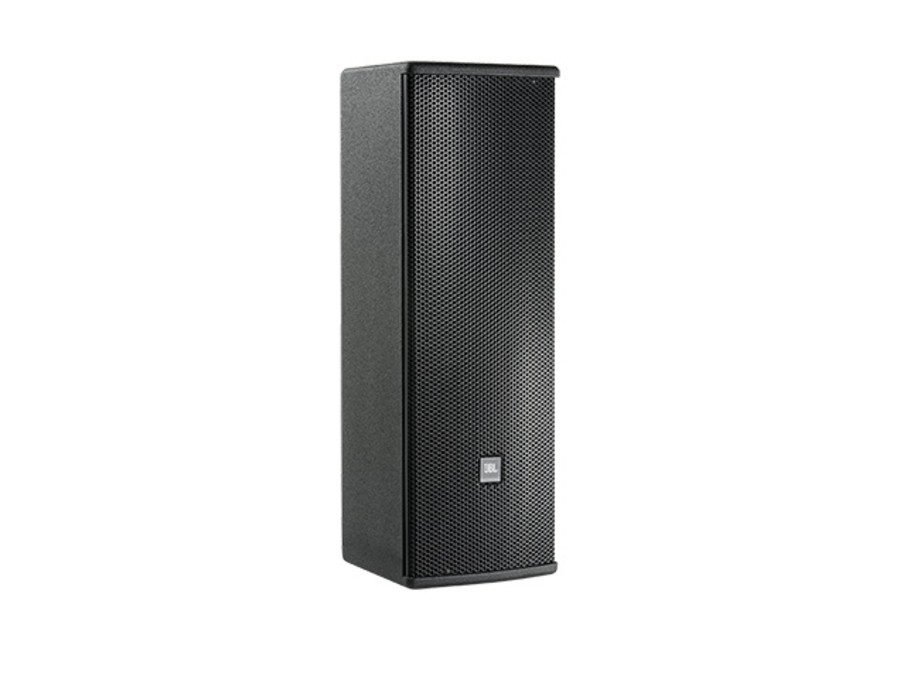

JBL AC28/95
JBL AC28/95 Compact 2-way Loudspeaker with 2 x 8” LF
High output, 2-way loudspeaker systems combining flexibility with high fidelity
The AC28/95 B (Black) from JBL is a 2-Way loudspeaker with dual 8″ LF drivers ideal for use in performing arts facilities, theatrical sound design, auditoriums, houses of worship, clubs, and themed entertainment venues. This speaker can handle up to 750W of program power and has a 1″ HF driver with field rotatable 90 x 50° Coverage PT Waveguide. Dual Neutrik NL4 connectors plus screw terminals make it simple to add this speaker to your system. The AC18/95 B has attachment points for the optional U-bracket or OmniMount.
- 1” Exit Compression Driver with PT™ Waveguide
- 205 mm (8 in) LF transducer
- Compact enclosure
- 750W Program
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
Frequency Range: (-10dB) 53 Hz – 20 kHz
Frequency Response: (±3 dB) 65 Hz – 20 kHz
System Power Rating: 700 W (AES rated)
375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated)
Impedance: 8 ohms
Coverage Pattern: /26: 120° x 60°/95: 90° x 50°
Dimensions (H x W x D): 679.5 x 237.5 x 254.0 mm (26.8 x 9.4 x 10.0 in)
Net Weight (each): 18.6 kg (40.9 lb)
Crossover Modes: Passive
Maximum SPL (1m): 120 dB
System Sensitivity (1w @ 1m): 94 dB SPL
LF Driver: 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance: 8 Ohms
HF Driver: 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment: 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M8 rear for MultiMount® MM-120-BT.
Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
